180 Return Bend




Sanitary 180° Return Bend

Sanitary 180 Return Bend is a 180 degree elbow to change the fluid direction in the process system . Sanitary butt weld 180 degree bend is made in stainless steel 304 and 316 or specified material, with the advantage of high purity surface and good corrosion resistance. Wellgreen offers sanitary 180° weld bend through 1/2″ to 8″, with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc.


Sanitary and Hygienic 180 Weld Bend – 180° Welding Eblow

Size 1/2″ thru 8″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard 3A, DIN, SMS, BS, ISO, BPF, ISO, IDF,INCH etc.
End Connection Butt-Welding
Surface Dull polished, Descaled finish, Mirror polished
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.
How to order
  • Products Name*Dimension
  • Material
  • Quantity
  • Standard
  • Polish requests



180 sanitary weld bend elbow

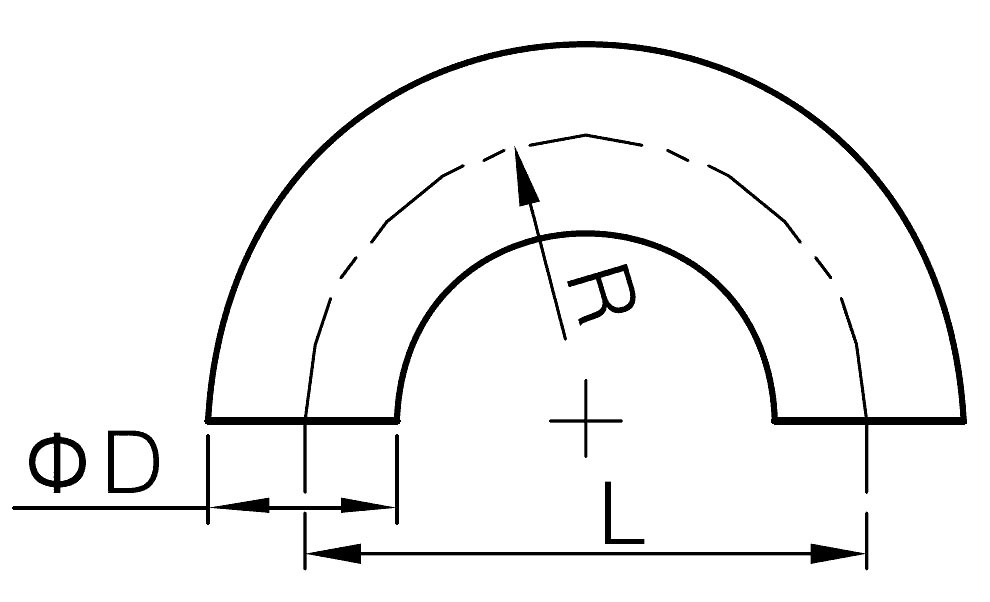

Dimension of Sanitary 180° Weld Bend – 3A Welding Elbow

Size D L R
1/2? 25.4 76.2 38.1
3/4? 38.1 114.3 57.2
2? 50.8 152.4 76.2
2 1/2? 63.5 190.5 95.3
3? 76.2 228.6 114.3
4? 101.6 304.8 152.4



Dimension of Sanitary 180° Welding Bend – DIN Welding Elbow

Size

D

L

R

DN15

18

70

35

DN20

22

80

40

DN25

28

100

50

DN32

34

110

55

DN40

40

120

60

DN50

52

140

70

DN65

70

160

80

DN80

85

180

90

DN100

104

200

100

*All dimensions are in mm except specified.

*For more information and specification about Sanitary Weld Fittings, please contact us here.
