Center Ring

Center ring belongs to a connecting part for a vacuum pipe fittings such as a pipe, a pump and a valve. When vacuum system applied, due to the difference of conditions, there is no uniform standard, so we must regulate what is the standard. The combination of the center ring can be used for the sealing connection of two identical series of flanges, and also can cooperate with the relevant series of clamps in the outside to achieve the function of sealing and quick disassembly.

  • Center Ring
  • Centering Ring with O’Ring
  • Centering Ring with Outer Ring & O’Ring
  • Centering Ring with Circlip Outer Ring & O’Ring
  • KF Centering Ring Adapter-O’Ring
  • OZ Center Ring with Outer Ring & O’Ring

Features:

  • 1. Standard materials:
    • Centering Ring: 304 stainless steel. Other materials available upon request.
    • O’ring: Viton. Other materials available upon request.
    • Outer Ring: Aluminum. Other materials available upon request.
  • 2. Seal Temperature Range:
    • Fluorocarbon FKM (Viton): Celsius -5 to 204( Fahrenheit23 to 399)
    • Silicon: Celsius -50 to 180( Fahrenheit-58  to 356)
    • Buna-N (NBR): Celsius  -25 to 121( Fahrenheit -13 to 250)

Applications:

  • 1. Vacuum Seal

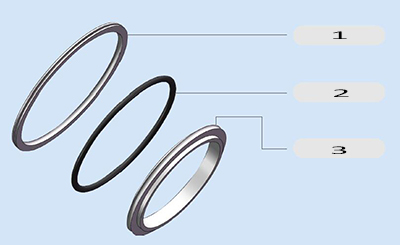

    c-ring-parts

    1. OUTER RING 2. O-RING 3. CENTERING RING

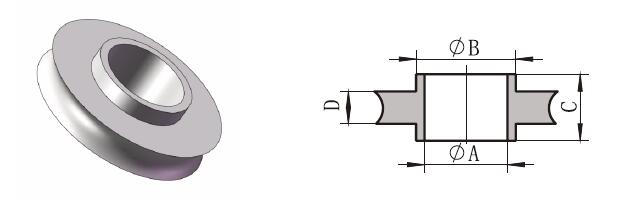

KF Centering Ring

KF Centering Ring

Flange
Size

Tube
Size

Dimensions, in. (mm)

A

B

C

D

KF10

1/2″

0.39″ (10.0)

0.47″ (12.0)

0.31″ (8.0)

0.15″ (3.9)

KF16

3/4″

0.63″ (16.0)

0.67″ (17.0)

0.31″ (8.0)

0.15″ (3.9)

KF25

1″

0.98″ (25.0)

1.02″ (26.0)

0.31″ (8.0)

0.15″ (3.9)

KF40

1 1/2″

1.57″ (40.0)

1.61″ (41.0)

0.31″ (8.0)

0.15″ (3.9)

KF50

2″

1.97″ (50.0)

2.05” (52.0)

0.31″ (8.0)

0.15” (3.9)


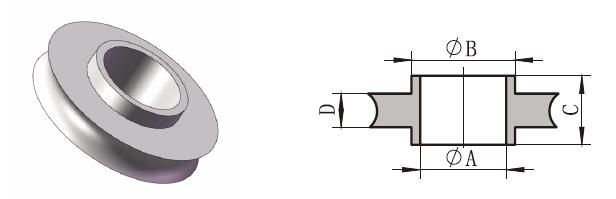

ISO Centering Ring

ISO Centering Ring

Flange
Size

Tube
Size

Dimensions, in. (mm)

A

B

C

D

ISO63

2 1/2″

2.64″ (67.0)

2.74″ (69.6)

0.31″ (8.0)

0.15″ (3.9)

ISO80

3″

3.15″ (80.0)

3.25″ (82.6)

0.31″ (8.0)

0.15″ (3.9)

ISO100

4″

3.90″ (99.0)

4.00″ (101.6)

0.31″ (8.0)

0.15″ (3.9)

ISO160

6″

5.91″ (150.0)

6.01″ (152.6)

0.31″ (8.0)

0.15″ (3.9)

ISO200

8″

8.27″ (210.0)

8.37″ (212.6)

0.31″ (8.0)

0.15″ (3.9)

ISO250

10″

10.14″ (257.5)

10.25″ (260.4)

0.31″ (8.0)

0.15″ (3.9)

ISO320

12″

12.28″ (312.0)

12.49″ (317.3)

0.47″ (12.0)

0.22″ (5.6)

ISO400

16″

15.51″ (394.0)

17.75″ (400.0)

0.47″ (12.0)

0.22″ (5.6)

ISO500

20″

19.45″ (494.0)

19.72″ (501.0)

0.47″ (12.0)

0.22″ (5.6)

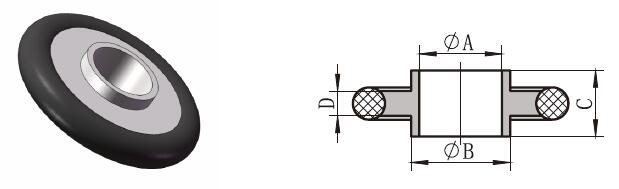

KF Centering Ring With O-Ring

KF Centering Ring With O-Ring

Flange
Size

Tube
Size

Dimensions, in. (mm)

A

B

C

D

KF10

1/2″

0.39″ (10.0)

0.47″ (12.0)

0.31″ (8.0)

0.15″ (3.9)

KF16

3/4″

0.63″ (16.0)

0.67″ (17.0)

0.31″ (8.0)

0.15″ (3.9)

KF25

1″

0.98″ (25.0)

1.02″ (26.0)

0.31″ (8.0)

0.15″ (3.9)

KF40

1 1/2″

1.57″ (40.0)

1.61″ (41.0)

0.31″ (8.0)

0.15″ (3.9)

KF50

2″

1.97″ (50.0)

2.05″ (52.0)

0.31″ (8.0)

0.15″ (3.9)

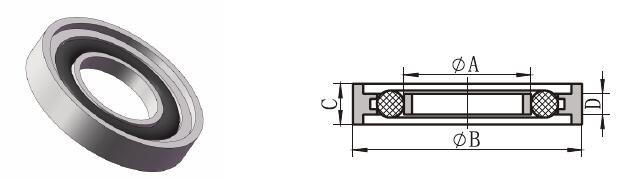

Centering Ring With O-Ring and Outer Ring

Centering Ring With O-Ring and Outer Ring

Flange
Size

Tube
Size

Dimensions, in. (mm)

A

B

C

D

KF16

3/4″

0.63″ (16.0)

1.26″ (32.0)

0.31″ (8.0)

0.16″ (4.0)

KF25

1″

0.98″ (25.0)

1.65″ (41.8)

0.31″ (8.0)

0.16″ (4.0)

KF40

1 1/2″

1.57″ (40.0)

2.22″ (56.5)

0.31″ (8.0)

0.16″ (4.0)

KF50

2″

1.97″ (50.0)

3.02″ (76.6)

0.31″ (8.0)

0.16″ (4.0)


*For more information of center ring, please feel free to contact us.
