I-Line Elbow Fitting






I-line Elbow Fitting

I-line Elbow Fitting is made in stainless steel 304 and 316L, with male and female connection. I line elbow fittings has the advantages of bearing high pressure, shock resistance, high temperature resistance, and maintenance easily etc. Wellgreen sanitary is ability to supplying qualified sanitary Fittings comply to your condition and FDA,GMP requirement.




I-line Elbow Fittings – Sanitary I-Line Fittings – Stainless Steel Tube Fittings

Product I-Line Elbow Fittings
Size 1″ thru 8″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard I-Line, 3A
End Connection Tri-clamp, Threaded etc.
Surface Descaled finish, Mirror polished.
Gasket PTFE, EPDM, Buna-N, Silicone seals etc.
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic, water treatment etc.
How to order *Part Name*Dimension

*Material

*Quantity

*Polish requests for OD/ID



I-line Elbow fittings

 Dimension of I-Line Fittings – 90° Elbow – Both End Female – Sanitary Fittings

Size

A

1″

2

1 1/2″

2 4/8

2″

3 3/4

2 1/2″

4 27/32

3″

5 7/8

4″

8 1/16

6″

10 1/8

I-line Elbow fittings

Dimension of I-Line Fittings – 90° Elbow – One End Male Other End Female – Sanitary Fittings

Size

A

B

1″

2

1 13/16

1 1/2″

2 7/8

2 11/16

2″

3 3/4

3 15/32

2 1/2″

4 27/32

4 17/32

3″

5 7/8

5 9/16

4″

8 1/16

7 3/4

6″

10 1/8

9 13/16

I-line Elbow fittings

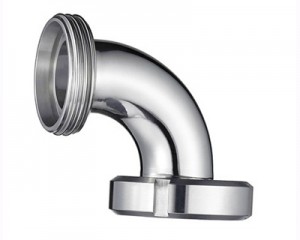

Dimension of I-Line Fittings – 90° Elbow – Both End Male – Sanitary Fittings

Size

A

1″

1 13/16

1 1/2″

2 11/16

2″

3 15/32

2 1/2″

4 17/32

3″

5 9/16

4″

7 3/4

6″

9 13/16

I-line Elbow fittings

 Dimension of I-Line Fittings – 45° Elbow – Both End Female – Sanitary Fittings

Size

A

1″

15/16

1 1/2″

1 23/32

2″

2 1/8

2 1/2″

2 5/8

3″

3 1/8

4″

4 1/4

6″

4 7/8

I-line Elbow fittings

Dimension of I-Line Fittings – 45° Elbow – One End Male Other End Female- Sanitary Fittings

Size

A

B

1″

1 5/16

1 1/8

1 1/2″

1 23/32

1 17/32

2″

2 1/8

1 7/8

2 1/2″

2 5/8

2 5/16

3″

3 1/8

3 1/8

4″

4 1/4

3 15/16

6″

4 7/8

4 9/16

*8″ is available on special request, pls contact us for the information in details.

*All dimension are in inch.

*For more information and specification about I-Line Fittings, please contact us here.
