I-Line Tee Fittings






I-line Tee Fittings

I-line Tee Fittings is female/male connected tee fittings, which made in stainless steel 304 and 316L, and size from 1″ to 8″.  I-line tee fittings has the advantages of bearing high pressure, shock resistance, high temperature resistance, and maintenance easily etc. Wellgreen sanitary fittings is ability to supplying qualified hygienic I-line Fittings comply to your requirement and FDA, GMP conditions.


I-line Tee Fittings – Sanitary I-Line Female Fittings

– Stainless Steel Tube Fittings

Product I-Line Tee Fittings and Cross Fittings
Size 1″ thru 8″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard I-Line, 3A
End Connection Tri-clamp, Threaded etc.
Surface Descaled finish, Mirror polished.
Gasket PTFE, EPDM, Buna-N, Silicone etc.
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic, water treatment etc.
How to order *Part Name

*Dimension

*Material

*Quantity

*Polish requests for OD/ID



I-line tee fittings

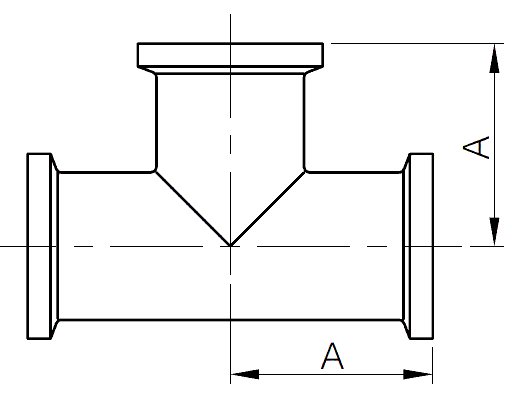

 Dimension of I-Line Fittings – Tee – All Ends Female – Sanitary Fittings

Size A
1? 1 13/16
1 1/2? 2 3/8
2? 2 25/32
2 1/2” 2 3/16
3” 3 1/2
4” 4 21/32
6” 6 3/4



I-line cross fittings

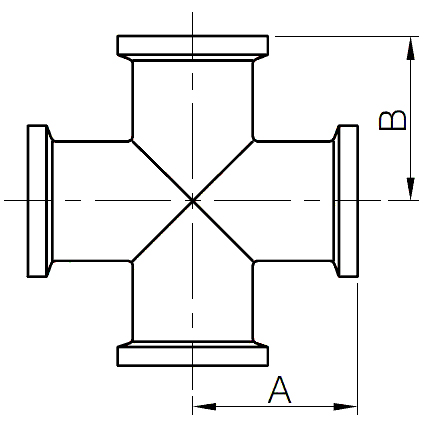

Dimension of I-Line Fittings – Cross – All Ends Female – Sanitary Fittings

Size A
1” 1 13/16
1 1/2″ 2 3/8
2″ 2 25/32
2 1/2″ 2 3/16
3″ 3 1/2
4″ 4 21/32
6″ 6 3/4



I-line tee fittings

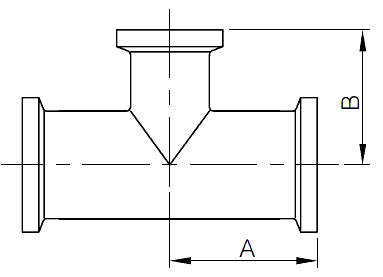

Dimension of I-Line Fittings – Reducing Tee – All Ends Female – Sanitary Fittings

Size A B
1  1/2”-1” 2 9/16 2 29/32
2″-1″ 3 3/32 3 7/32
2″-1 1/2″ 3 3/32 3 17/32
2 1/2″-1 1/2″ 3 15/32 3 23/32
2 1/2″-2″ 3 15/32 4 9/32
3″-2″ 3 25/32 4 1/16
3″-2 1/2″ 3 25/32 4 13/32
4″-2 1/2″ 4 25/32 4 27/32
4″-3″ 4 25/32 5 1/16



I-line tee fittings

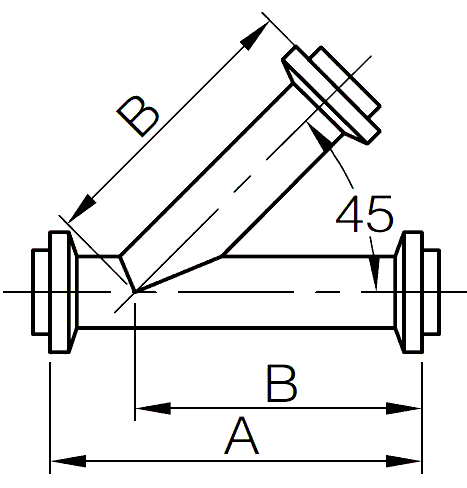

Dimension of I-Line Fittings – Lateral Tee – All Ends Male – Sanitary Fittings

Size A B
1″ 7 9/16 5 23/32
1 1/2″ 9 1/4 7 1/8
2″ 10 11/16 8 5/32
2 1/2″ 12 7/16 9 21/32
3″ 13 3/16 10 3/32
4″ 15 1/2 1 23/32
6″ 19 1/8 15 5/8



I-line tee fittings

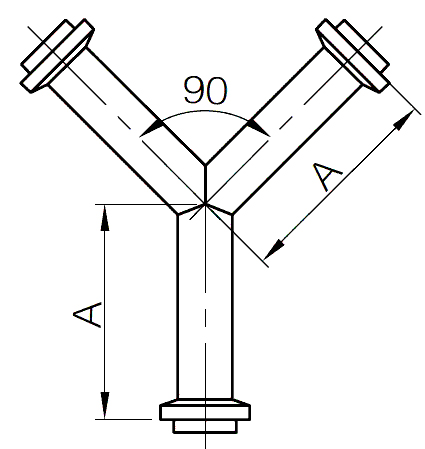

Dimension of I-Line Fittings – True Tee – All Ends Male – Sanitary Fittings

Size A
1″ 3 25/32
1 1/2″ 3 15/16
2″ 5 1/32
2 1/2″ 5 5/32
3″ 7 7/32
4″ 9 11/32
6″ 9 1/8

* 8″ is available on special request. For more information about I-Line Sanitary Fittings, please contact us here.

*All dimension are in inch.
