Round Pipe Hanger




Round Pipe Hanger

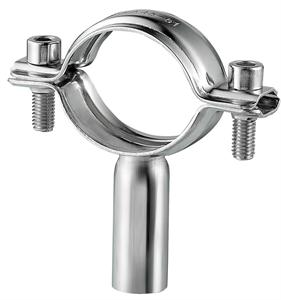

Round Pipe Hanger is a structure of pipe holder – the tubing support system for the hygienic industries. Our Pipe Hangers are made in stainless steel 304 and 316 or specified material, with many different design and every dimension from 1″ to 12″. The round pipe hanger is good surface of 25 Ra or better based on your requirement, it could be fabricated as per client’s sample and drawing.




Round Pipe Hanger – Tubing Holder – Stainless Steel 304/316

Size 1/2″ thru 12″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard 3A, DIN, SMS, ISO, IDF,INCH etc.
Surface Unpolished / Polished on request.
Gasket PTFE, EPDM, Buna-N, Silicone Gasket
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.
How to order *Products Name*Dimension*Material

*Quantity

*Standard

*Polish requests



sanitary Tubing Holder Pipe Hanger

Dimension of Round Pipe Hanger – Tubing Holder W2024

Size A D
1” 61.0 25.4
1 1/4” 64.0 31.8
1 1/2” 67.0 38.1
2” 74.0 50.8
2 1/2” 80.0 63.5
3” 86.0 76.2
3 1/2” 93.0 89.0
4” 100.0 101.6
4 1/4” 102.0 108.0
4 1/2” 105.0 114.0
5” 115.0 133.0
6” 128.0 159.0



sanitary Tubing Holder Pipe Hanger

Dimension of Round Pipe Hanger – Tubing Holder W2030

Size A H
1” 66.0 25.4
1 1/2” 76.0 38.1
2” 90.0 50.6
2 1/2” 105.0 63.5
3” 120.0 76.3
4” 146.0 101.6

* For more information and specification about Pipe Hangers, please contact us here.
