Sanitary 2 PCS Ball Valve

Sanitary 2 PCS Ball Valve is 2 splitted valve bodies design sanitary ball valve, it is a commonly valve type. 2 PCS ball valve is made in stainless steel 1.4301, 1.4404 or T316L, T304 ete of DIN, SMS standards etc. The valve body is investment casting, and connected end can be tri-clamp, welded, threaded, and flanged. Wellgreen sanitary provides a wide range of sanitary valves for  food processing, beverages, fruit juices, wine, biopharmaceutical etc.

Strength:

  • Stainless steel T316L, T304, 1.4301, 1.4404 or specified.
  • Variety connection of tri-clamp, welded, threaded, flanged etc.
  • Surface finishing: External surface sand blasting, Internal surface Ra0.6?m.
  • Process controller,valve positioning etc on request.
  • Gasket materials complies with FDA 177.2600.
  • Standard of 3A,DIN,SMS,ISO,IDF,BPE,RJT etc.

Application:

Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.




Sanitary Two Piece Ball Valves Specification

PRODUCT Sanitary Two Piece Ball Valve, 2 pcs ball valve
DIMENSION 1/2″ ~ 4″
MATERIAL T304, T316L, 1.4301, 1.4404 etc.
STANDARD 3A,DIN,SMS,ISO,IDF,BPE,RJT etc.
SEALING GASKET PTFE, TFM etc.
TEMPERATURE -30°C / -22°F up to +200°C/ +392°F
Pressure 10-30bar (based on seal material and temperature)
Operation Manual, Pneumatic, Electric
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size *Material *Quantity *Standard

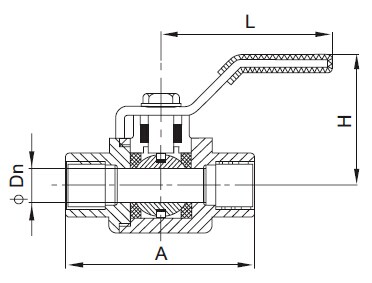

two-Piece Ball Valve-sanitary 2pcs valve

Dimension of  Sanitary Two-Piece Ball Valve – 2 PCS Ball Valve

Size

A

Dn

H

L

1/2″

65.0

15.0

60.0

130.0

3/4″

75.0

20.0

64.0

130.0

1″

88.0

25.0

71.0

165.0

11/4″

102.0

32.0

78.0

165.0

11/2″

110.0

38.0

86.0

190.0

2″

125.0

50.0

95.0

190.0

21/2″

162.0

65.0

130.0

250.0

3″

189.0

80.0

148.0

250.0

4″

260.0

100.0

180.0

280.0

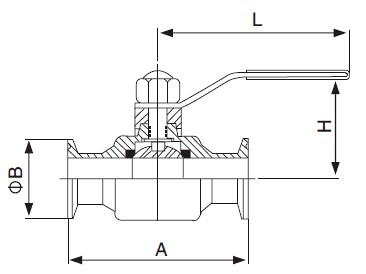

Sanitary Clamped Two-Piece Ball Valve- 2pcs valve

Dimension of  Sanitary Clamped Two-Piece Ball Valve – 2 PCS Ball Valve

Size

A

B

H

L

3/4″

19

95.0

50.5

55.0

105.0

1″

25

115.0

50.5

55.0

105.0

11/4″

32

120.0

50.5

65.0

130.0

11/2″

38

140.0

50.5

65.0

150.0

2″

51

165.0

64.0

85.0

160.0

* If you couldn’t find your dimension of sanitary two piece ball valve here, please contact us here for more information.
