Sanitary Clamp Cross






Sanitary Clamp Cross

Sanitary Clamp Cross Fittings are tri-clamp connected cross fittings, use of high purity sanitary gasket to seal. Sanitary clamp cross is a joint of piping which has four outlets to disperse the fluid in the process system. Wellgreen sanitary clamp cross are made in stainless steel 304 and 316 or specified grade, with the advantage of high purity surface to meet hygienic requirment. Wellgreen offers sanitary fittings through 1/2″ to 12″, with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc.


Sanitary Stainless Steel Hygienic Clamp Cross Fittings

Size 1/2″ thru 12″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard 3A, DIN, SMS, BS, ISO, BPF, ISO, IDF,INCH etc.
End Connection Tri-Clamped
Surface Dull polished, Descaled finish, Mirror polished
Gasket PTFE, EPDM, Buna-N, Silicone Gasket
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.
How to order
  • Products Name
  • Dimension
  • Material
  • Quantity
  • Standard
  • Polish requests

sanitary clamp cross

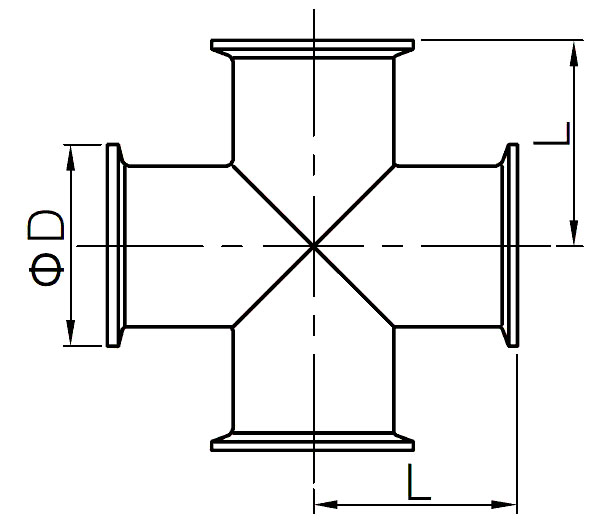

Dimension of Sanitary Clamp Cross – DIN W1058

Size

D

L

DN10

34

44

DN15

34

53

DN20

34

58

DN25

50.5

71.5

DN32

50.5

76.5

DN40

50.5

81.5

DN50

64

91.5

DN65

91

108

DN80

106

118

DN100

119

128

DN125

144.5

225

DN150

167

263

*All dimensions are in mm except specified. *For more information and specification about Sanitary Clamp Fittings, please contact us here.
