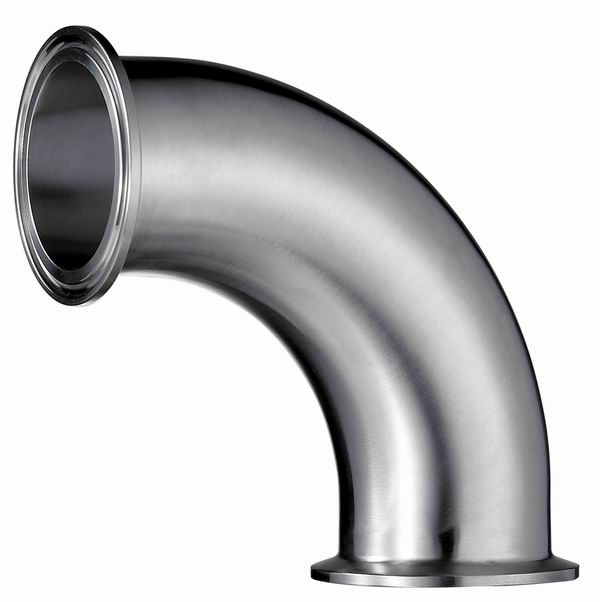

Sanitary Clamp Elbow






Sanitary Clamp Elbow

Sanitary Clamp Fittings are connected by coupling clamp, use of high purity sanitary gasket to seal. The fittings are with good performance and low cost, it is most popular caused fast installation, easy assembly and unassembly in the process lines and equipment. Sanitary Clamp Elbow includes 90° and 45°, made in material 304 and 316 or specified grade, with the advantage of high purity surface and corrosion resistance. Wellgreen offers sanitary welding fittings through 1/2″ to 12″, with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc.


Sanitary and Hygienic Clamp Elbow – 90° and 45°
Size 1/2″ thru 12″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard 3A, DIN, SMS, BS, ISO, BPF, ISO, IDF,INCH etc.
End Connection Tri-Clamped
Surface Dull polished, Descaled finish, Mirror polished
Gasket PTFE, EPDM, Buna-N, Silicone Gasket
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.
How to order *Products Name*Dimension*Material*Quantity

*Standard

*Polish requests



sanitary clamp elbow

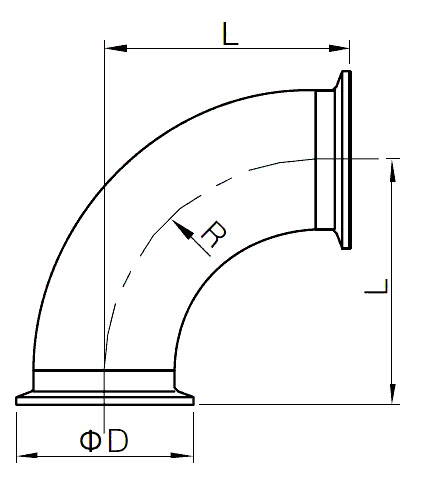

Dimension of Sanitary Clamp Elbow – 90° – DIN

Size

D

L

R

DN10

34

44

26

DN15

34

53

35

DN20

34

58

40

DN25

50.5

71.5

50

DN32

50.5

76.5

55

DN40

50.5

81.5

60

DN50

64

91.5

70

DN65

91

108

80

DN80

106

118

90

DN100

119

128

100

DN125

144.5

225

187

DN150

167

263

225

DN200

217.5

338

300



sanitary clamp elbow

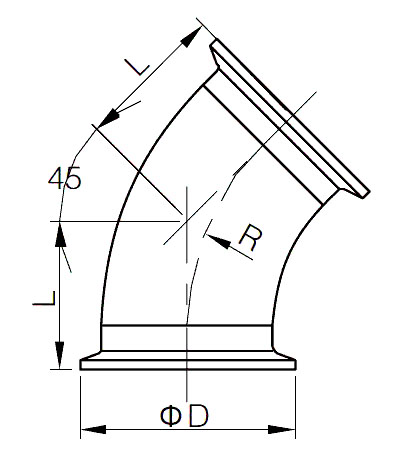

Dimension of Sanitary Clamp Elbow – 45° – DIN

Size

D

L

R

DN10

34

28.7

26

DN15

34

32.5

35

DN20

34

34.5

40

DN25

50.5

42.2

50

DN32

50.5

44.3

55

DN40

50.5

46.3

60

DN50

64

50.5

70

DN65

91

61.2

80

DN80

106

65.3

90

DN100

119

69.5

100

DN125

144.5

115.5

187

DN150

167

131.2

225

*All dimensions are in mm except specified.
