Sanitary ISO Union Fittings




Sanitary ISO Union Fittings

Sanitary ISO Union Fittings is a standard series sanitary union fittings which applicable for hygienic industries. It is the same dimension as sanitary IDF union fittings, and consists of a nut, a welding male, a welding liner and a gasket. The material we offer is 304, 316L stainless steel or specified higher grade. All of our ISO sanitary union fittings meets the high purity requirement of the industries Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech etc.




ISO Union Fittings- Sanitary Stainless Steel Hygienic Fittings

PARTS Sanitary ISO Union consist of :

  • hexagonal nut
  • blank nut
  • welding male
  • welding liner
  • gasket seals
DIMENSION 1″ thru 4″
MATERIAL T304, T316L, EN 1.4301, EN 1.4404 etc.
STANDARD ISO2852 ,ISO1127
SEALING GASKET Silicone, EPDM, PTFE, Buna-N etc.
TEMPERATURE -30°C / -22°F up to +120°C/ +248°F
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size *Material *Quantity *Standard *Surface Finish

sanitary iso union

Dimension of Sanitary ISO Union Fittings- Hexagon Nut

Size

D

TACME

H

1″

53.1

38.3 X 8

30

1 1/2″

69.3

51.8 X 8

30

2″

86.6

65.3 X 8

30

2  1/2″

103.9

78.8 X 8

30

3″

121.2

92.3 X 8

30

4″(ISO)

155.9

119.4 X 8

35

4″(IDF)

165.1

127.2 X 6

35

sanitary iso union

Dimension of Sanitary ISO Union Fittings – Welding Liner

Size

D

D1

H

ISO

IDF

1″

25.6

25.4

33.8

21.5

1 1/2″

38.6

38.1

47

21.5

2″

51.6

50.8

60.5

21.5

2 1/2″

64.1

63.5

74

21.5

3″

76.7

76.2

87.5

21.5

4″(ISO)

102.5

114.4

21.5

4″(IDF)

101.6

120.6

30

sanitary iso union

Dimension of Sanitary ISO Union Fittings – Welding Male

Size

D

TACME

H

ISO

IDF

1″

25.6

25.4

37.13 X 8

21.5

1 1/2″

38.6

38.1

50.65 X 8

21.5

2″

51.6

50.8

64.16 X 8

21.5

2 1/2″

64.1

63.5

77.7 X 8

21.5

3″

76.7

76.2

91.2 X 8

21.5

4″(ISO)

102.5

118.4 X 8

21.5

4″(IDF)

101.6

125.9 X 6

30

sanitary iso union

Dimension of Sanitary ISO Union Fittings – Blank Nut

Size

D

TACME

H

1″

48

38.3 X 8

30

1 1/2″

62

51.8 X 8

30

2″

76

65.3 X 8

30

2 1/2″

90

78.8 X 8

30

3″

103

92.3 X 8

30

4″(ISO)

133

119.4 X 8

35

4″(IDF)

142

127.2 X 6

35

sanitary iso union

Dimension of Sanitary ISO Union Fittings – Blank Liner

Size

D

D1

H

1″

29.5

33.8

11

1 1/2″

42.5

47

11

2″

56

60.5

11

2 1/2″

70

74

11

3″

82.3

87.5

11

4″(ISO)

109

114.1

11

4″(IDF)

111

120.6

11

sanitary iso union

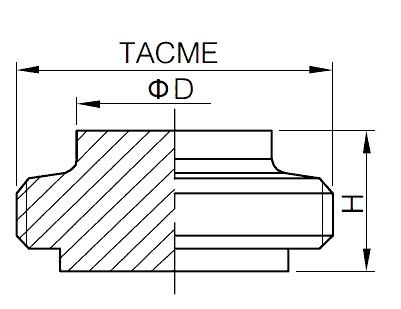

Dimension of Sanitary ISO Union Fittings – Blank Male

Size

D

TACME

H

ISO

IDF

1″

25.6

25.4

37.13 X 8

21.5

1 1/2″

38.6

38.1

50.65 X 8

21.5

2″

51.6

50.8

64.16 X 8

21.5

2 1/2″

64.1

63.5

77.7 X 8

21.5

3″

76.7

76.2

91.2 X 8

21.5

4″(ISO)

102.5

118.4 X 8

21.5

4″(IDF)

101.6

125.9 X 8

30

*All dimension are in mm except specified.

* For more information about Sanitary ISO Union Fittings, please contact us when you feel free.
