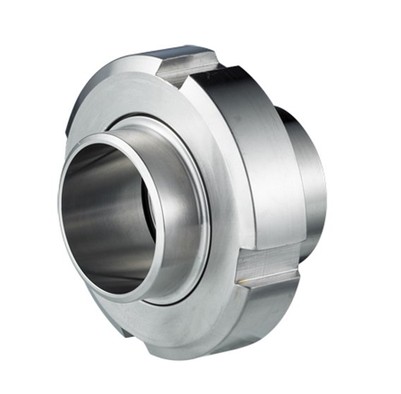

Sanitary SMS Union consist of a union nut, a welding male, a welding liner and a gasket. It is very popular in sanitary process system. SMS union and parts are forged in stainless steel 1.4301 and 1.4404, and machined by CNC to make sure getting high purity surface and good precision, meet the cleanliness of the industries Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech etc.








Sanitary SMS Union – Sanitary Union – Stainless Steel Sanitary and Hygienic Fittings
PRODUCT Sanitary SMS Unions – round slotted nut, blank liner, welding male, welding liner, expanding male, expanding liner, gasket etc.
DIMENSION 1″ thru 4″
MATERIAL T304, T316L, EN 1.4301, EN 1.4404 etc.
STANDARD SMS
SEALING GASKET Silicone, EPDM, PTFE, Buna-N etc.
TEMPERATURE -30°C / -22°F up to +120°C/ +248°F
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name

*Size

*Material

*Quantity

*Standard

*Surface Finish



sanitary sms union

Dimension of Sanitary SMS Union – Round Slotted Nut – Sanitary Fitting

Size

A

C

E

G

1″

32.5

51

RD40*1/6

19

11/4″

40.3

60

RD48*1/6

22

11/2″

48.5

74

RD60*1/6

23

2″

61

84

RD70*1/6

24

21/2″

74

100

RD85*1/6

28

3″

87

114

RD98*1/6

30

4″

113

138

RD125*1/4

31



sanitary sms union

Dimension of Sanitary SMS Union – Round Slotted Nut-W – Sanitary Fitting

Size

B

D

E

G

1″

RD40*1/6

51

32.3

20

11/4″

RD48*1/6

60

40.0

22

11/2″

RD60*1/6

74

48.5

25

2″

RD70*1/6

84

61.0

26

21/2″

RD85*1/6

100

74.0

30

3″

RD98*1/6

114

87.0

32

4″

RD132*1/6

154

117

45



sanitary SMS union

Dimension of Sanitary SMS Union -Blank Nut – Sanitary Fitting

Size

A

B

D

E

1″

36.3

RD40*1/6

51

19

11/2″

56.3

RD60*1/6

74

23

2″

66.3

RD70*1/6

84

24

21/2″

81.3

RD85*1/6

100

28

3″

94.3

RD98*1/6

114

30

4″

120

RD125*1/4

138

31



sanitary SMS union

Dimension of Sanitary SMS Union -SMS Welding Liner- Sanitary Fitting

Size

A

B

C

E

1″

35.5

22.5

25

15.5

11/4″

43.3

29.3

32

16

11/2″

55

35.5

38

16

2″

65

48.5

51

17

21/2″

80

60.5

63.5

17

3″

93

72.9

76.1

19

4″

118

100.0

104

19

101.6

118

97.6

101.6

19



sanitary SMS union

Dimension of Sanitary SMS Union -SMS Long Welding Liner-G – Sanitary Fitting

Size

A

B

C

E

1″

35.5

22.5

25

15.5

11/2″

55

35.5

38

20

2″

65

48.5

51

20

21/2″

80

60.5

63.5

24

3″

93

72.8

76.1

24

4″

118

100

104

30

101.6

118

97.6

101.6

30



sanitary sms union

Dimension of Sanitary SMS Union -SMS Expanding Liner – Sanitary Fitting

SIZE

A

C

D

E

1″

32

25.2

35.5

17

11/4″

39.5

32.1

43.5

17

11/2″

48

38.2

55

20

2″

60.4

51.2

65

20

21/2″

73.5

63.7

80

25

3″

86.5

76.2

93

30

4″

112.5

101.8

118

27



sanitary sms union

Dimension of Sanitary SMS Union -SMS Weld Liner-W – Sanitary Fitting

SIZE

A

B

C

D

1″

35.5

25.0

22.6

7.5

11/4″

43.5

32.0

29.6

8.0

11/2″

55.0

38.0

35.6

9.0

2″

65.0

51.0

48.6

9.0

21/2″

80.0

63.5

60.3

9.0

3″

93.0

76.1

72.9

10.0

4″

127.0

101.6

97.6

12.0



sanitary sms union

Dimension of Sanitary SMS Union -SMS Blank Liner- Sanitary Fitting

Size

A

B

C

1″

32

35.5

7.5

11/2″

47.9

55

8

2″

60.4

65

9

21/2″

73.5

80

9

3″

86.5

93

11

4″

112.5

118

11



sanitary sms union

Dimension of Sanitary SMS Union -SMS Welding Male- Sanitary Fitting

Size

A

B

F

G

1″

25

22.5

RD40*1/6

19

11/4″

32

29.3

RD48*1/6

20

11/2″

38

35.5

RD60*1/6

23

2″

51

48.5

RD70*1/6

23

21/2″

63.5

60.5

RD85*1/6

27

3″

76.1

72.9

RD98*1/6

27

4″

104

100

RD125*1/4

30

101.6

101.6

97.6

RD125*1/4

30



sanitary sms union

Dimension of Sanitary SMS Union -SMS Welding Male-S – Sanitary Fitting

Size

A

B

F

G

1″

22.5

25

RD40*1/6

19

11/2″

35.5

38

RD60*1/6

23

2″

48.5

51

RD70*1/6

23

21/2″

60.5

63.5

RD85*1/6

24

3″

72.5

76

RD98*1/6

24

4″

100

104

RD125*1/4

28



sanitary sms union

Dimension of Sanitary SMS Union -SMS Expanding Male – Sanitary Fitting

Size

A

C

F

K

1″

32

25.2

RD40*1/6

20

11/2″

47.9

38.2

RD60*1/6

23

2″

60.4

51.2

RD70*1/6

25

21/2″

73.5

63.7

RD85*1/6

30

3″

86.5

76.2

RD98*1/6

30

4″

112.5

101.8

RD125*1/4

30



sanitary sms union

Dimension of Sanitary SMS Union -SMS Welding Male-W – Sanitary Fitting

Size

A

B

F

G

25

25.0

22.6

RD40*1/6

15

32

32.0

29.6

RD48*1/6

17

38

38.0

35.6

RD60*1/6

20

51

51.0

48.6

RD70*1/6

20

63

63.5

60.3

RD85*1/6

24

76

76.1

72.9

RD98*1/6

24

104

101.6

97.6

RD132*1/6

35

*All dimension are in mm except specified.
