Sanitary Threaded x Nut Butterfly Valve is one end threaded, one end nut sanitary butterfly valves. we manufacture and supply it from 1/2″ to 6″ in stainless steel T304, T316L etc. Sanitary threaded x nut butterfly valve is comply with 3A, IDF, SMS, DIN, ISO, DS, RJT standards, with excellent precision and high purity surface, it’s a commonly and widely used butterfly valve for hygienic industries. Wellgreen provides quality sanitary valves for your hygienic solutions.



Features:

  • Forged valve body – stainless steel T304, T316L.
  • Simple and robust design.
  • Low pressure losing.
  • Renewable design of valve body.
  • Every connection of flanged, butt welded, tri-clamp, threaded etc.
  • Different series of DIN, 3A, SMS, ISO, IDF, RJT, DS on request.
  • Electric actuator brand on request.
  • Sealing materials conform to FDA 177.2600.

Applicaiton:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage,Biotech ,Cosmetics etc.




Sanitary Threaded x Nut Butterfly Valve -din

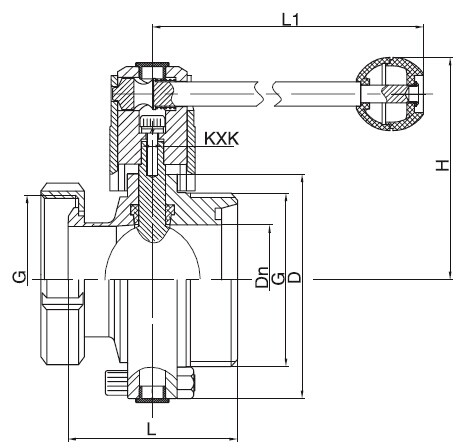

Dimension of Sanitary Threaded x Nut Butterfly Valve – DIN Series

Size

DN

D

L

L1

H

G

K x K

DN10

10

74

73

130

86

RD28x1/8

8×8

DN15

15

74

73

130

86

RD34x1/8

8×8

DN20

19

74

74

130

86

RD44x1/6

8×8

DN25

25

74

78

130

86

RD52x1/6

8×8

DN32

31

80

83

130

90

RD58x1/6

8×8

DN40

37

87

85

130

92

RD65x1/6

8×8

DN50

49

107

89

130

104

RD78x1/6

8×8

DN65

66

124

98

160

113

RD95x1/6

10×10

DN80

81

139

107

160

123.5

RD110x1/4

10×10

DN100

100

159

126

160

133.5

RD130x1/4

10×10

DN125

125

190

137

200

146.5

RD160x1/4

12×12

DN150

150

220

155

200

161.5

RD190x1/4

12×12

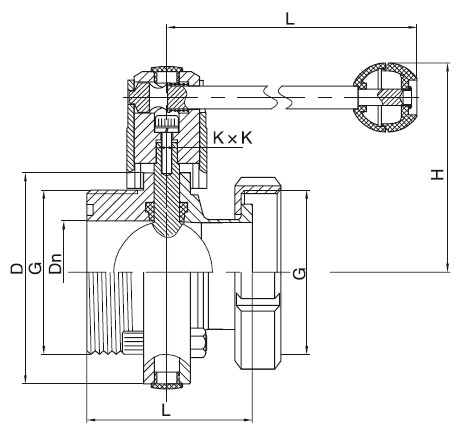

Sanitary Threaded x Nut Valve - SMS Series

Dimension of Sanitary Threaded x Nut Butterfly Valve – SMS Series

Size

DN

D

L

L1

H

G

K x K

?19

16

74

68

130

86

RD36x1/8

8×8

?25

22.4

74

71

130

86

RD40x1/6

8×8

?32

28.8

78

76

130

86

RD48x1/6

8×8

?38

35.1

87

78

130

90

RD80x1/6

8×8

?51

47.8

99

82

130

102

RD70x1/6

8×8

?63

59.5

114

87

130

109

RD85x1/6

10×10

?76

72.2

127

89

160

115

RD98x1/6

10×10

?89

85

139

92

160

123.5

RD105x1/6

10×10

?102(S)

97.6

159

103

160

131

RD125x1/4

10×10

?102(L)

97.6

159

103

160

133.5

RD132x1/6

10×10

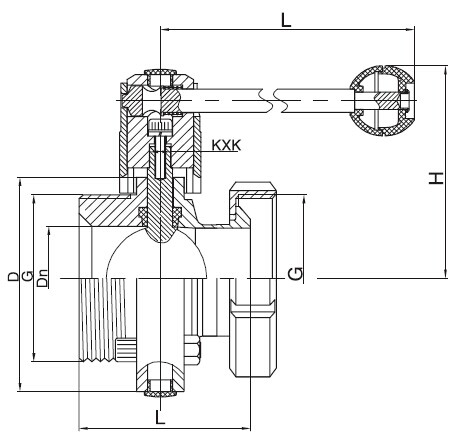

Sanitary Threaded x Nut Butterfly Valve - IDF/ISO Series

Dimension of Sanitary Threaded x Nut Butterfly Valve – IDF/ISO Series

Size

DN

D

L

L1

H

G

K x K

1″

22.4

74

80

130

86

37.1×1/8Acme

8×8

1 1/2″

35.1

87

82

130

90

50.6×1/8Acme

8×8

2″

47.8

107

86

130

102

64.1×1/8Acme

8×8

2 1/2″

59.5

124

90

130

109

77.6×1/8Acme

10×10

3″

72.2

124

92

160

115

91.1×1/8Acme

10×10

4″(ISO)

97.6

159

106

160

131

118.2×1/8Acme

10×10

4″(IDF)

97.6

159

115

160

131

125.9×1/6Acme

10×10

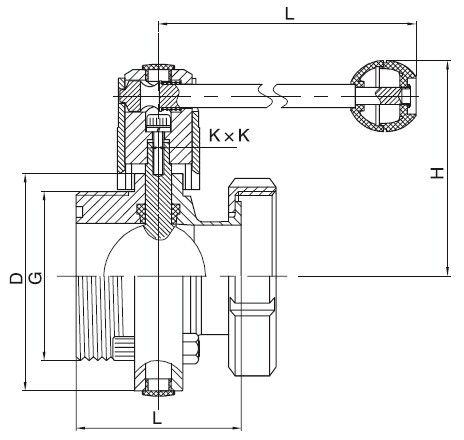

Sanitary Threaded x Nut Butterfly Valve - RJT Series

Dimension of Sanitary Threaded x Nut Butterfly Valve – RJT Series

Size

DN

D

L

L1

H

G

K x K

1″

22.2

74

75.7

130

86

45.7×1/8TWHIT

8×8

1 1/2 “

34.9

87

75.7

130

90

58.4×1/8TWHIT

8×8

2″

47.6

107

78.7

130

102

72.7×1/6TWHIT

8×8

2 1/2″

60.3

124

80.7

130

109

85.4×1/6TWHIT

10×10

3″

73.0

127

80.7

160

115

98.1×1/6TWHIT

10×10

4″

97.5

159

107.4

160

131

123.8×1/6TWHIT

10×10

6″

148

200

141.5

160

161.5

174.3×1/6TWHIT

12×12



Sanitary Threaded x Nut Butterfly Valve - 3A Series

Dimension of Sanitary Threaded x Nut Butterfly Valve – 3A Series

Size

DN

D

L

L1

H

G

K x K

1″

22.1

74

90.9

130

86

37.1×1/8Acme

8×8

1 1/4″

28.8

78

92.9

130

86

45.9×1/8Acme

8×8

1 1/2″

34.8

87

96.1

130

90

50.6×1/8Acme

8×8

2″

47.5

99

100.1

130

102

64.1×1/8Acme

8×8

2 1/2″

60.2

114

110.5

130

109

77.6×1/8Acme

10×10

3″

72.9

127

112.5

160

115

91.1×1/8Acme

10×10

4″

97.4

159

126.5

160

131

119.2×1/6Acme

10×10



Sanitary Threaded x Nut Butterfly Valve - ds Series

Dimension of Sanitary Threaded x Nut Butterfly Valve – DS Series

Size

DN

D

L

L1

H

G

K x K

1″

22.4

74

72

130

86

RD44X1/6

8×8

1 1/4″

28.8

80

72

130

86

RD52X1/6

8×8

1 1/2″

35.1

87

76

130

90

RD58X1/6

8×8

2″

47.8

107

82

130

102

RD72X1/6

8×8

2 1/2″

59.5

124

88

130

109

RD88X1/6

10×10

3″

72.2

127

92

160

115

RD100X1/6

10×10

4″

97.6

159

112

160

131

RD130X1/8

10×10
