Sanitary Weld Reducer Fittings includes concentric and eccentric reducer, it is in the process system to guide the fluid from main piping to branch or sub-branch piping. Sanitary Weld Reducer is made by stainless steel 304 and 316 or specified grade, with the advantage of high cleanliness surface and corrosion resistance. Wellgreen offers ssanitary weld fittings through 1/2″ to 12″, with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc.




Sanitary and Hygienic Weld Reducer – Concentric and Eccentric

Size 1/2″ thru 12″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard 3A, DIN, SMS, BS, ISO, BPF, ISO, IDF, INCH etc.
End Connection Butt Welding
Surface Dull polished, Descaled finish, Mirror polished
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.
How to order *Products Name*Dimension*Material

*Quantity

*Standard

*Polish requests

sanitary weld reducer

Dimension of Sanitary Weld Reducer – Conc and Ecc -3A Reducer W1009 / W1010

Size D d 25.4
3/4″ x 1/2″ 19.1 12.7 25.4
1″ x1/2″ 25.4 12.7 38.1
1″x3/4″ 25.4 19.1 25.4
1 1/2″ x 1/2″ 38.1 12.7 63.5
1 1/2″ x 3/4″ 38.1 19.1 50.8
1 1/2″ x 1″ 38.1 25.4 50.8
2″ x 1/2″ 50.8 12.7 114.3
2″ x 3/4″ 50.8 19.1 101.6
2″ x 1″ 50.8 25.4 101.6
2″ x 1 1/2″ 50.8 38.1 50.8
2 1/2″ x 1/2″ 63.5 12.7 165
2 1/2″ x 3/4″ 63.5 19.1 152.4
21/2″ x 1″ 63.5 25.4 152.4
2 1/2″ x 1 1/2″ 63.5 38.1 101.6
2 1/2″ x 2″ 63.5 50.8 50.8
3″ x 1″ 76.2 25.4 203.2
3″ x 1 1/2″ 76.2 38.1 152.4
3″ x 2″ 76.2 50.8 101.6

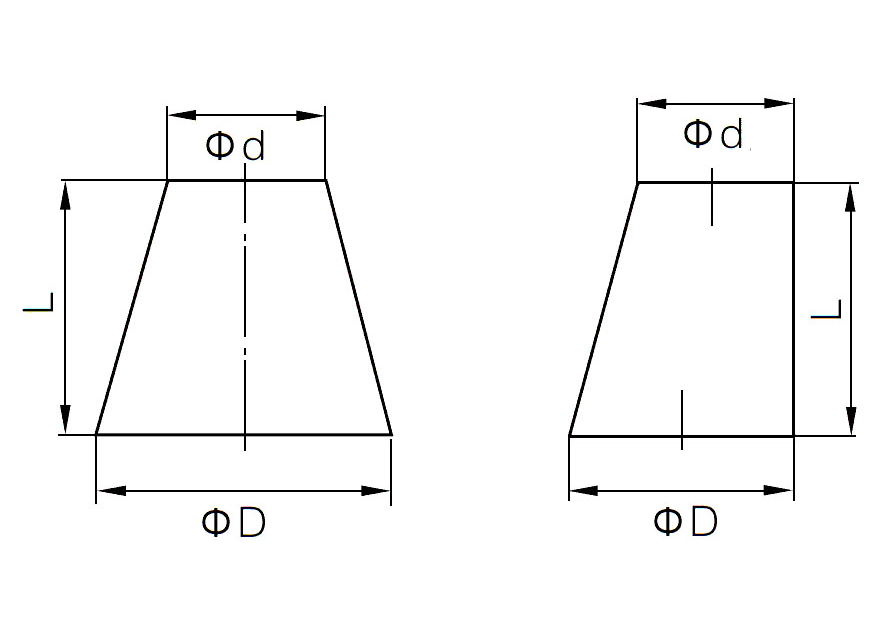

Dimension of Sanitary Weld Reducer – Conc and Ecc – ISO/IDF W1040 / W1041

Size

D

d

L

1″ x 3/4″

25.4

19.1

38

1 1/4″ x 1″

31.8

25.4

50

1 1/2″ x 1″

38.1

25.4

50

1 1/2″ x 1  1/4″

38.1

31.8

50

2″ x 1″

50.8

25.4

67

2″ x 1  1/4″

50.8

31.8

67

2″ x 1  1/2″

50.8

31.8

67

2 1/2″ x 1″

63.5

25.4

67

2 1/2″ x 1  1/2″

63.5

38.1

67

2 1/2″ x 2″

63.5

50.8

67

3″ x 1  1/2″

76.2

38.1

67

3″ x 2″

76.2

50.8

67

3″ x 2  1/2″

76.2

63.5

67

3 1/2″ x 2″

89

50.8

67

3 1/2″ x 2  1/2″

89

63.5

67

3  1/2″ x 3″

89

76.2

76

4″ x 2″

101.6

50.8

87

4″ x 2  1/2″

101.6

63.5

87

4″ x 3″

101.6

76.2

87

4″ x 31/2″

101.6

89

87



Dimension of Sanitary Weld Reducer – Conc and Ecc – SMS/DS W1031 / W1032

Size

D

d

L

19 x 12.7

19.1

12.7

28

25 x 12.7

25

12.7

30

25 x 19

25

19.1

30

32 x 25

32

25

33

38 x 25

38

25

39

38 x 32

38

32

39

51 x 25

51

25

57

51 x 32

51

32

57

51 x 38

51

38

39

63 x 25

63.5

25

57

63 x 32

63.5

32

57

63 x 38

63.5

38

57

63 x 51

63.5

51

39

76 x 25

76.2

25

74

76 x 32

76.2

32

74

76 x 38

76.2

38

74

76 x 51

76.2

51

57

76 x 63

76.2

63.5

39

102 x 38

101.6

38

95

102 x 51

101.6

51

95

102 x 63

101.6

63.5

78

102 x 76

101.6

76.2

60



Dimension of Sanitary Weld Reducer – Conc and Ecc – DIN Reducer W1024 / W1025

Size

D

d

L

Size

D

d

L

DN15xDN10

18

13

11

DN65xDN32

70

34

62

DN20xDN10

22

13

18

DN65xDN40

70

40

51

DN20xDN15

22

18

7

DN65xDN50

70

52

29

DN25xDN15

28

18

18

DN80xDN40

85

40

78

DN25xDN20

28

22

11

DN80xDN50

85

52

56

DN32xDN20

34

22

22

DN80xDN65

85

70

27

DN32xDN25

34

28

11

DN100xDN50

104

52

90

DN40xDN20

40

22

33

DN100xDN65

104

70

61

DN40xDN25

40

28

22

DN100xDN80

104

85

34

DN40xDN32

40

34

11

DN125xDN80

129

85

80

DN50xDN25

52

28

44

DN125xDN100

129

104

45

DN50xDN32

52

34

33

DN150xDN100

154

104

90

DN50xDN40

52

40

22

DN150xDN125

154

129

45

DN65xDN25

70

28

73

DN200xDN150

204

154

90



sanitary weld ecc reducer

Dimension of Sanitary Weld Reducer – Conc and Ecc – DIN Long Pattern W1026 / W1027

Size

D

d

L

Size

D

d

L

DN20xDN15

22

18

60

DN65xDN32

70

34

120

DN25xDN15

28

18

60

DN65xDN40

70

40

130

DN25xDN20

28

22

80

DN65xDN50

70

52

140

DN32xDN20

34

22

80

DN80xDN40

85

40

125

DN32xDN25

34

28

102

DN80xDN50

85

52

120

DN40xDN20

40

22

102

DN80xDN65

85

70

160

DN40xDN25

40

28

88

DN100xDN50

104

52

127

DN40xDN32

40

34

115

DN100xDN65

104

70

120

DN50xDN25

52

28

129

DN100xDN80

104

85

150

DN50xDN32

52

34

113

DN125xDN80

129

85

150

DN50xDN40

52

40

125

DN125xDN100

129

104

170

DN65xDN25

70

28

125

DN150xDN100

154

104

170

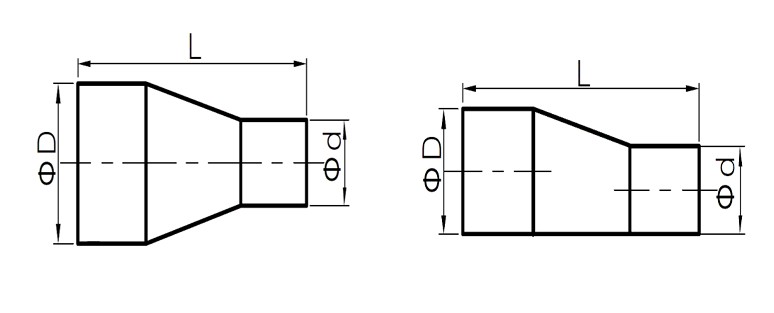

Dimension of Sanitary Weld Reducer – Conc and Ecc – SMS/DS Long Pattern

Size

D

d

L

3/4″ x 1/2″

19.1

12.7

53

1″ x 1/2″

25

12.7

55

1″ x 3/4″

25

19.1

55

1 1/4″ x 1″

32

25

58

1 1/2″ x 1″

38

25

64

1 1/2″ x 1 1/4″

38

32

64

2″ x 1″

51

25

82

2″ x 1 1/4″

51

32

82

2″ x1 1/2″

51

38

64

2 1/2″ x 1″

63.5

25

82

2 1/2″ x 1   1/4″

63.5

32

82

2 1/2″  x 1   1/2″

63.5

38

82

2 1/2″ x 2″

63.5

51

64

3″ x 1″

76.2

25

99

3″ x 11/4″

76.2

32

99

3″ x 11/2″

76.2

38

99

3″ x 2″

76.2

51

82

3″ x 2 1/2″

76.2

63.5

64

4″ x 1 1/2″

101.6

38

129

4″ x 2″

101.6

51

129

4″ x 2 1/2″

101.6

63.5

112

4″ x 3″

101.6

76.2

94

*All dimensions are in mm except specified.

*For more information and specification about sanitary weld reducer fittings, please contact us here.
