Sanitary Welded Diaphragm Valve is butt weld connected diaphragm valve, it is a general valve type. The valve body is forged in stainless steel T304 and T316L, and size from 1/2″ to 2″. Wellgreen provides sanitary welded diaphragm valves with manual operated, pneumatic operated and electric operated etc. We are able to offer every sanitary valves to meet variety needs for hygienic industries such as Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Features:

  •      Valve body is forged of stainless steel T316L, 1.4404 or specified.
  •      Internal surface is up to Ra 0.4?m, external shot blasting.
  •      Dimension to DIN, SMS, 3A, ISO/IDF are available.
  •      PTFE/EPDM composite diaphragm to FDA177.2600.
  •      Different operation of manual, air, electric available.



Operations:

  •  Manual Welded Diaphragm Valve
  •  Pneumatic Welded Diaphragm Valve
  •  Electric Welded Diaphragm Valve



Application:

    Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharm etc.




Sanitary Welded Diaphragm Valves Specification

PRODUCT Sanitary Welded Diaphragm Valve
DIMENSION 1/2″ ~ 2″
MATERIAL T304, T316L, 1.4301, 1.4404 etc.
STANDARD 3A, DIN, SMS, ISO, IDF, BPE, RJT etc.
SEALING GASKET PTFE, EPDM, Silicone, FPM etc.
TEMPERATURE -20°C / -4°F up to +135°C/ +275°F
Working Pressure 0-10bar
Operation Manual, Pneumatic
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name

*Size

*Material

*Quantity

*Standard

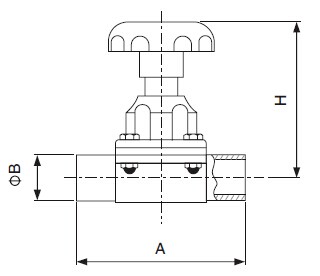

Sanitary Welded Diaphragm Valve - DIN Series

Dimension of Sanitary Welded Diaphragm Valve – DIN Series

Size

A

D

H

DN15

100.0

18.0

88/99

DN25

125.0

28.0

110/123

DN32

140.0

34.0

129/138

DN40

150.0

40.0

139/159

DN50

180.0

52.0

159/186

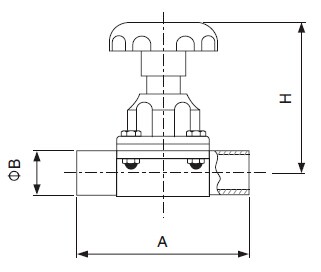

Sanitary Welded Diaphragm Valve - sms Series

Dimension of Sanitary Welded Diaphragm Valve – SMS Series

Size

A

D

H

25

125.0

25.4

110/123

32

140.0

31.8

129/138

38

150.0

38.1

139/159

51

180.0

50.8

159/186

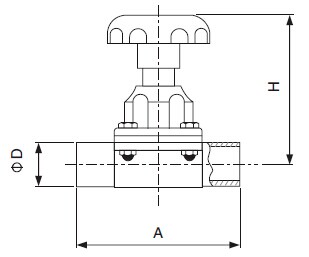

Sanitary Welded Diaphragm Valve - 3a Series

Dimension of Sanitary Welded Diaphragm Valve – 3A Series

Size

A

D

H

1/2”

100.0

12.7

88/99

3/4”

100.0

19.0

88/99

1”

125.0

25.4

110/123

1 1/4”

140.0

31.8

129/138

1 1/2”

150.0

38.1

139/159

2”

180.0

50.8

159/186

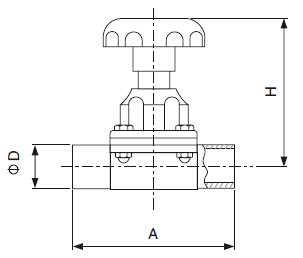

Sanitary Welded Diaphragm Valve - ISO/IDF Series

Dimension of Sanitary Welded Diaphragm Valve – ISO/IDF Series

Size

A

D

H

3/4”

100.0

19.0

88/99

1”

125.0

25.4

110/123

1 1/4”

140.0

31.8

129/138

1 1/2”

150.0

38.1

139/159

2”

180.0

50.8

159/186
