Stationary Spray Ball


Stationary Spray Ball

Stationary Spray ball is a 360° and 10ft of cleaning coverage spray nozzle, it is a idea choice for  low pressures system. All of our stationary Spray balls are made in 316L stianless steel, and 180 grit finish inside and outside. It is designed to be mounted and fixed to a tube or pipe, connection in NPT female, tri-clamp, or welded. Wellgreen sanitary spray head is your idea choice for brewery tanks, chemical containers, food processing tanks, pharmaceutical tanks, wine barrels and vats etc.




Stationary Spray Ball – Sanitary Cleaning Ball for Tanks and Vessels

Size 1″ thru 2-1/2″
Material T304, T316L, En 1.4301, EN 1.4404 etc.
Type
  • Clamped stationary spray ball
  • Welded stationary spray ball
  • Bolted stationary spray ball
  • Threaded stationary spray ball
Connection Tri-Clamp, Threaded, Welded, Bolted etc.
Standard 3A, DIN, SMS, BS, ISO, BPF, ISO, IDF etc.
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.
How to order *Part name*Dimension*Material

*Quantity

*Type or Picture/Part Code



sanitary threaded stationary spray head 50050

Dimension of NPT Female Stationary Spray Head SB50050

Size A Q
1” 72.0 63.0
1 1/4” 85.0 76.0
1 1/2” 87.0 76.0
2” 102.0 91.0

Technical Parameter of NPT Female Stationary Spray Head SB50050

Size Pressure(bar) Cleaning radius(m) Fluxationm³/h
1” 2.5 1.0~1.25 17/10
1.1/4”-11/2 2.5 1.25~1.75 23/17
2” 3.5 2.0~3.0 55/38
21/2” 3.5 3.0~3.5 58/41



sanitary stationary spray head 50051

Dimension of Tri-Clamp Stationary Spray Head SB50051

Size A Q
1” 80.0 63.0
1 1/4” 93.0 76.0
1 1/2” 93.0 76.0
2” 108.0 91.0
2 1/2” 115.5 100.0

Technical Parameter of Tri-Clamp Stationary Spray Head SB50051

Size Pressure(bar) Cleaning radius(m) Fluxationm³/h
1” 2.5 1.0~1.25 17/10
1.1/4”-11/2 2.5 1.25~1.75 23/17
2” 3.5 2.0~3.0 55/38
21/2” 3.5 3.0~3.5 58/41



sanitary welded stationary spray head 50052

Dimension of Welded Stationary Spray Head SB50052

Size A Q
1” 72.0 53.0
1 1/2” 85.0 63.0
2” 87.0 91.0
2 1/2” 102.0 100.0

Technical Parameter of Welded Stationary Spray Head SB50052

Size Pressure(bar) Cleaning radius(m) Fluxationm³/h
1” 2.5 1.0~1.25 17/10
1.1/4”-11/2 2.5 1.25~1.75 23/17
2” 3.5 2.0~3.0 55/38
21/2” 3.5 3.0~3.5 58/41

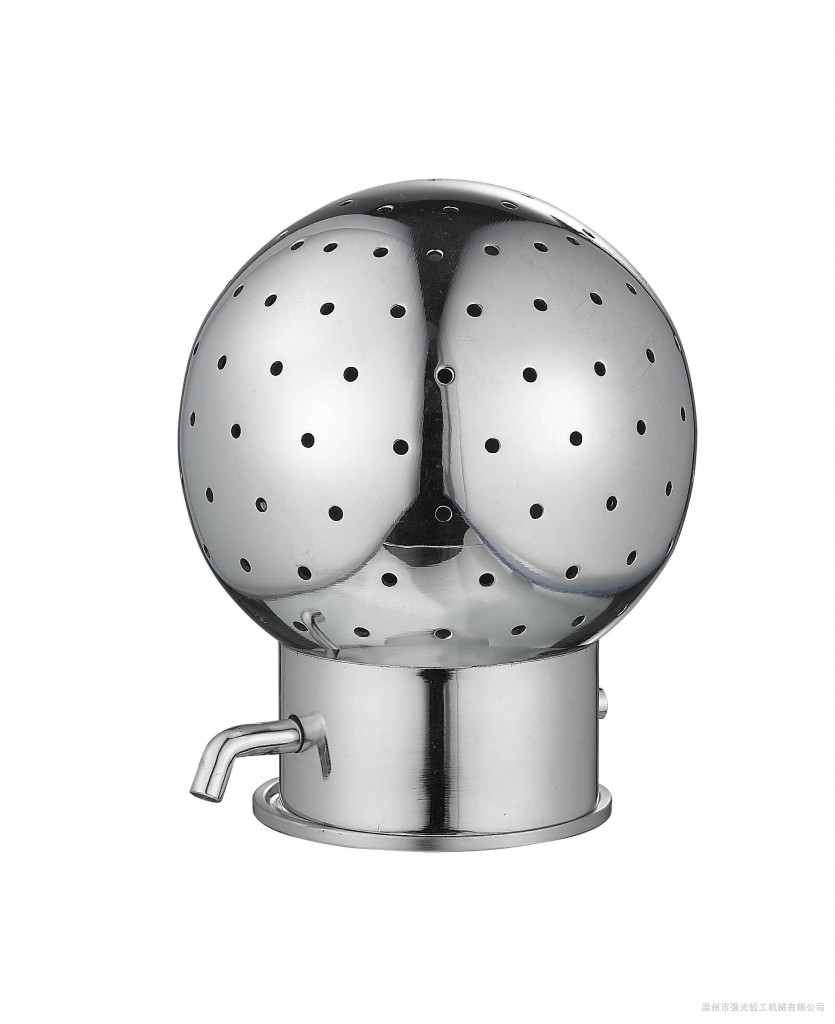

sanitary welded stationary bolt spray head 50051

Dimension of Bolted Stationary Spray Head SB50053

Size A Q
1” 95.0 63.0
1 1/2” 110.0 76.0
2” 125.0 91.0
2 1/2” 135.0 100.0

Technical Parameter of Bolted Stationary Spray Head SB50053

Size Pressure(bar) Cleaning radius(m) Fluxationm³/h
1” 2.5 1.0~1.25 17/10
1.1/4”-11/2 2.5 1.25~1.75 23/17
2” 3.5 2.0~3.0 55/38
21/2” 3.5 3.0~3.5 58/41

*Please contact us to get more information and specification about stationary spray ball.
