John Perry Fittings


John Perry Fittings

John Perry Fittings is normally applicable for American market, it is primarily used in Dairy and Beverage process. Generally, the size of John Perry sanitary fittings is similar to Bevel Seat Fitting, the nuts can be replaced by bevel seat fittings. Wellgreen offers John Perry Fittings in stainless steel T304, T316L, and size from 1″ to 4″, conform to 3A and FDA requirement. We are your reliable source of sanitary fittings which applicable with industries Pharmacy, Beer, Food, Milk, Petroleum, Dairy, Beverage,Biotech etc.


John Perry Fittings – John Perry Union Fittings- Sanitary Stainless Steel Fittings

PRODUCT John Perry Fittings:

  • Long Weld Ferrule
  • Short Weld Ferrule
  • Threaded Long Weld Ferrule
  • Threaded Short Weld Ferrule
  • Solid End Cap
DIMENSION 1″ thru 4″
MATERIAL T304, T316L, EN 1.4301, EN 1.4404 etc.
STANDARD John Perry Fittings,Bevel Seat Fitting
SEALING GASKET Silicone, EPDM, PTFE, Buna-N etc.
TEMPERATURE -30°C / -22°F up to +120°C/ +248°F
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size

*Material

*Quantity

*Standard

*Surface Finish



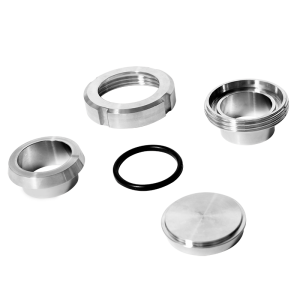

John Perry Fittings - Long Weld Ferrule

John Perry Fittings – Long Weld Ferrule

Tube O.D.

A

B

1

1.375

0.870

1.5

1.500

1.370

2

1.500

1.870

2.5

1.750

2.370

3

1.750

2.870

4

1.750

3.834



John Perry Fittings - Short Weld Ferrule

John Perry Fittings – Short Weld Ferrule

Tube O.D.

A

B

1

0.687

0.870

1.5

0.719

1.370

2

0.719

1.870

2.5

0.844

2.370

3

0.906

2.870

4

1.218

3.834



John Perry Fittings - Threaded Long Weld Ferrule

John Perry Fittings – Threaded Long Weld Ferrule

Tube O.D.

A

B

1

1.375

0.870

1.5

1.500

1.370

2

1.500

1.870

2.5

1.750

2.370

3

1.750

2.870

4

1.750

3.834



John Perry Fittings - Threaded Short Weld Ferrule

John Perry Fittings – Threaded Short Weld Ferrule

Tube O.D.

A

B

1

0.687

0.870

1.5

0.719

1.370

2

0.719

1.870

2.5

0.844

2.370

3

0.906

2.870

4

1.218

3.834



John Perry Fittings - Solid End Cap

John Perry Fittings – Solid End Cap

Tube O.D.

A

B

1

1.125

0.468

1.5

1.656

0.500

2

2.187

0.531

2.5

2.656

0.594

3

3.187

0.625

4

4.187

0.625

*All sizes in are inch except specified.

*For more information and specification about John Perry Sanitary Fittings, please contact us here.

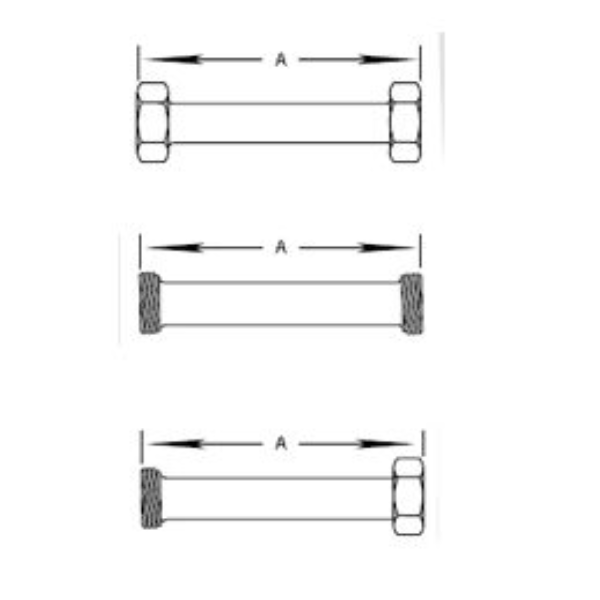

Bevel Seat Tube Connectors


Bevel Seat Tube Connectors

Bevel Seat Tube Connectors is a kind of bevel seat adapter fittings, which includes threaded tube connector, hex nut tube connector etc. Bevel seat tube connector fittings are made in stainless steel T316L, T304, size from 1″ to 4″. Wellgreen offers Bevel Seat Fitting conform with 3A and FDA requirement to applicable with industries Pharmacy, Beer, Food, Milk, Petroleum, Dairy, Beverage,Biotech etc., it is your reliable source of sanitary fittings.




Bevel Seat Threaded Tube Connector

Bevel Seat Threaded Tube Connector

Tube O.D.

Minimum Length A

1

1.375

1.5

1.437

2

1.437

2.5

1.687

3

1.812

4

2.437



Bevel Seat Threaded x Hex Nut Tube Connector

Bevel Seat Threaded x Hex Nut Tube Connector

Tube O.D.

Minimum Length A

1

2.875

1.5

3.125

2

3.375

2.5

3.750

3

3.875

4

4.625



Bevel Seat Hex Nut x Hex Nut Tube Connector

Bevel Seat Hex Nut x Hex Nut Tube Connector

Tube O.D.

Minimum Length A

1

2.875

1.5

3.125

2

3.375

2.5

3.750

3

3.875

4

4.625

*All dimension are in inch except specified. *For more information and specification about Bevel Seat Fittings, please contact us here.

Bevel Seat Adapter Fittings


Bevel Seat Adapter Fittings

Bevel Seat Adapter Fittings includes male female threaded adapters, rubber hose adapters,tygon hose adapters etc, it is a important tubing connector. Bevel seat adapter fittings connected with male and female threaded or plain with hexagonal nut, and made in stainless steel T316L, T304, size from 1″ to 4″. Wellgreen offers Bevel Seat Fitting conform with 3A and FDA requirement to applicable with industries Pharmacy, Beer, Food, Milk, Petroleum, Dairy, Beverage,Biotech etc., it is your reliable source of sanitary fittings.






ACME Threaded Bevel Seat x Male NPT Adapter Fittings

ACME Threaded Bevel Seat x Male NPT Adapter Fittings

Tube O.D.

A

1

2.250

1.5

2.438

2

2.656

2.5

3.281

3

3.500

4

3.813



ACME Threaded Bevel Seat x Female NPT Adapter Fittings

ACME Threaded Bevel Seat x Female NPT Adapter Fittings

Tube O.D.

A

1

2.063

1.5

2.250

2

2.344

2.5

2.094

3

2.188

4

2.625



Plain Bevel Seat with Hex Nut x Female NPT Adapter Fittings

Plain Bevel Seat with Hex Nut x Female NPT Adapter Fittings

Tube O.D.

A

1

3.125

1.5

3.250

2

3.312

2.5

4.062

3

4.250

4

4.312



Plain Bevel Seat with Hex Nut x Male NPT Adapter Fittings

Plain Bevel Seat with Hex Nut x Male NPT Adapter Fittings

Tube O.D.

A

1

3.125

1.5

3.250

2

3.312

2.5

4.062

3

4.250

4

4.312



Plain Bevel Seat Tygon Hose Adapter Fittings

Plain Bevel Seat Tygon Hose Adapter Fittings

Tube O.D.

A

B

1

4.688

1.0

1.5

4.719

1.5

2

4.719

2.0

2.5

4.844

2.5

3

4.906

3.0

4

5.218

4.0



Bevel Seat Threaded Rubber Hose Adapter Fittings

Bevel Seat Threaded Rubber Hose Adapter Fittings

Tube O.D.

A

B

C

1

1.687

0.870

1.0

1.5

1.687

1.370

1.5

2

2.312

1.870

2.0

2.5

2.343

2.370

2.5

3

3.500

2.870

3.0

4

4.000

3.834

4.0



Bevel Seat Threaded Tygon Hose Adapter Fittings

Bevel Seat Threaded Tygon Hose Adapter Fittings

Tube O.D.

A

B

1

4.688

1.0

1.5

4.719

1.5

2

4.719

2.0

2.5

4.844

2.5

3

4.906

3.0

4

5.218

4.0



Plain Bevel Seat Rubber Hose Adapter Fittings

Plain Bevel Seat Rubber Hose Adapter Fittings

Tube O.D.

A

B

C

1

1.687

0.870

1.0

1.5

1.687

1.370

1.5

2

2.312

1.870

2.0

2.5

2.343

2.370

2.5

3

3.500

2.870

3.0

4

4.000

3.834

4.0

*All dimension are in inch except specified.

*For more information and specification about Bevel Seat Fittings, please contact us here.



Bevel Seat Reducer Fittings


Bevel Seat Reducer Fittings

Bevel Seat Reducer Fittings includes concentric reducer and eccentric reducer, it is a kind of Bevel Seat Fitting. Bevel seat reducer fittings connected with ACME thread or one end is hexagonal nut. Bevel seat reducer fittings are made in stainless steel T304, T316L, and size from 1″ to 4″, all bevel seat fitting are made conform with 3A and FDA requirement. Wellgreen is your reliable source of sanitary fittings which applicable with industries Pharmacy, Beer, Food, Milk, Petroleum, Dairy, Beverage,Biotech etc.






Threaded Bevel Seat Fittings - Concentric Reducer

Threaded Bevel Seat Fittings – Concentric Reducer Fittings

Tube O.D.

A

1.5 x 1

3.375

2 x 1

5.406

2 x 1.5

3.406

2.5 x 1.5

5.531

2.5 x 2

3.562

3 x 2

5.656

3 x 2.5

3.781

4 x 2.5

7.843

4 x 3

5.937





Threaded Bevel Seat x Threaded Bevel Seat Eccentric Reducer

Threaded Bevel Seat x Threaded Bevel Seat Eccentric Reducer Fittings

Tube O.D.

A

1.5 x 1

3.375

2 x 1

5.406

2 x 1.5

3.406

2.5 x 1.5

5.531

2.5 x 2

3.562

3 x 2

5.656

3 x 2.5

3.781

4 x 2.5

7.843

4 x 3

5.937



Threaded Bevel Seat x Plain Bevel Seat Concentric Reducer with Hex Nut

Threaded Bevel Seat x Plain Bevel Seat Concentric Reducer with Hex Nut

Tube O.D.

A

1.5 x 1

4.062

2 x 1

6.093

2 x 1.5

4.218

2.5 x 1.5

6.343

2.5 x 2

4.343

3 x 2

6.437

3 x 2.5

4.687

4 x 2.5

8.750

4 x 3

6.750



Threaded Bevel Seat x Plain Bevel Seat Eccentric Reducer with Hex Nut

Threaded Bevel Seat x Plain Bevel Seat Eccentric Reducer with Hex Nut

Tube O.D.

A

1.5 x 1

4.062

2 x 1

6.093

2 x 1.5

4.218

2.5 x 1.5

6.343

2.5 x 2

4.343

3 x 2

6.437

3 x 2.5

4.687

4 x 2.5

8.750

4 x 3

6.750



Plain Bevel Seat x Plain Bevel Seat Concentric Reducer with Hex Nut

Plain Bevel Seat x Plain Bevel Seat Concentric Reducer with Hex Nut

Tube O.D.

A

1.5 x 1

4.062

2 x 1

6.093

2 x 1.5

4.218

2.5 x 1.5

6.343

2.5 x 2

4.343

3 x 2

6.437

3 x 2.5

4.687

4 x 2.5

8.750

4 x 3

6.750



Plain Bevel Seat x Plain Bevel Seat Concentric Reducer with Hex Nut

Plain Bevel Seat x Plain Bevel Seat Eccentric Reducer with Hex Nut

Tube O.D.

A

1.5 x 1

4.062

2 x 1

6.093

2 x 1.5

4.218

2.5 x 1.5

6.343

2.5 x 2

4.343

3 x 2

6.437

3 x 2.5

4.687

4 x 2.5

8.750

4 x 3

6.750



Plain Bevel Seat x Threaded Bevel Seat Concentric Reducer

Plain Bevel Seat x Threaded Bevel Seat Concentric Reducer Fittings

Tube O.D.

A

1.5 x 1

3.375

2 x 1

5.406

2 x 1.5

3.406

2.5 x 1.5

5.531

2.5 x 2

3.562

3 x 2

5.656

3 x 2.5

3.781

4 x 2.5

7.843

4 x 3

5.937



Plain Bevel Seat x Threaded Bevel Seat Eccentric Reducer

Plain Bevel Seat x Threaded Bevel Seat Eccentric Reducer Fittings

Tube O.D.

A

1.5 x 1

3.375

2 x 1

5.406

2 x 1.5

3.406

2.5 x 1.5

5.531

2.5 x 2

3.562

3 x 2

5.656

3 x 2.5

3.781

4 x 2.5

7.843

4 x 3

5.937

*All dimension are in inch except specified.

*For more information and specification about Bevel Seat Fittings, please contact us here.



Bevel Seat Cross Fittings


Bevel Seat Cross Fittings

Bevel Seat Cross Fittings are with ACME thread cross fittings. Wellgreen offers Bevel Seat Cross Fitting of four ends male threaded and one end hexagon nut three ends male. Bevel seat cross fittings are made in stainless steel T304, T316L of size 1″ to 4″. All bevel seat fitting are made conforming to 3A and FDA requirement, it is your idea source of hygienic industries Pharmacy, Beer, Food, Milk, Petroleum, Dairy, Beverage,Biotech etc.






Threaded Bevel Seat cross Fittings wellgreen

Threaded Bevel Seat Cross Fittings

Tube O.D.

A

B

1

1.812

3.625

1.5

2.375

4.750

2

2.781

5.563

2.5

3.187

6.375

3

3.500

7.000

4

4.656

9.312



Threaded Bevel Seat cross Fittings Plain Bevel Seat with Hex Nut  wellgreen

Threaded Bevel Seat Cross Fittings – Plain Bevel Seat with Hex Nut

Tube O.D.

A

B

C

D

1

1.813

2.688

3.625

4.500

1.5

2.375

3.406

4.750

5.781

2

2.781

3.813

5.563

6.594

2.5

3.188

4.250

6.375

7.438

3

3.500

4.625

7.000

8.125

4

4.656

6.125

9.313

10.781

*All dimension are in inch except specified.

*For more information and specification about Bevel Seat Fittings, please contact us here.



Bevel Seat Tee Fittings


Bevel Seat Tee Fittings

Bevel Seat Tee Fittings are with ACME thread three ends or one end nut other ends threaded. Wellgreen offers Bevel Seat Tee Fitting with good quality and fast delivery. Bevel seat tee fittings are made from stainless steel T304, T316L of size 1″ to 4″. All bevel seat fitting are made conform with 3A and FDA requirement, it is your idea source of hygienic industries Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech etc.

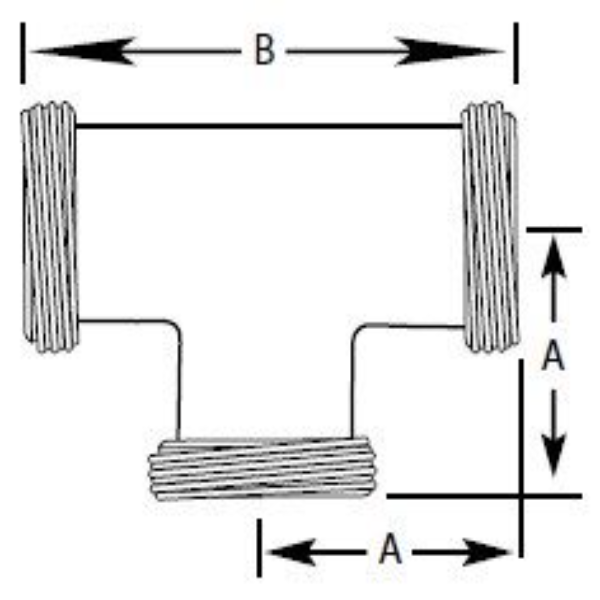

Threaded Bevel Seat Tee Fittings

Threaded Bevel Seat Tee Fittings

Tube O.D.

A

B

1

1.313

3.625

1.5

1.655

4.750

2

2.125

5.563

2.5

2.625

6.375

3

3.125

7.000

4

4.250

9.313



Threaded Bevel Seat Tee Fittings - Branch with Hex Nut

Threaded Bevel Seat Tee Fittings – Branch with Hex Nut

Tube O.D.

A

B

C

1

1.813

3.625

2.688

1.5

2.375

4.750

3.406

2

2.781

5.563

3.813

2.5

3.188

6.375

4.250

3

3.500

7.000

4.625

4

4.656

9.313

6.125



Threaded Bevel Seat Tee Fittings - Plain end with Hex Nut Run

Threaded Bevel Seat Tee Fittings – Plain run end with Hex Nut

Tube O.D.

A

B

C

1

1.813

2.688

4.500

1.5

2.375

3.406

5.781

2

2.781

3.813

6.594

2.5

3.188

4.250

7.438

3

3.500

4.625

8.125

4

4.656

6.125

10.781

*All dimension are in inch except specified.

*For more information and specification about bevel seat fittings, please contact us here.



Bevel Seat Threaded Elbow Fittings


Bevel Seat Threaded Elbow Fittings

Bevel Seat Threaded Elbow Fittings are with ACME thread both end or one end threaded one end nut. Wellgreen offers Bevel Seat Threaded Elbow Fitting with different connected types of threaded and nuts or unions. Bevel seat threaded elbow fittings are made from stainless steel T304, T316L of size 1″ to 4″. All bevel seat fitting are made conform with 3A and FDA requirement, it is your idea source of hygienic industries Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech etc.




Threaded Bevel Seat x Threaded Bevel Seat Elbow

90º Threaded Bevel Seat x Threaded Bevel Seat Elbow

Tube O.D.

A

1

2.188

1.5

2.968

2

3.719

2.5

4.843

3

5.906

4

8.062



90º Plain Bevel Seat x Plain Bevel Seat with Hex Nut Elbow

90º Plain Bevel Seat x Plain Bevel Seat with Hex Nut Elbow

Tube O.D.

A

1

2.188

1.5

2.968

2

3.719

2.5

4.843

3

5.906

4

8.062



90º Threaded Bevel Seat x Plain Bevel Seat with Hex Nut Elbow

90º Threaded Bevel Seat x Plain Bevel Seat with Hex Nut Elbow

Tube O.D.

A

1

2.188

1.5

2.968

2

3.719

2.5

4.843

3

5.906

4

8.062



45º Threaded Bevel Seat x Threaded Bevel Seat Elbow

45º Threaded Bevel Seat x Threaded Bevel Seat Elbow

Tube O.D.

A

1

1.313

1.5

1.655

2

2.125

2.5

2.625

3

3.125

4

4.250



45º Threaded Bevel Seat x Plain Bevel Seat with Hex Nut Elbow

45º Threaded Bevel Seat x Plain Bevel Seat with Hex Nut Elbow

Tube O.D.

A

1

1.313

1.5

1.655

2

2.125

2.5

2.625

3

3.125

4

4.250

*All dimension are in inch except specified.

*For more information and specification about bevel seat fittings, please contact us here.
