I-Line Ferrule Fittings






I-line Ferrule Fittings

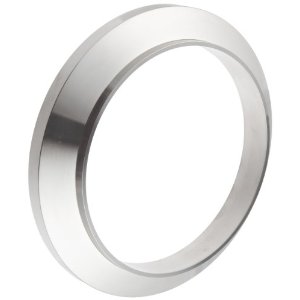

I-line Ferrule Fittings are made in stainless steel 304 and 316L. the interlocking flat face ferrules are locked by a clamp and sealing with a flat gasket. I-line ferrule fitting has the advantages of high pressure withstanding, shock resistance, high temperature resistance, and maintenance easierly etc. Wellgreen sanitary is ability to supplying qualified hygienic I-line Fittings comply to your condition and 3A requirement.




I-Line Ferrule Fittings 鈥 Sanitary I-Line Fittings – Stainless Steel Tube Fittings
Product I-Line Fittings-Ferrules and End Caps
Size 1″ thru 8″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard I-Line, 3A
End Connection Tri-clamp, Threaded etc.
Surface Descaled finish, Mirror polished.
Gasket PTFE, EPDM, Buna-N, Silicone etc.
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic, water treatment etc.
How to order *Part Name

*Dimension

*Material

*Quantity

*Polish requests for OD/ID



I-line ferrule fittings

Dimension of I-Line Fittings – Ferrule – Male Welding – Sanitary Fittings

Size A
1 19/32
1 1/2″ 3/4
2″ 25/32
2 1/2″ 27/32
3″ 29/32
4″ 11/32
6″ 13/16
8″ 13/16





I-line ferrule fittings

Dimension of I-Line Fittings – Ferrule – Male Welding – Heavy Wall – Sanitary Fittings

Size A
1″ 1 5/16
1 1/2″ 1 7/16
2″ 1 1/2
2 1/2″ 1 7/16
3″ 1 1/2
4″ 1 13/16
6″ 6 7/8
8″ 8 7/8



I-line ferrule fittings

Dimension of I-Line Fittings – Ferrule – Male Welding Long- Sanitary Fittings

Size A
1″ 1 9/16
1 1/2″ 1 27/32
2″ 2 1/16
2 1/2″ 2 3/16
3″ 2 3/8
4″ 2 11/16
6″ 3 13/16
8″ 3 13/16



I-line ferrule fittings

Dimension of I-Line Fittings – Ferrule – Female Welding – Sanitary Fittings

Size A
1″ 25/32
1 1/2″ 15/16
2″ 11/32
2 1/2″ 15/32
3″ 17/32
4″ 1 11/32
6″ 1 1/8
8″ 1 1/8



I-line ferrule fittings

Dimension of I-Line Fittings – Ferrule – Female Welding – Heavy Wall – Sanitary Fittings

Size A
1″ 1 1/2
1 1/2″ 1 5/8
2″ 1 3/4
2 1/2″ 1 3/4
3″ 1 13/16
4″ 2 1/8
6″ 3
8″ 3



I-line ferrule fittings

Dimension of I-Line Fittings – Ferrule – Female Welding Long – Sanitary Fittings

Size A
True 1 1 5/8
1″ 1 3/4
1 1/2″ 2 1/32
2″ 2 5/16
2 1/2″ 2 1/2
3″ 2 11/16
4″ 3
6″ 4
8″ 4



I-line ferrule fittings

Dimension of I-Line Fittings – Cap Male – Sanitary Fittings

Size A
1″ 2
1 1/2″ 2
2″ 2 5/8
2 1/2″ 3 5/16
3″ 3 7/8
4″ 4 7/8
6″ 7 1/2
8″ 8 1/2



I-line ferrule fittings

Dimension of I-Line Fittings – Cap Female – Sanitary Fittings

Size A
1″ 2
1 1/2″ 2
2″ 2 5/8
2 1/2″ 3 5/16
3″ 3 7/8
4″ 4 7/8
6″ 7 1/2
8″ 8 1/2



I-line ferrule fittings

Dimension of I-Line Fittings – Thermometer Cap Male – Sanitary Fittings

Size A G
1″ 2 1/2-14NPT
1 1/2″ 2 3/4-14NPT
2″ 2 5/8 3/4-14NPT
2 1/2″ 3 5/16 3/4-14NPT
3″ 3 7/8 3/4-14NPT
4″ 4 7/8 3/4-14NPT

* For more information about I-line ferrule fittings, please contact us when you feel free.

** All dimensions are in inch.
