Sanitary Clamps

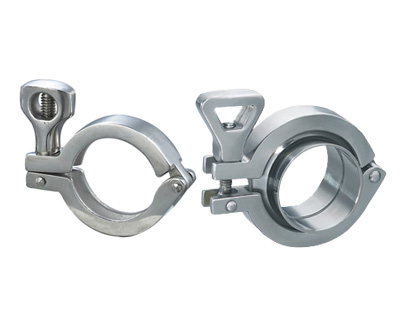

Sanitary Clamps Fittings is an important connection part of sanitary fittings. They are usually of material stainless steel 304. With a gasket, a clamp can match two ferrules tightly together without any leakage. Wellgreen sanitary supply mainly four kinds of clamps: heavy duty single pin clamp, double pins clamp, high pressure bolted clamps with brass nuts, and safety clamps which can meet customer’s different requests on them.
| PRODUCT | Sanitary Clamp – heavy duty single pin clamp, double pins clamp, high pressure bolted clamps with brass nuts, and safety clamps etc. |
|---|---|
| DIMENSION | 1/2″ thru 12″ |
| MATERIAL | T304, T316L, EN 1.4301, EN 1.4404 etc. |
| STANDARD | 3A, DIN, SMS, BS, ISO, RTJ, IDF,INCH, Macon etc. |
| SEALING GASKET | Silicone, EPDM, PTFE, Buna-N etc. |
| TEMPERATURE | -30°C / -22°F up to +120°C/ +248°F |
| APPLICATION |
Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc. |
| How to order | *Part Name*Size*Material*Quantity*Standard
*Type |

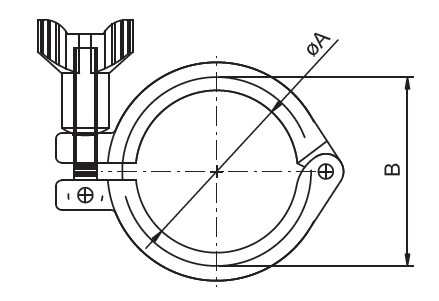

Dimension of Sanitary Clamp – Heavy Duty Single Pin Clamp – 13MHH – Sanitary Fitting W2003
| SIZE | A | B |
| A37 | 27.8 | 37 |
| 1.5” | 44.4 | 53.6 |
| 2.0” | 57.8 | 67 |
| 2.5” | 71.4 | 80.6 |
| 3.0” | 84 | 94.2 |
| 4.0” | 110 | 122.2 |
| 6.0” | 155.4 | 170.4 |
| 8.0” | 205 | 220 |

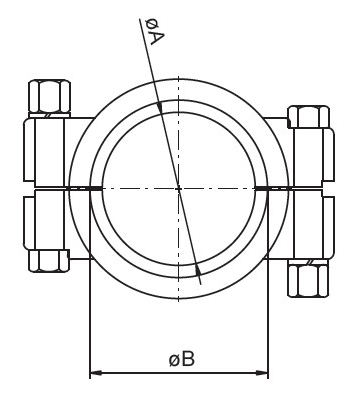

Dimension of Sanitary Clamp – High Pressure Clamp – 13MHP – Sanitary Fitting W2005
| SIZE | A | B |
| 1/2”-3/4” | 20 | 28 |
| 1.5” | 43.3 | 52 |
| 2.0” | 56.4 | 65.5 |
| 2.5” | 69.5 | 79 |
| 3.0” | 77.5 | 92.5 |
| 4.0” | 109 | 120.5 |
| 6.0” | 158 | 170 |
| 8.0” | 222.5 | 237.5 |

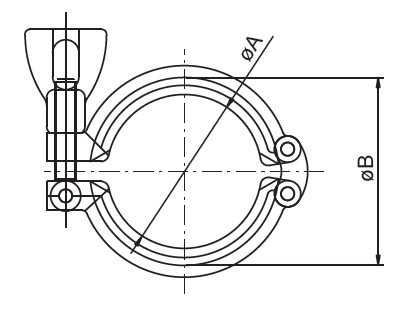

Dimension of Sanitary Clamp – Heavy Duty Double Pin Clamp – 13SF – Sanitary Fitting W2002
| SIZE | A | B |
| 1/2”-3/4” | 20 | 28 |
| 1.5” | 45 | 58.6 |
| 2.0” | 59 | 72 |
| 2.5” | 67 | 84 |
| 3.0” | 85 | 98 |
| 4.0” | 114 | 127 |

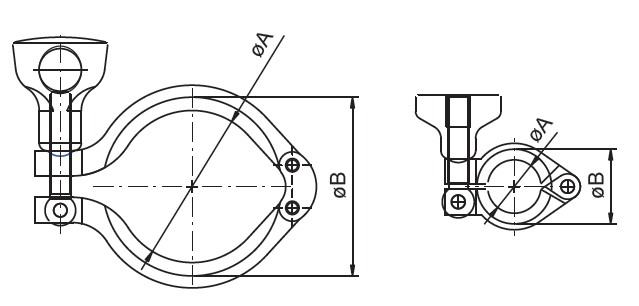

Dimension of Sanitary Clamp – Heavy Duty Double Pin Clamp – 13MHHM – Sanitary Fitting W2001
| SIZE | A | B |
| 1/2”-3/4” | 20 | 28 |
| 1.5” | 43.6 | 53.6 |
| 2.0” | 57 | 67 |
| 2.5” | 70.6 | 80.6 |
| 3.0” | 84 | 94 |
| 4.0” | 112 | 122 |
| 6.0” | 155 | 170 |
| 8.0” | 205 | 220.8 |
*All dimension are in mm except specified.
*For more information and specification about tri-clamp fittings, please contact us here.
