Sanitary Hose Thread Adapter


Sanitary Hose Thread Adapter

Sanitary Hose Thread Adapter is one end clamp on end thread connector adapters, the thread end with hexagon nut male or female threaded. Our sanitary hose thread adapters are made in stainless steel T304, T316L etc, with high purity surface and good precision. Wellgreen sanitary fittings offers sanitary hose adapters with high purity surface and good precision to meet the hygienic requirement, and customized fabrication is available.




Sanitary Hose Thread Adapter Fittings

鈥 One End Clamp One End Thread Connector Adapters

Size 1/2″ thru 4″
Material T304, T316L, en1.4301, en1.4404 etc.
Standard 3A, DIN, SMS, BS, ISO, RTJ, ISO etc.
End Connection Threaded and Tri-Clamp
Surface On request
Gasket PTFE, EPDM, Buna-N, Silicone etc.
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.
How to order *Part Name

*Dimension

*Material

*Quantity

*Standard / Sample / Drawing

*Polish requests



Sanitary Hose Thread Adapters - one end clamp one end male

Dimension for Sanitary Hose Thread Adapters – one end clamp one end male(NPT)

Size

D

L

G (NPT聽 聽聽BSPT聽聽 BSP)

1/2″-1/2″ 25.4 50

1/2

1/2″-3/4″ 25.4 50

3/4

3/4″-3/4″ 25.4 50

1/2

3/4″-3/4″ 25.4 50

3/4

1″-1/2″ 50.5 55

1/2

1″-3/4″ 50.5 55

3/4

1″-1″ 50.5 57

1

1″-1 1/2″ 50.5 61

11/2

1″-2″ 50.5 66

2

1″-1/2″-3/4″ 50.5 55

3/4

1 1/2″-1″ 50.5 58

1

1 1/2″-1 1/4″ 50.5 61

11/4

1 1/2″-1 1/2″ 50.5 61

11/2

1 1/2″-2″ 50.5 66

2

2″-1/2″ 64 57

1/2

2″-3/4″ 64 62

3/4

2″-1″ 64 62

1

2″-1 1/2″ 64 67

11/2

2″-2″ 64 70

2

2 1/2″-1 1/2″ 77.5 70

11/2

2 1/2″-2″ 77.5 70

2

2 1/2″-2 1/2″ 77.5 83

21/2

3″-3″ 91 88

3

4″-4″ 119 96

4

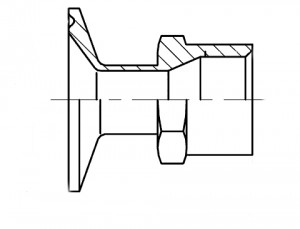

Sanitary Hose Thread Adapters - one end clamp one end female

Dimension for Sanitary Hose Thread Adapters – one end clamp one end female(NPT)

Size

D

L

G (NPT聽聽聽 BSPT聽聽 BSP)

1/2″-1/2″ 25.4 38

1/2

1/2″-3/4″ 25.4 41

3/4

3/4″-3/4″ 25.4 38

1/2

3/4″-3/4″ 25.4 41

3/4

1″-1/2″ 50.5 41

1/2

1″-3/4″ 50.5 41

3/4

1″-1″ 50.5 41

1

1 1/2″-3/4″ 50.5 55

3/4

1 1/2″-1″ 50.5 58

1

1 1/2″-1 1/4″ 50.5 61

11/4

1 1/2″-1 1/2″ 50.5 61

11/2

2″-1 1/2″ 64 57

1/2

2″-2″ 64 62

2

2 1/2″-1 1/2″ 77.5 70

11/2

2 1/2″-2″ 77.5 70

2

2 1/2″-2 1/2″ 77.5 83

21/2

3″-3″ 91 88

3

4″-4″ 119 96

4

*All dimensions are in mm except specified.

*For more information and specification about聽Sanitary Adapter Fittings,聽please聽contact us聽here.
