ASME BPE Weld Fittings

ASME BPE Weld Fittings are the welding connection tube fittings of ASME BPE fittings series, it supports the on line automatic聽orbital weld. ASME BPE Weld Fittings are聽made from 316 welded tube and electropolishing to get high purity surface. Wellgreen sanitary is assuredly capable of supplying qualified hygienic BPE Fittings comply to your your condition and FDA,GMP requirement.


BPE Fittings 鈥 Sanitary Fittings – Stainless Steel Tube Fittings

Size 1/2″ thru 6″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard ASME BPE
End Connection Welding
Surface Descaled finish, Mirror polished
Gasket NONE
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.
How to order *Part Name*Dimension*Material*Quantity*Polish requests for OD/ID

bpe fittings

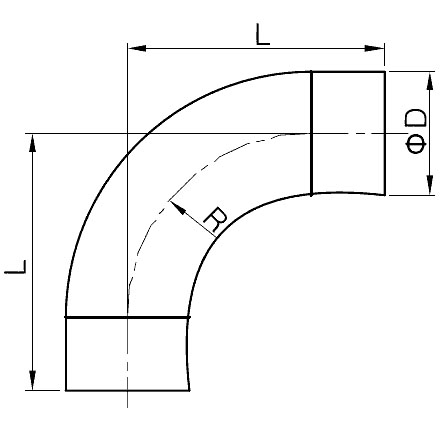

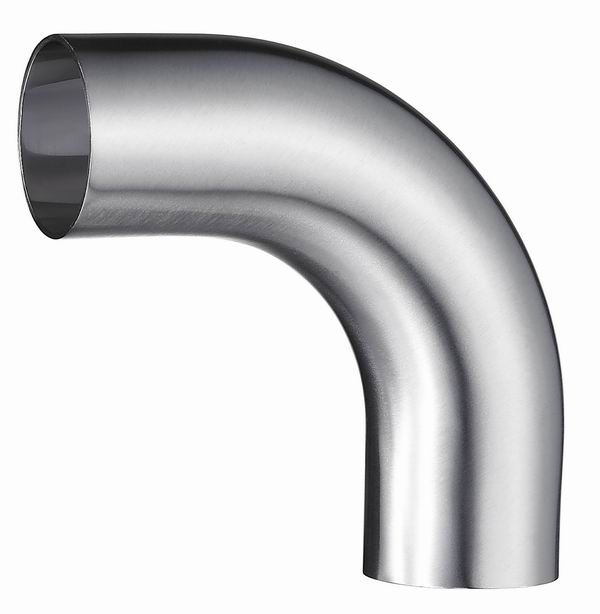

ASME BPE Weld Fittings聽– 90掳 Weld Elbow – Sanitary and Hygienic Fittings聽W1069

Norminal

L

Size in.

in.

mm

1/4″

2.625

66.7

3/8″

2.625

66.7

1/2″

3.000

76.2

3/4″

3.000

76.2

1″

3.000

76.2

1 1/2″

3.750

95.3

2″

4.750

120.7

2 1/2″

5.500

139.7

3″

6.250

158.8

4″

8.000

203.2

6″

11.500

292.1

bpe fittings

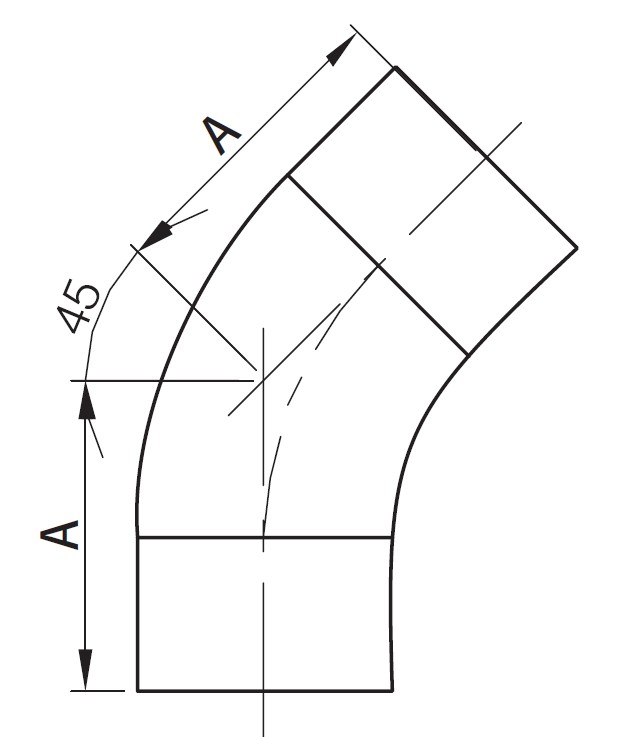

ASME BPE Weld Fittings聽– 45掳 Weld Elbow – Sanitary and Hygienic Fittings聽W1070

Norminal

A

Size in.

in.

mm

1/4″

2.000

50.8

3/8″

2.000

50.8

1/2″

2.250

57.2

3/4″

2.250

57.2

1″

2.250

57.2

1 1/2″

2.500

63.5

2″

3.000

76.2

2 1/2″

3.375

85.7

3″

3.625

92.1

4″

4.500

114.3

6″

6.250

158.8

bpe fittings 聽 聽 聽 聽 聽 bpe fittings

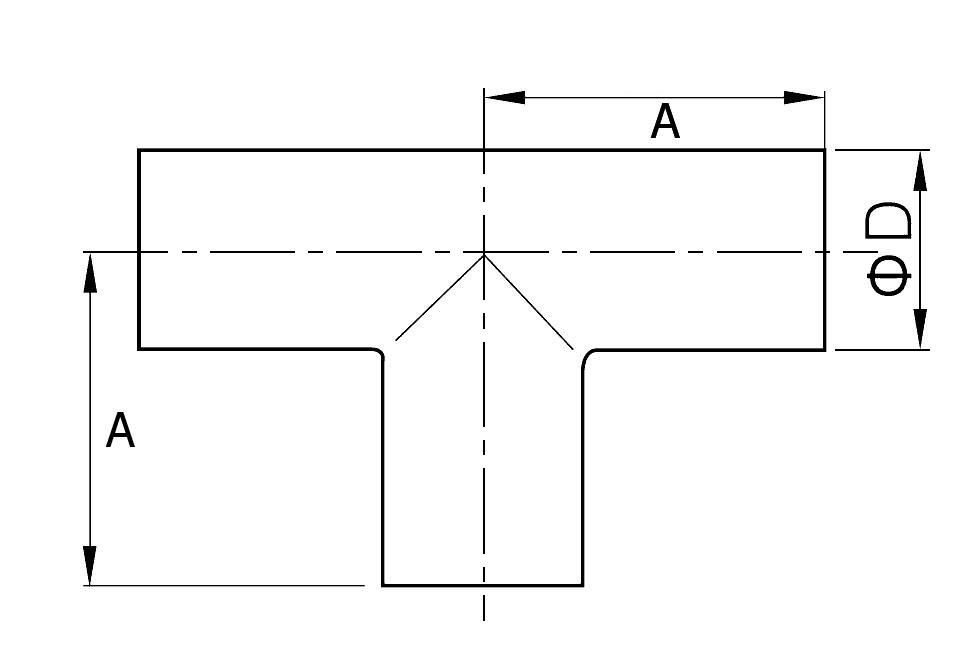

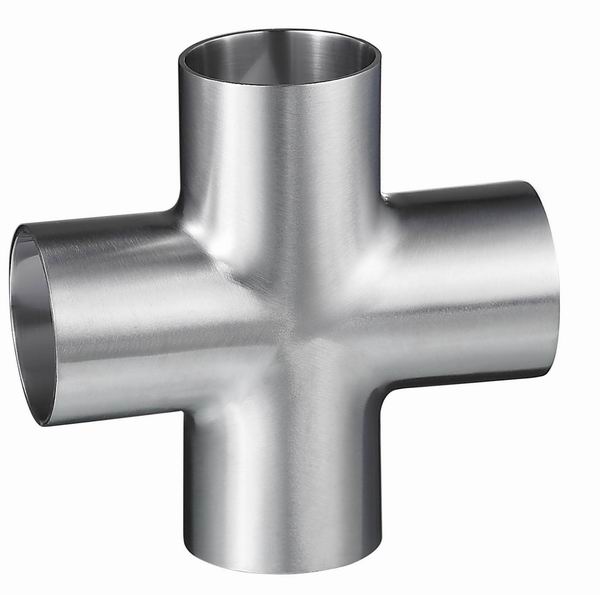

ASME BPE Weld Fittings – Weld Tee – Weld Cross- Sanitary and Hygienic Fittings聽W1072 /聽W1073

Norminal

A

L

Size in.

in.

mm

in.

mm

1/4″

1.750 44.5

1.750

44.5

3/8″

1.750 44.5

1.750

44.5

1/2″

1.875 47.6

1.875

47.6

3/4″

2.000 50.8

2.000

50.8

1″

2.125 54.0

2.125

54.0

1 1/2″

2.375 60.3

2.375

60.3

2″

2.875 73.0

2.875

73.0

2 1/2″

3.125 79.4

3.125

79.4

3″

3.375 85.7

3.375

85.7

4″

4.125 104.8

4.125

104.8

6″

5.625 142.9

5.625

142.9



bpe fittings

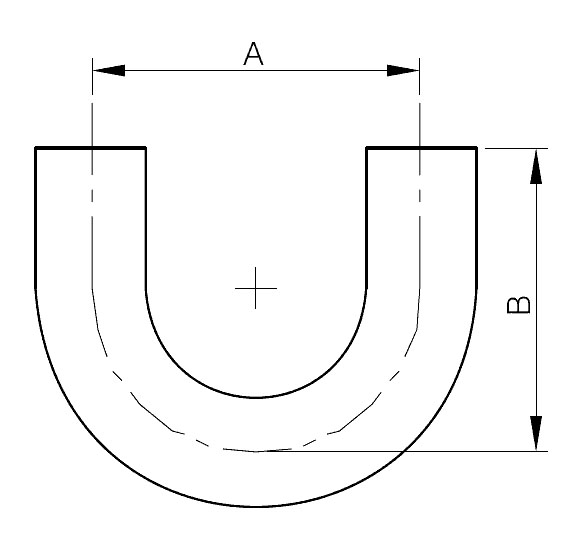

ASME BPE Weld Fittings聽– 180掳 Return Bend – Sanitary and Hygienic Fittings聽W1071

Norminal

A

B

Size in.

in.

mm

in.

mm

1/4″

4.500

114.3

2.265

66.7

3/8″

4.500

114.3

2.265

66.7

1/2″

4.500

114.3

3.000

76.2

3/4″

4.500

114.3

3.000

76.2

1″

3.000

76.2

3.000

76.2

1 1/2″

4.500

114.3

4.500

114.3

2″

6.000

152.4

5.000

127.0

2 1/2″

7.500

190.5

5.750

146.1

3″

9.000

228.6

6.500

165.1

4″

12.000

304.8

8.500

215.9

6″

18.000

457.2

11.500

292.1

*For more information and specification about聽ASME BPE Fittings,聽please聽contact us聽here.
