Sanitary DIN Union Fittings

Sanitary DIN Union Fittings are fabricated complying with DIN 11851 standard. Consisting of a round Slotted Nut, a Weld liner and Weld Male, and a o-ring seal.  Wellgreen sanitary offers DIN sanitary union fittings assembling with different types, and customized fabrication is available.



Sanitary DIN Union Fittings –  Sanitary Stainless Steel Hygienic Union

PRODUCT

Sanitary DIN Union Fittings consist of:

  • – Round Slotted Nut
  • – Welding Liner
  • – Welding Male
  • – Blank Liner
  • – Long Welding Male
  • – Blank Nut
  • – Long Welding Liner
  • – Sanitary Gasket

DIMENSION

DN10 – DN150

MATERIAL

T304, T316L, 1.4301, 1.4404

STANDARD

DIN 11851

SEALING GASKET

Silicone, EPDM, PTFE, Buna-N etc.

TEMPERATURE

-30°C / -22°F up to +120°C/ +248°F

APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

HOW TO ORDER
  • *Products Name
  • *Size
  • *Material
  • *Quantity
  • *Standard
  • *Polish requests

Sanitary DIN Union

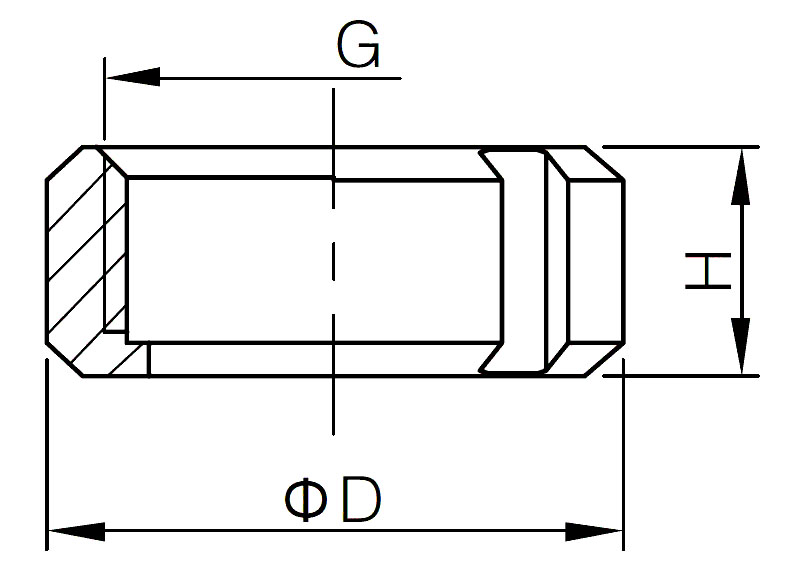

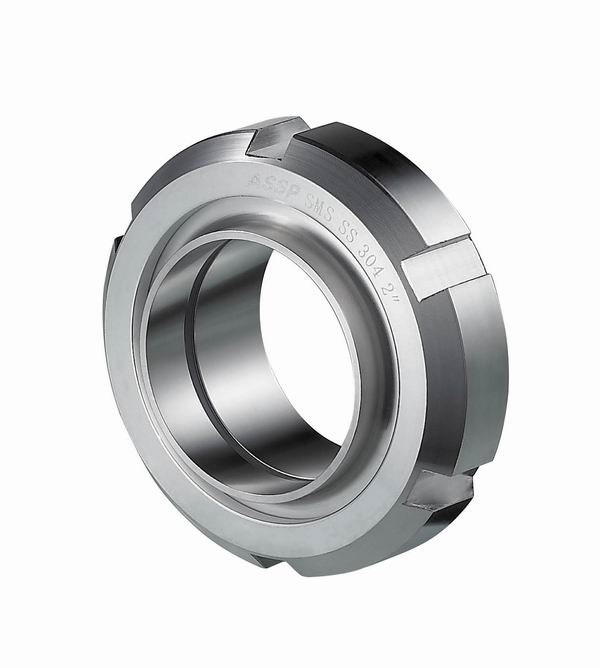

Dimension of Sanitary DIN Union Fittings – Round Slotted Nut W3018

Size

D

G

H

DN10

38

Rd28 X 1/8

18

DN15

44

Rd34 X 1/8

18

DN20

54

Rd44 X 1/6

20

DN25

62

Rd52 X 1/6

21

DN32

68

Rd58 X 1/6

21

DN40

78

Rd65 X 1/6

21

DN50

91

Rd78 X 1/6

22

DN65

110

Rd95 X 1/6

25

DN80

126

Rd110 X 1/4

27

DN100

146

Rd130 X 1/4

29

DN125

178

Rd160 X 1/4

32

DN150

210

Rd119 X 1/4

38

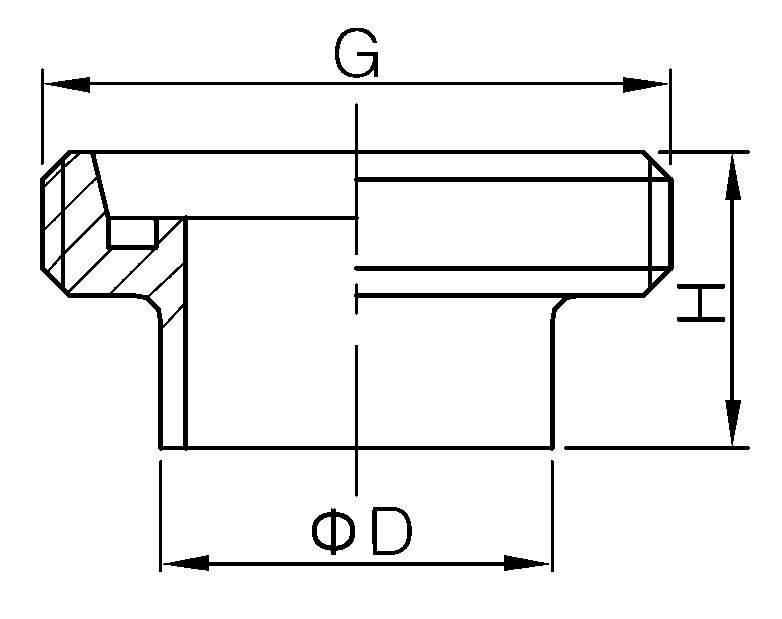

DIN Union - Welding Male



Dimension of Sanitary DIN Union Fittings – Welding Male W3015
Size Inch

D

t

G

H

DN25

1″

25.4

1.5

Rd52 X 1/6

29

DN32

1 1/4″

31.8

1.5

Rd58 X 1/6

32

DN40

1 1/2″

38.1

1.5

Rd65 X 1/6

33

DN50

2″

50.8

1.5

Rd78 X 1/6

35

DN65

2 1/2″

63.5

2

Rd95 X 1/6

40

DN80

3″

76.2

2

Rd110 X 1/4

45

DN100

4″

101.6

2

Rd130 X 1/4

54

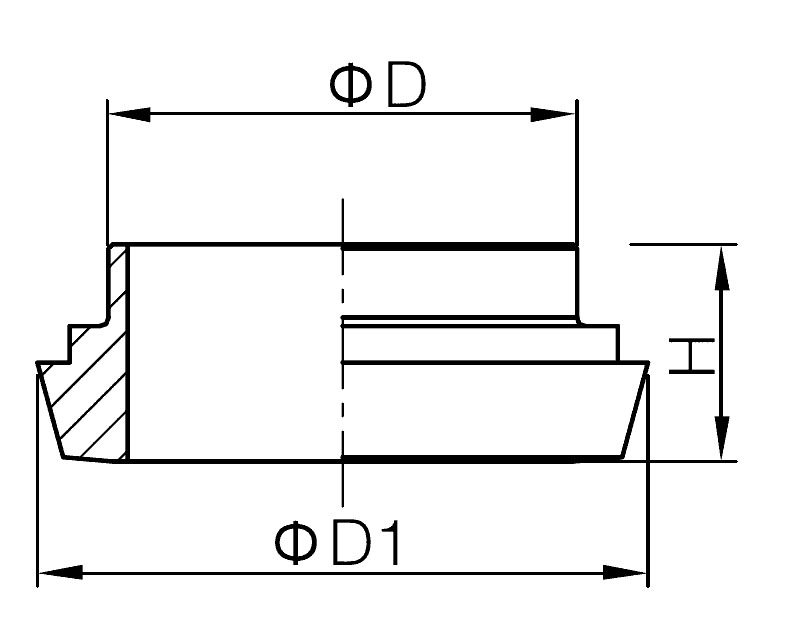

DIN Union - Welding Liner

Dimension of Sanitary DIN Union Fittings  – Welding Liner W3016
Size

Inch

D

t

D1

H
DN25

1″

25.4

1.5

44

22
DN32

1 1/4″

31.8

1.5

50

25
DN40

1 1/2″

38.1

1.5

56

26
DN50

2″

50.8

1.5

68

28
DN65

2 1/2″

63.5

2

86

32
DN80

3″

76.2

2

100

37
DN100

4″

101.6

2

121

44

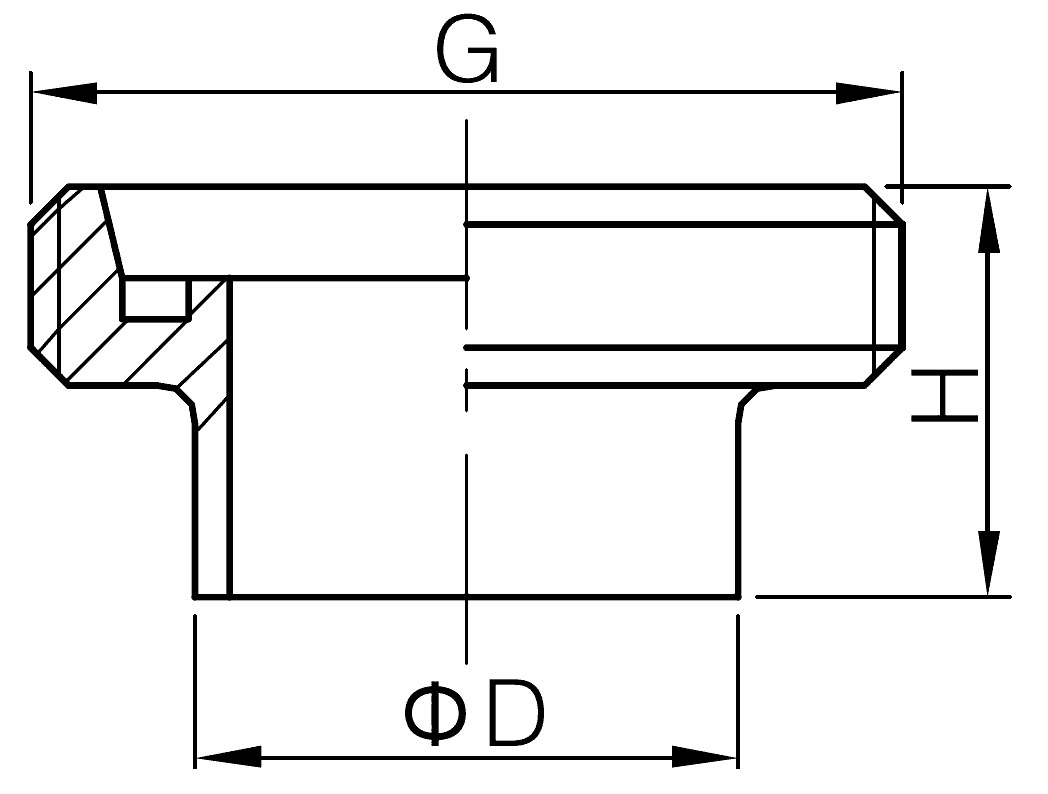

Long Welding Male -DIN11851

Dimension of Sanitary DIN Union Fittings – Long Welding Male -DIN11851 W3023
Size

D

G

H

DN10

15

Rd28 X 1/8

21

DN15

21

Rd34 X 1/8

21

DN20

25

Rd44 X 1/6

24

DN25

31

Rd52 X 1/6

29

DN32

37

Rd58 X 1/6

32

DN40

43

Rd65 X 1/6

33

DN50

55

Rd78 X 1/6

35

DN65

72

Rd95 X 1/6

40

DN80

87

Rd110 X 1/4

45

DN100

106

Rd130 X 1/4

54

DN125

132

Rd160 X 1/4

46

DN150

157

Rd190 X 1/4

50

Long Welding Liner -DIN11851

Dimension of Sanitary DIN Union Fittings – Long Welding Liner -DIN11851 W3022

Size

D

D1

H

DN10

15

22

17

DN15

21

28

17

DN20

25

36

18

DN25

31

44

22

DN32

37

50

25

DN40

43

56

26

DN50

55

68

28

DN65

72

86

32

DN80

87

100

37

DN100

106

121

44

DN125

132

150

34

DN150

157

176

37

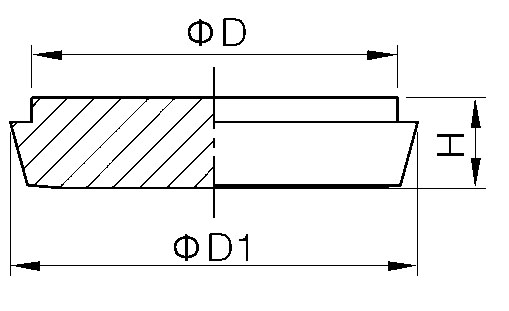

DIN Union - Blank

Dimension of Sanitary DIN Union Fittings  – Blank
Size

D

D1

H

DN15

24

28

9

DN20

30

36

11

DN25

35

44

13

DN32

41

50

13

DN40

48

56

13

DN50

61

68

15

DN65

79

86

16

DN80

93

100

16

DN100

114

121

20

DN125

137

150

22

DN150

163

176

24

*All dimension are in mm except specified.

*For more information and specification about Sanitary Union Fittings, please contact us here.
