Sanitary IDF Union

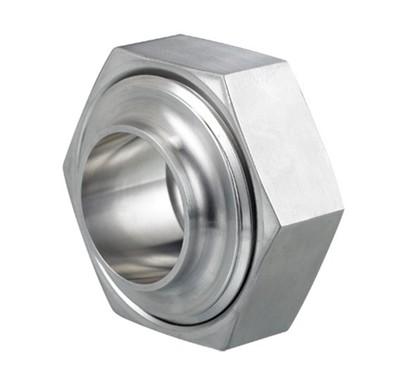

Sanitary ISO Union/IDF Union is a general sanitary union for Kaysuns sanitary. The material is forged and machined in CNC to make sure to get high purity surface and good precision, meet the cleanliness of the indutries Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech etc.








Sanitary ISO Union – Sanitary IDF Union – Sanitary Union – Stainless Steel Sanitary and Hygienic Fittings
PRODUCT Sanitary Unions – hexagonal nut, blank nut, welding male, welding liner, expanding male, expanding liner, gasket etc.
DIMENSION 1″ thru 4″
MATERIAL T304, T316L, EN 1.4301, EN 1.4404聽etc.
STANDARD ISO2852 , IDF, ISO1127
SEALING GASKET Silicone, EPDM, PTFE, Buna-N etc.
TEMPERATURE -30掳C / -22掳F up to +120掳C/ +248掳F
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size

*Material

*Quantity

*Standard

*Surface Finish



sanitary iso union

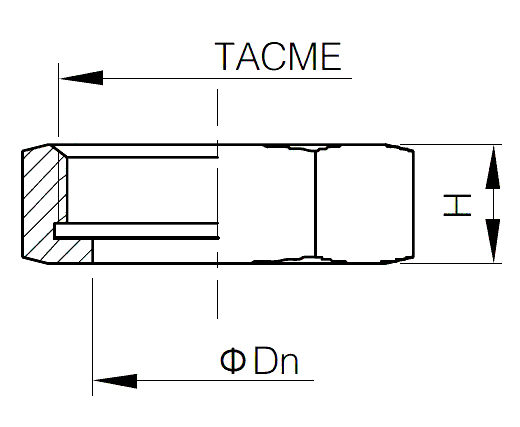

Dimension of Sanitary IDF Union – ISO Union – Hexagon Nut – Sanitary Fittings聽W3027

Size

D

TACME

H

1″

53.1

38.3 X 8

30

1 1/2″

69.3

51.8 X 8

30

2″

86.6

65.3 X 8

30

2聽 1/2″

103.9

78.8 X 8

30

3″

121.2

92.3 X 8

30

4″(ISO)

155.9

119.4 X 8

35

4″(IDF)

165.1

127.2 X 6

35



sanitary iso union

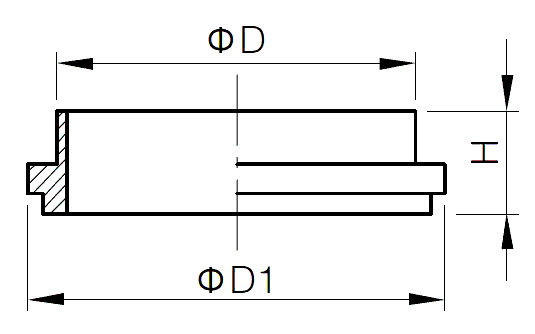

Dimension of Sanitary IDF Union – ISO Union聽– Welding Liner – Sanitary Fittings聽W3030

Size

D

D1

H

ISO

IDF

1″

25.6

25.4

33.8

21.5

1 1/2″

38.6

38.1

47

21.5

2″

51.6

50.8

60.5

21.5

2 1/2″

64.1

63.5

74

21.5

3″

76.7

76.2

87.5

21.5

4″(ISO)

102.5

114.4

21.5

4″(IDF)

101.6

120.6

30



sanitary iso union

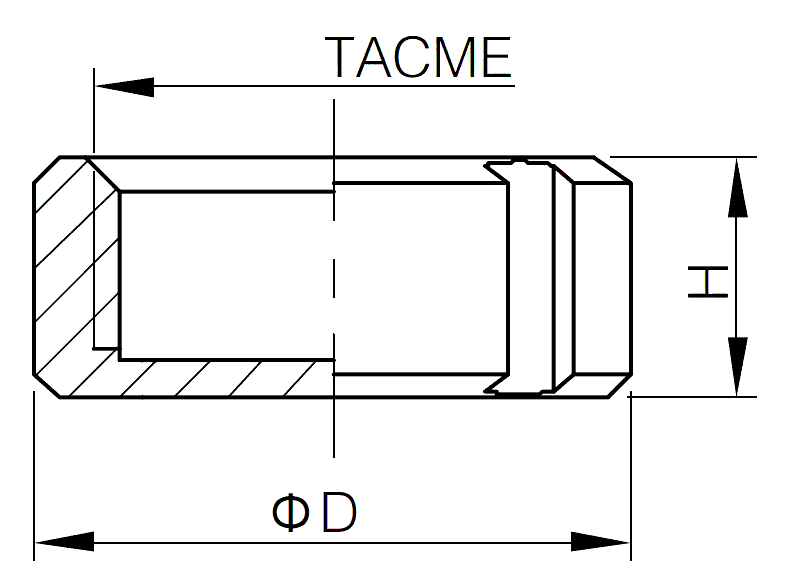

Dimension of Sanitary IDF Union – ISO Union聽– Blank Nut – Sanitary Fittings

Size

D

TACME

H

1″

48

38.3 X 8

30

1 1/2″

62

51.8 X 8

30

2″

76

65.3 X 8

30

2 1/2″

90

78.8 X 8

30

3″

103

92.3 X 8

30

4″(ISO)

133

119.4 X 8

35

4″(IDF)

142

127.2 X 6

35



sanitary iso union

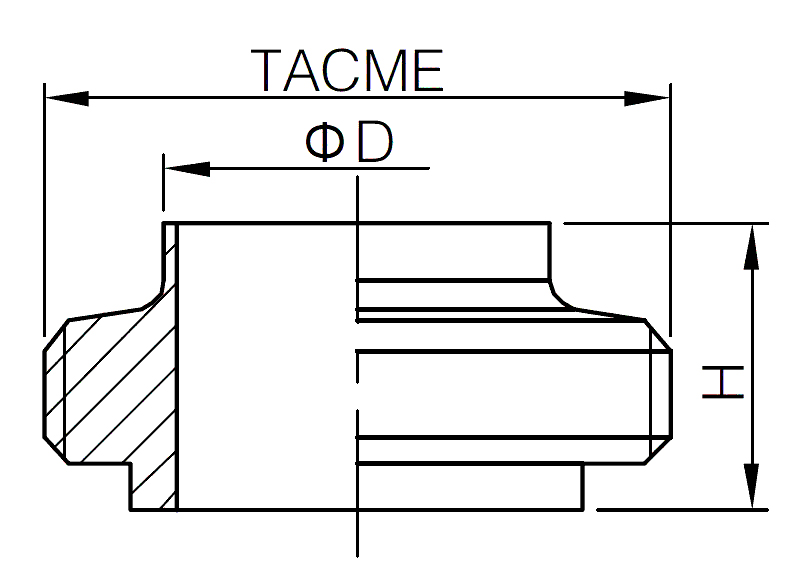

Dimension of Sanitary IDF Union – ISO Union聽– Welding Male – Sanitary Fittings聽W3029

Size

D

TACME

H

ISO

IDF

1″

25.6

25.4

37.13 X 8

21.5

1 1/2″

38.6

38.1

50.65 X 8

21.5

2″

51.6

50.8

64.16 X 8

21.5

2 1/2″

64.1

63.5

77.7 X 8

21.5

3″

76.7

76.2

91.2 X 8

21.5

4″(ISO)

102.5

118.4 X 8

21.5

4″(IDF)

101.6

125.9 X 6

30



sanitary iso union

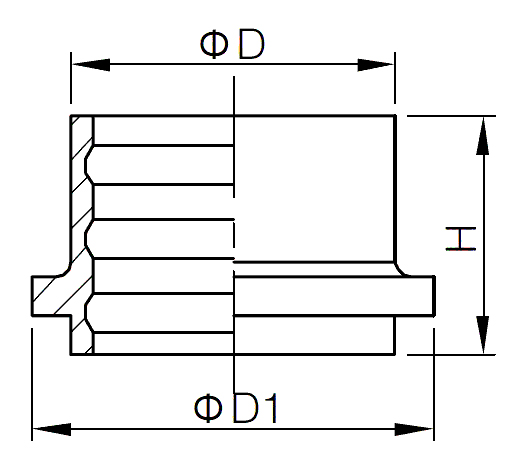

Dimension of Sanitary IDF Union – ISO Union聽– IDF Expanding Liner- Sanitary Fittings W3030

Size

D

D1

H

1″

25.5

33.8

20

1 1/2″

38.2

47

20

2″

50.9

60.5

25

2 1/2″

63.6

74

30

3″

76.3

84.5

30

4″

101.7

120.6

30



sanitary iso union

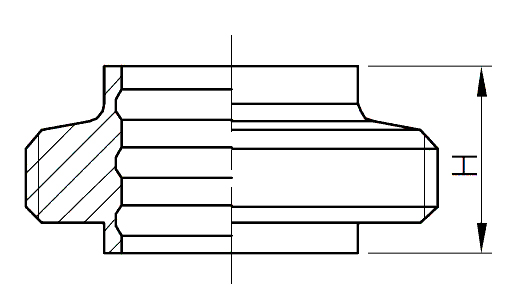

Dimension of Sanitary IDF Union – ISO Union– IDF Expanding Male- Sanitary Fittings聽W3028

Size

D

TACME

H

1″

29.2

37.13 X 8

16.5

1 1/2″

42.7

50.65 X 8

19.5

2″

56.2

64.16 X 8

19.5

2 1/2″

69.9

77.7 X 8

25

3″

82.6

91.2 X 8

30

4″

111.1

125.9 X 6

35



sanitary iso union

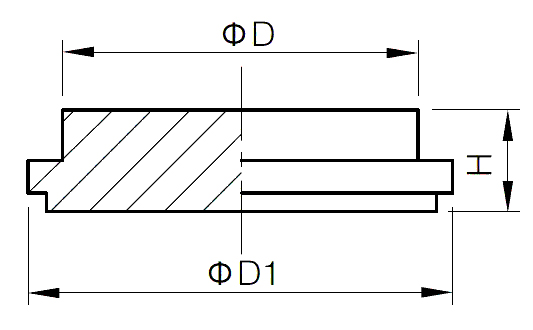

Dimension of Sanitary IDF Union – ISO Union聽– Blank Liner- Sanitary Fittings聽W3033

Size

D

D1

H

1″

29.5

33.8

11

1 1/2″

42.5

47

11

2″

56

60.5

11

2 1/2″

70

74

11

3″

82.3

87.5

11

4″(ISO)

109

114.1

11

4″(IDF)

111

120.6

11



sanitary iso union

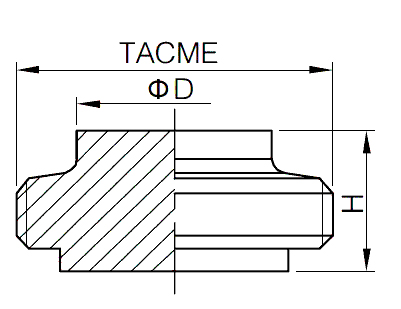

Dimension of Sanitary IDF Union – ISO Union – Blank Male- Sanitary Fittings聽W3034

Size

D

TACME

H

ISO

IDF

1″

25.6

25.4

37.13 X 8

21.5

1 1/2″

38.6

38.1

50.65 X 8

21.5

2″

51.6

50.8

64.16 X 8

21.5

2 1/2″

64.1

63.5

77.7 X 8

21.5

3″

76.7

76.2

91.2 X 8

21.5

4″(ISO)

102.5

118.4 X 8

21.5

4″(IDF)

101.6

125.9 X 8

30

*All dimension are in mm except specified.

**Contact us for more information about sanitary union.
