Sanitary Tri-Clamp Check Valve

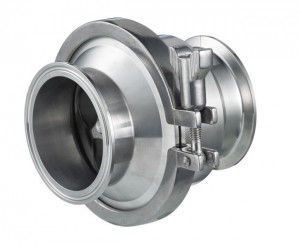

Sanitary Tri Clamp Check Valve is tri-clover connected sanitary check valve. Compare with weld check valve, it is much easier for installation and maintenance. Our tri clamp check valve is two splitted design, the size from 3/4″ to 4″ in stainless steel T316L or T304. Our sanitary check valves are made in local factory, it is possible to offer a fast delivery and low cost to reduce your purchase budget. Please believe our sanitary valves are your idea source.
Dimension of Sanitary Tri-Clamp Check Valve – DIN W5066
|
SIZE |
H | D11 2 | D2 | D |
t) |
|
DN15 DN20 DN25 |
100 100 110 |
18 19 22 23 28 29 |
34 34 50.5 |
72 72 72 |
1.5 1.5 1.5 |
|
DN32 DN40 DN50 |
110 110 107 |
34 35 40 41 52 53 |
50.5 50.5 64 |
87 87 100 |
1.5 1.5 1.5 |
|
DN65 DN80 DN100 |
126 134 140 |
70 – 85 – 104 – |
91 106 119 |
115 128 164 |
2.0 2.0 2.0 |
Dimension of Sanitary Tri-Clamp Check Valve – 3A,SMS,ISO,IDF,DS W5067
| SIZE | H | D1 | D2 |
D |
|
3/4” 1” 1 1/4” |
100 100 100 |
19 25.4 31.8 |
25.4 50.5 50.5 |
72 72 87 |
|
1 1/2” 2” 2 1/2” |
100 107 119 |
38.1 50.8 63.5 |
50.5 64 77.5 |
87 100 115 |
|
3” 3 1/2” 4” |
126 134 140 |
76.2 89 101.6 |
91 106 119 |
128 128 164 |
* For more information and specification about sanitary check valves, please contact us here.
