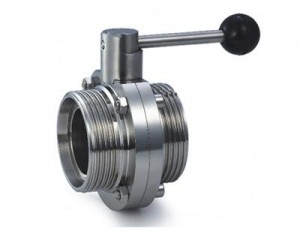

Sanitary SMS Butterfly Valve is SMS series sanitary butterfly valves, we offer it from DN15 to DN100 in stainless steel 1.4301, 1.4404, T304, T316L etc. Sanitary SMS butterfly valve is our strength sanitary valves , we make it by CNC machine to get high precision and high purity surface to meet the request of hygienic industries. It is idea choice for the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.




Specification and Dimension of Sanitary SMS Butterfly Valves

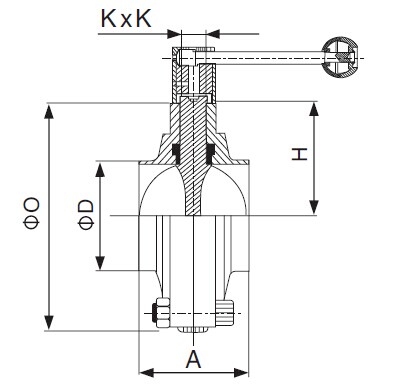

SMS Sanitary Welded Butterfly Valve

Dimension of Sanitary Welded Butterfly Valve – SMS聽Series聽W5012

Size

O

D

K x K

A

H

19

78.0

19.0

8.2*8.2

50.0

39.0

25

78.0

25.4

8.2*8.2

50.0

39.0

32

80.0

31.8

8.2*8.2

50.0

40.0

38

80.0

38.1

8.2*8.2

50.0

40.0

51

100.0

50.8

8.2*8.2

50.0

50.0

63

117.0

63.5

10.0*10.0

56.0

57.0

76

129.0

76.2

10.0*10.0

60.0

64.5

89

140.0

88.9

10.0*10.0

62.0

70.0

102

160.0

101.6

10.0*10.0

66.0

80.0

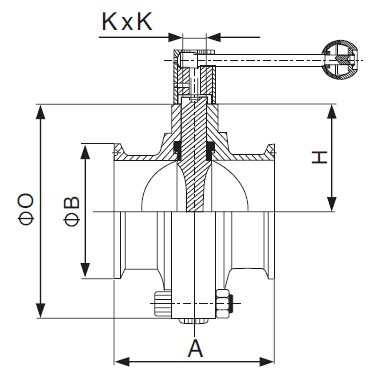

SMS Clamped Butterfly Valve

Dimension of Sanitary Clamped Butterfly Valve – SMS聽Series聽W5025

Size

O

D

K x K

A

H

19

78.0

50.5

8.2*8.2

68.0

39.0

25

78.0

50.5

8.2*8.2

68.0

39.0

32

80.0

50.5

8.2*8.2

72.0

40.0

38

80.0

50.5

8.2*8.2

72.0

40.0

51

100.0

64.0

8.2*8.2

72.0

50.0

63

117.0

77.5

10.0*10.0

84.0

57.0

76

129.0

91.0

10.0*10.0

84.0

64.5

89

140.0

106.0

10.0*10.0

86.0

70.0

102

160.0

119.0

10.0*10.0

90.0

80.0

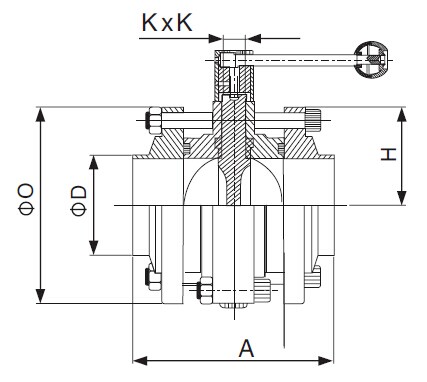

SMS Three-piece Butterfly Valve

Dimension of Sanitary Three-piece Butterfly Valve – SMS聽Series聽W5026

Size

O

D

K x K

A

H

19

78.0

19.1

8.2*8.2

100.0

39.0

25

78.0

25.2

8.2*8.2

100.0

39.0

32

80.0

31.8

8.2*8.2

100.0

40.0

38

80.0

38.1

8.2*8.2

100.0

40.0

51

100.0

50.8

8.2*8.2

100.0

50.0

63

117.0

63.5

10.0*10.0

100.0

57.0

76

129.0

76.2

10.0*10.0

100.0

64.5

89

140.0

88.9

10.0*10.0

100.0

70.0

102

160.0

101.6

10.0*10.0

108.0

80.0

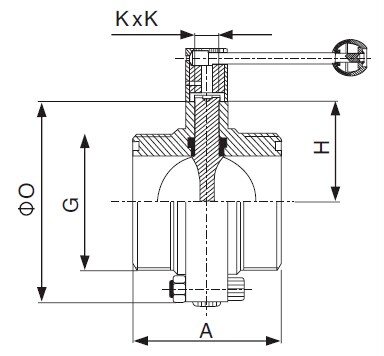

SMS Threaded Butterfly Valve

Dimension of Sanitary Threaded Butterfly Valve – SMS聽Series聽W5005

Size

O

G

K x K

A

H

19

78.0

RD34*1/8

8.2*8.2

68.0

39.0

25

78.0

RD40*1/6

8.2*8.2

68.0

39.0

32

80.0

RD48*1/6

8.2*8.2

68.0

40.0

38

80.0

RD60*1/6

8.2*8.2

68.0

40.0

51

100.0

RD70*1/6

8.2*8.2

76.0

50.0

63

117.0

RD85*1/6

10.0*10.0

80.0

57.0

76

129.0

RD98*1/6

10.0*10.0

80.0

64.5

89

140.0

RD110*1/6

10.0*10.0

84.0

70.0

102?

160.0

RD125*1/6

10.0*10.0

90.0

80.0

102?

160.0

RD132*1/6

10.0*10.0

90.0

80.0

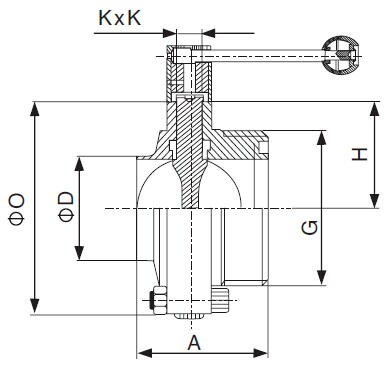

SMS Welded x Threaded Butterfly Valve

Dimension of Sanitary Welded x Threaded Butterfly Valve – SMS聽Series

Size

O

D

G

K x K

A

H

19

78.0

19.1

RD34*1/8

8.2*8.2

59.0

39.0

25

78.0

25.4

RD40*1/6

8.2*8.2

59.0

39.0

32

80.0

31.8

RD48*1/6

8.2*8.2

59.0

40.0

38

80.0

38.1

RD60*1/6

8.2*8.2

59.0

40.0

51

100.0

50.8

RD70*1/6

8.2*8.2

63.0

50.0

63

117.0

63.5

RD85*1/6

10.0*10.0

68.0

57.0

76

129.0

76.2

RD98*1/6

10.0*10.0

70.0

64.5

89

140.0

88.9

RD110*1/6

10.0*10.0

73.0

70.0

102?

160.0

101.6

RD125*1/6

10.0*10.0

78.0

80.0

102?

160.0

101.6

RD132*1/6

10.0*10.0

78.0

80.0

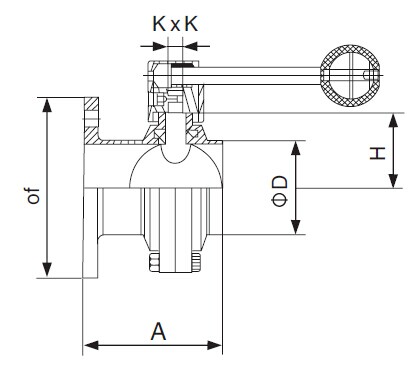

SMS Flanged x threaded Butterfly Valve

Dimension of Sanitary Square-Flanged x threaded Butterfly Valve – SMS聽Series

Size

O

D

Of

K x K

A

H

19

78.0

19.1

100*100

8.2*8.2

75.0

39.0

25

78.0

25.4

100*100

8.2*8.2

75.0

39.0

32

80.0

31.8

100*100

8.2*8.2

75.0

40.0

38

80.0

38.1

100*100

8.2*8.2

75.0

40.0

51

100.0

50.8

100*100

8.2*8.2

75.0

50.0

* All dimensions are in mm expect specified.

* For more information about sanitary SMS butterfly valves, please contact us when you feel free.
