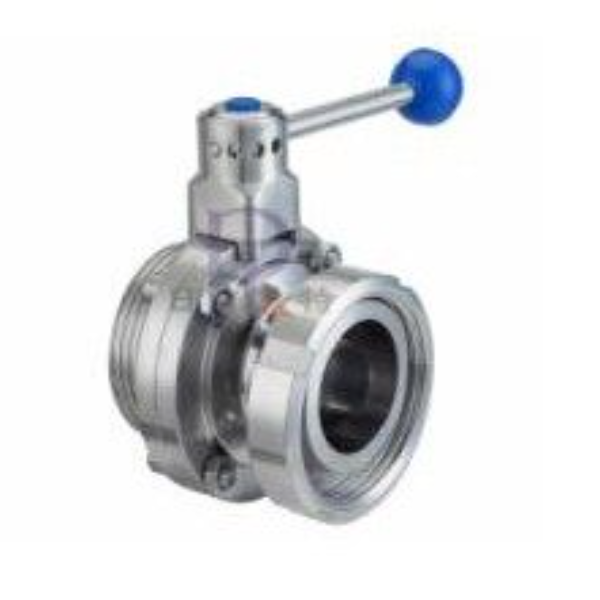

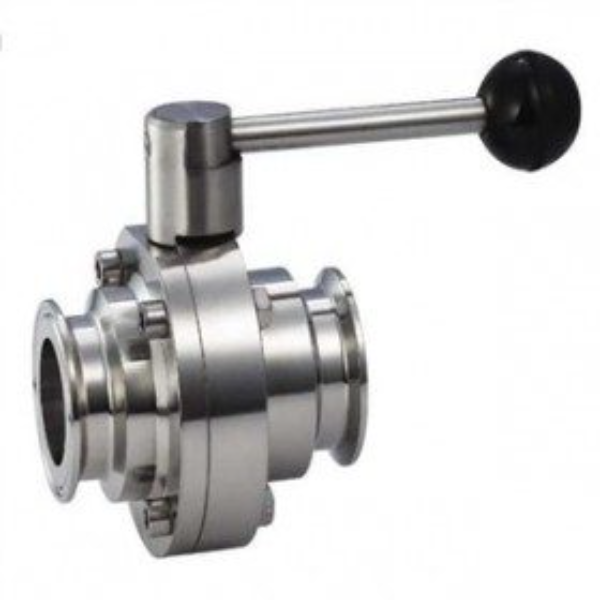

Sanitary Butterfly type Ball Valve


Sanitary Butterfly Type Ball Valve

Sanitary Butterfly type ball Valve is a new design sanitary ball valve. Its shape likes butterfly valve type, but the closing-opening part is a ball which is rotary to control the valve opening and closing. Sanitary butterfly ball valve is made in stainless steel 1.4301, 1.4404 or T316L, T304 ete. We are ability to provides butterfly type ball valve with tri-clamp, welded, threaded connection etc, and operation can be manual, air operated, electric operated etc. Wellgreen sanitary offers fully line of sanitary valves聽for 聽food processing, beverages, fruit juices, wine, biopharmaceutical聽etc.

聽聽聽 Valve types:

  • 聽聽 聽 Manual Butterfly type Ball Valve
  • 聽聽 聽 Pneumatic Butterfly type Ball Valve
  • 聽聽聽聽 Electric Butterfly type Ball Valve

聽聽聽 Strength:

  • Stainless steel T316L, T304, 1.4301, 1.4404 or specified.
  • Small fluid resistance and drainable.
  • Simple and compact structure, light weight, strong and reliable design.
  • Low-torque, 90掳 rotation, facilitate of remote controlling.
  • Variety connection of tri-clamp, welded, threaded etc.
  • Surface finishing: External surface sand blasting, Internal surface Ra 0.8?m or on request.
  • Operation of manual, air, electric actuator etc available.
  • Sealing materials complies with FDA 177.2600.
  • Standard of 3A,DIN,SMS,RJT etc.

聽聽聽 Application: 聽聽聽 Applied to processing control and piping system, especially for brewery and winery fermentation tank etc.




Sanitary Butterfly type Ball Valves Specification

PRODUCT Sanitary Butterfly type Ball Valve
DIMENSION 1/2″ ~ 4″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A,DIN,SMS,ISO,IDF,BPE,RJT,DS etc.
SEALING GASKET PTFE, EPDM, FPM, SILICONE etc.
TEMPERATURE -30掳C / -22掳F up to +150掳C/ +302掳F
Pressure 0-10bar
Operation Manual, Pneumatic, Electric
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage, Biotech, Cosmetics etc.

How to order *Part Name*Size*Material *Quantity *Standard

Sanitary Welded butterfly-type ball valve -DIN Series

Dimension of Sanitary Welded butterfly-type ball valve -DIN Series聽W5047

Size

D1

D2

L

L1

H

t

KxK

DN15

18

19

72

126

86

1.5

8*8

DN20

22

23

72

126

86

1.5

8*8

DN25

28

29

72

126

90

1.5

8*8

DN32

34

35

80

126

92

1.5

8*8

DN40

40

41

84

133

104

1.5

10*10

DN50

52

53

98

144

113

1.5

10*10

DN65

70

120

160

131

2.0

11*11

DN80

85

140

220

144

2.0

11*11

DN100

104

164

284

161

2.0

14*14



Dimension of Sanitary Welded Butterfly-type Ball Valve -3A,SMS,ISO,IDF,DS Series聽W5048

Size

D

L

L1

H

t

KxK

3/4鈥

19

72

126

86

1.5

8*8

1鈥

25.4

72

126

90

1.5

8*8

1 1/4鈥

31.8

80

126

92

1.5

8*8

1 1/2鈥

38

84

133

104

1.5

10*10

2

50.8

98

144

113

1.5

10*10

2 1/2鈥

63.5

116

160

128

2.0

11*11

3鈥

76.2

132

220

138

2.0

11*11

3 1/2鈥

89

140

220

144

2.0

11*11

4鈥

101.6

164

284

161

2.0

14*14

Sanitary Clamped Butterfly-type Ball Valve -DIN Series

Dimension of Sanitary Clamped Butterfly-type Ball Valve -DIN Series聽W5045

Size

D

L

L1

H

t

KxK

DN15

34

72

126

86

1.5

8*8

DN20

34

72

126

86

1.5

8*8

DN25

50.5

72

126

90

1.5

8*8

DN32

50.5

80

126

92

1.5

8*8

DN40

50.5

84

133

104

1.5

10*10

DN50

64

98

144

113

1.5

10*10

DN65

91

120

160

131

2.0

11*11

DN80

106

140

220

144

2.0

11*11

DN100

119

164

284

161

2.0

14*14



Dimension of Sanitary Clamped Butterfly-type Ball Valve-3A,SMS,ISO,IDF,DS聽Series聽W5046

Size

D

L

L1

H

KxK

3/4鈥

25.4

72

126

86

8*8

1鈥

50.5

72

126

90

8*8

1 1/4鈥

50.5

80

126

92

8*8

1 1/2鈥

50.5

84

133

104

10*10

2

64

98

144

113

10*10

2 1/2鈥

77.5

116

160

128

11*11

3鈥

91

132

220

138

11*11

3 1/2鈥

106

140

220

144

11*11

4鈥

119

164

284

161

14*14

Sanitary Threaded Butterfly-type Ball Valve聽-DIN Series

Dimension of Sanitary Threaded Butterfly-type Ball Valve聽-DIN Series聽W5051

Size

G

L

L1

H

KxK

DN15

Rd33.5*1/8

72

126

86

8*8

DN20

Rd43.5*1/6

72

126

86

8*8

DN25

Rd51.5*1/6

72

126

90

8*8

DN32

Rd57.5*1/6

80

126

92

8*8

DN40

Rd64.5*1/6

84

133

104

10*10

DN50

Rd77.5*1/6

98

144

113

10*10

DN65

Rd94.5*1/6

120

160

131

11*11

DN80

Rd109.3*1/4

140

220

144

11*11

DN100

Rd129.3*1/4

164

284

161

14*14

Sanitary Threaded Butterfly-type Ball Valve聽-3A Series

Dimension of Sanitary Threaded Butterfly-type Ball Valve聽-3A Series聽W5053

Size

D

L

L1

H

KxK

1鈥

37.1*1/8Acme

72

126

90

8*8

1 1/4鈥

45.9*1/8Acme

80

126

92

8*8

1 1/2鈥

50.6*1/8Acme

84

133

104

10*10

2

64.1*1/8Acme

98

144

113

10*10

2 1/2鈥

77.6*1/8Acme

116

160

128

11*11

3鈥

91.1*1/8Acme

132

220

138

11*11

4鈥

119.2*1/6Acme

164

284

161

14*14

Sanitary Threaded Butterfly-type Ball Valve聽-SMS Series

Dimension of Sanitary Threaded Butterfly-type Ball Valve聽-SMS Series聽W5052

Size

D

L

L1

H

KxK

3/4鈥

Rd33.5*1/8

72

126

86

8*8

1鈥

Rd39.5*1/6

72

126

90

8*8

1 1/4鈥

Rd47.5*1/6

80

126

92

8*8

1 1/2鈥

Rd59.5*1/6

84

133

104

10*10

2

Rd69.5*1/6

98

144

113

10*10

2 1/2鈥

Rd84.5*1/6

116

160

128

11*11

3鈥

Rd97.5*1/6

132

220

138

11*11

3 1/2鈥

Rd104.3*1/6

140

220

144

11*11

4鈥(S)

Rd124.3*1/4

164

284

161

14*14

4鈥(L)

Rd131.3*1/6

164

284

161

14*14

* For more information about sanitary butterfly type ball valve, please contact us when you feel free.

Sanitary Threaded Diaphragm Valves

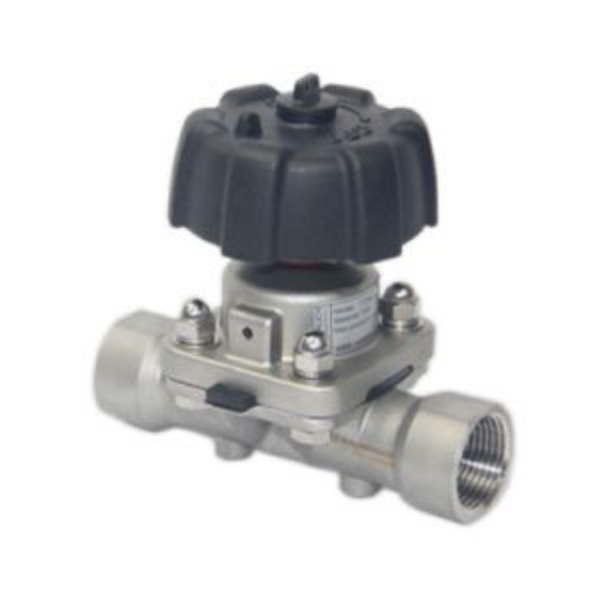

Sanitary Threaded Diaphragm Valve

Sanitary Threaded Diaphragm Valve is female threaded connected diaphragm valve. Our sanitary threaded diaphragm valves with DIN, SMS, ISO, IDF, RJT series etc. The valve body is forged and materials in stainless steel T304 and T316L. We offers sanitary threaded diaphragm valve from 1/2″ to 2″, it can be manual or air operation. Wellgreen supply different sanitary valves to meet variety needs for hygienic industries such as Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Features:

  • 聽聽 聽 Valve body is forged of stainless steel T316L, 1.4404 or specified.
  • 聽聽 聽 Internal surface is up to Ra 0.4?m, external shot blasting.
  • 聽聽 聽 Variety connection of butt weld, tri-clamp, threaded etc.
  • 聽聽 聽 PTFE/EPDM composite diaphragm to FDA177.2600.
  • 聽聽 聽 Different operation of manual, air, electirc available.



聽聽聽 Application:

聽聽聽 Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.




Sanitary Threaded Diaphragm Valves Specification

PRODUCT Sanitary Threaded Diaphragm Valve
DIMENSION 1/2″ ~ 2″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD DIN, SMS, ISO, IDF, BPE, RJT etc.
SEALING GASKET PTFE, EPDM, Silicone, FPM etc.
TEMPERATURE -20掳C / -4掳F up to +135掳C/ +275掳F
Working Pressure 0-10bar
Operation Manual, Pneumatic
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size*Material

*Quantity

*Standard





Sanitary Threaded Diaphragm Valve - DIN Series

Dimension of Sanitary Threaded Diaphragm Valve – DIN Series

Size

A

G

H

DN20

153.0

RD44*1/6

91/102

DN25

165.0

RD52*1/6

110/123

DN32

180.0

RD58*1/6

129/138

DN40

190.0

RD65*1/6

139/159

DN50

222.0

RD78*1/6

159/186



Sanitary Threaded Diaphragm Valve - sms Series

Dimension of Sanitary Threaded Diaphragm Valve – SMS Series

Size

A

B

H

25

161.0

RD40*1/6

110/123

32

176.0

RD48*1/6

129/138

38

190.0

RD60*1/6

139/159

51

220.0

RD70*1/6

159/186



Sanitary Threaded Diaphragm Valve -iso-idf Series

Dimension of Sanitary Threaded Diaphragm Valve – ISO/IDF Series

Size

A

G

H

1″

168.0

37.1x8TACME

110/123

11/2″

193.0

50.6x8TACME

139/159

2″

223.0

64.2x8TACME

159/186



Sanitary Threaded Diaphragm Valve -rtj Series

Dimension of Sanitary Threaded Diaphragm Valve – RJT Series

Size

A

G

H

1″

179.0

45.7×1/8TWHIT

110/123

11/2″

204.0

58.4×1/8TWHIT

139/159

2″

234.0

72.7×1/8TWHIT

159/186

* If you didn’t find your dimension of Sanitary Threaded Diaphragm Valves here, please contact us for details.



Sanitary Tri-Clamp Diaphragm Valves

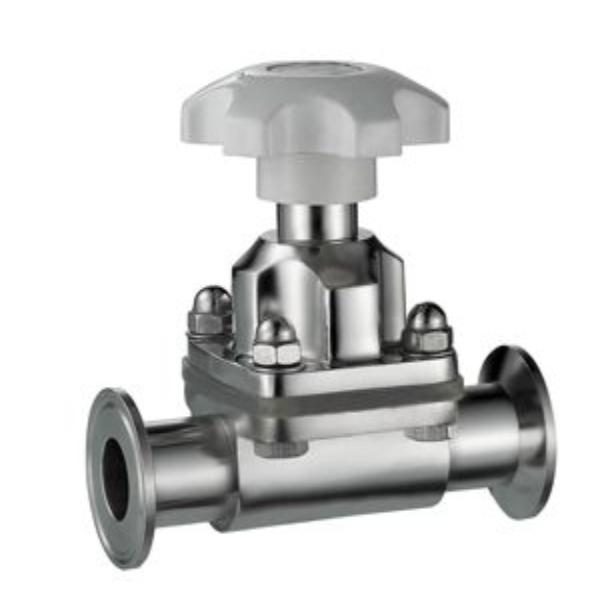

Sanitary Tri-Clamp Diaphragm Valve

Sanitary Tri-Clamp Diaphragm Valve is tri-clover clamp connected diaphragm valve. Generally, our sanitary diaphragm valves are forged valve bodies and materials in stainless steel T304 and T316L. We offers sanitary tri-clamp diaphragm valve from 1/2″ to 2″, it can be manual or air operation. Wellgreen supply different sanitary valves to meet variety needs for hygienic industries such as Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



聽聽 聽Features:

  • 聽聽 聽 Valve body is forged of stainless steel T316L, 1.4404 or specified.
  • 聽聽 聽 Internal surface is up to Ra 0.4?m, external shot blasting.
  • 聽聽 聽 Variety connection of butt weld, tri-clamp, threaded etc.
  • 聽聽 聽 PTFE/EPDM composite diaphragm to FDA177.2600.
  • 聽聽 聽 Different operation of manual, air, electric available.



聽聽聽 Application:

聽聽聽 Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharm etc.




Sanitary Tri-Clamp Diaphragm Valves Specification

PRODUCT Sanitary Tri-Clamp Diaphragm Valve
DIMENSION 1/2″ ~ 2″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A,DIN,SMS,ISO,IDF,BPE,RJT etc.
SEALING GASKET PTFE, EPDM, Silicone, FPM etc.
TEMPERATURE -20掳C / -4掳F up to +135掳C/ +275掳F
Working Pressure 0-10bar
Operation Manual, Pneumatic
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size*Material

*Quantity

*Standard



Sanitary Clamped Diaphragm Valve - DIN Series

Dimension of Sanitary Tri-Clamp Diaphragm Valve – DIN Series

Size

A

D

H

DN15

107.0

34.0

88/99

DN20

116.0

34.0

91/102

DN25

125.0

50.5

110/123

DN32

146.0

50.5

129/138

DN40

158.0

50.5

139/159

DN50

190.0

64.0

159/186



Sanitary Clamped Diaphragm Valve - sms Series

Dimension of Sanitary聽Tri-Clamp聽Diaphragm Valve – SMS Series

Size

A

B

H

25

125.0

50.5

110/123

32

146.0

50.5

129/138

38

158.0

50.5

139/159

51

190.0

64.0

159/186



Sanitary Clamped Diaphragm Valve - 3a Series

Dimension of Sanitary聽Tri-Clamp聽Diaphragm Valve – 3A Series

Size

A

B

H

1/2鈥

107.0

25.4

88/99

3/4鈥

116.0

25.4

91/102

1鈥

125.0

50.5

110/123

1 1/2鈥

158.0

50.5

139/159

2鈥

190.0

64.0

159/186



Sanitary Clamped Diaphragm Valve -iso-idf Series

Dimension of Sanitary聽Tri-Clamp聽Diaphragm Valve – ISO/IDF Series

Size

A

D

H

3/4″

116.0

25.4

88/99

1″

125.0

50.5

110/123

11/4″

146.0

50.5

129/138

11/2″

158.0

50.5

139/159

2″

190.0

64.0

159/186

* If you didn’t find your dimension of Sanitary Tri-Clamp Diaphragm Valves here, please contact us for details.

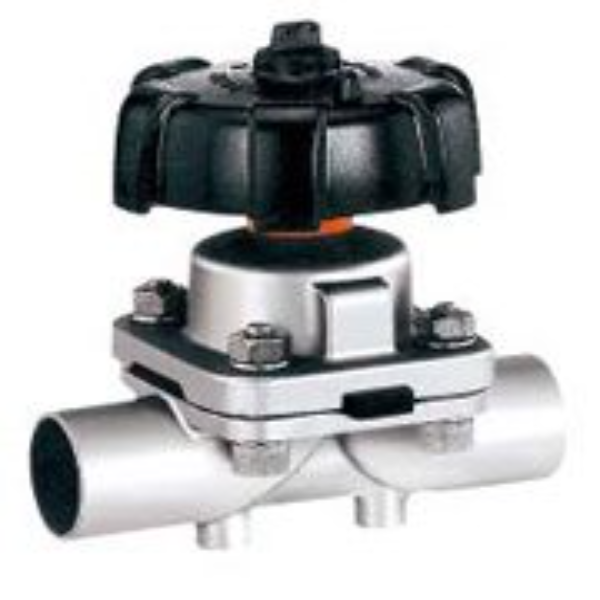

Sanitary Welded Diaphragm Valve


Sanitary Welded Diaphragm Valve

Sanitary Welded Diaphragm Valve is butt weld connected diaphragm valve, it is a general valve type. The valve body is forged in stainless steel T304 and T316L, and size from 1/2″ to 2″. Wellgreen provides sanitary welded diaphragm valves with manual operated, pneumatic operated and electric operated etc. We are able to offer every sanitary valves to meet variety needs for hygienic industries such as Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Features:

  • 聽聽 聽 Valve body is forged of stainless steel T316L, 1.4404 or specified.
  • 聽聽 聽 Internal surface is up to Ra 0.4?m, external shot blasting.
  • 聽聽 聽 Dimension to DIN, SMS, 3A, ISO/IDF are available.
  • 聽聽 聽 PTFE/EPDM composite diaphragm to FDA177.2600.
  • 聽聽 聽 Different operation of manual, air, electric available.



Operations:

  • 聽Manual Welded Diaphragm Valve
  • 聽Pneumatic Welded Diaphragm Valve
  • 聽Electric Welded Diaphragm Valve



Application:

聽聽聽 Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharm etc.




Sanitary Welded Diaphragm Valves Specification

PRODUCT Sanitary Welded Diaphragm Valve
DIMENSION 1/2″ ~ 2″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS, ISO, IDF, BPE, RJT etc.
SEALING GASKET PTFE, EPDM, Silicone, FPM etc.
TEMPERATURE -20掳C / -4掳F up to +135掳C/ +275掳F
Working Pressure 0-10bar
Operation Manual, Pneumatic
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name

*Size

*Material

*Quantity

*Standard



Sanitary Welded Diaphragm Valve - DIN Series

Dimension of Sanitary Welded Diaphragm Valve – DIN Series

Size

A

D

H

DN15

100.0

18.0

88/99

DN25

125.0

28.0

110/123

DN32

140.0

34.0

129/138

DN40

150.0

40.0

139/159

DN50

180.0

52.0

159/186



Sanitary Welded Diaphragm Valve - sms Series

Dimension of Sanitary Welded Diaphragm Valve – SMS Series

Size

A

D

H

25

125.0

25.4

110/123

32

140.0

31.8

129/138

38

150.0

38.1

139/159

51

180.0

50.8

159/186



Sanitary Welded Diaphragm Valve - 3a Series

Dimension of Sanitary Welded Diaphragm Valve – 3A聽Series

Size

A

D

H

1/2鈥

100.0

12.7

88/99

3/4鈥

100.0

19.0

88/99

1鈥

125.0

25.4

110/123

1 1/4鈥

140.0

31.8

129/138

1 1/2鈥

150.0

38.1

139/159

2鈥

180.0

50.8

159/186



Sanitary Welded Diaphragm Valve - ISO/IDF聽Series

Dimension of Sanitary Welded Diaphragm Valve – ISO/IDF聽Series

Size

A

D

H

3/4鈥

100.0

19.0

88/99

1鈥

125.0

25.4

110/123

1 1/4鈥

140.0

31.8

129/138

1 1/2鈥

150.0

38.1

139/159

2鈥

180.0

50.8

159/186

* If you couldn’t find your dimension of Sanitary Welded Diaphragm Valve here, please contact us here for more informaiton.



Sanitary Threaded x Nut Butterfly Valve


Sanitary Threaded x Nut Butterfly Valve

Sanitary Threaded x Nut Butterfly Valve is one end threaded, one end nut sanitary butterfly valves. we manufacture and supply it from 1/2″ to 6″ in stainless steel T304, T316L etc. Sanitary threaded x nut butterfly valve is comply with 3A, IDF, SMS, DIN, ISO, DS, RJT standards, with excellent precision and high purity surface, it’s a commonly and widely used butterfly valve for hygienic industries. Wellgreen provides quality sanitary valves for your hygienic solutions.



Features:

  • Forged valve body 鈥 stainless steel T304, T316L.
  • Simple and robust design.
  • Low pressure losing.
  • Renewable design of valve body.
  • Every connection of flanged, butt welded,聽tri-clamp, threaded etc.
  • Different series of DIN, 3A, SMS, ISO, IDF, RJT, DS on request.
  • Electric actuator brand on request.
  • Sealing materials conform to FDA 177.2600.

Applicaiton:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage,Biotech ,Cosmetics etc.




Sanitary Threaded x Nut Butterfly Valve -din

Dimension of Sanitary Threaded x Nut Butterfly Valve – DIN聽Series聽W5016

Size

DN

D

L

L1

H

G

K x K

DN10

10

74

73

130

86

RD28x1/8

8×8

DN15

15

74

73

130

86

RD34x1/8

8×8

DN20

19

74

74

130

86

RD44x1/6

8×8

DN25

25

74

78

130

86

RD52x1/6

8×8

DN32

31

80

83

130

90

RD58x1/6

8×8

DN40

37

87

85

130

92

RD65x1/6

8×8

DN50

49

107

89

130

104

RD78x1/6

8×8

DN65

66

124

98

160

113

RD95x1/6

10×10

DN80

81

139

107

160

123.5

RD110x1/4

10×10

DN100

100

159

126

160

133.5

RD130x1/4

10×10

DN125

125

190

137

200

146.5

RD160x1/4

12×12

DN150

150

220

155

200

161.5

RD190x1/4

12×12



Sanitary Threaded x Nut Valve - SMS聽Series

Dimension of Sanitary Threaded x Nut Butterfly Valve – SMS聽Series聽W5017

Size

DN

D

L

L1

H

G

K x K

?19

16

74

68

130

86

RD36x1/8

8×8

?25

22.4

74

71

130

86

RD40x1/6

8×8

?32

28.8

78

76

130

86

RD48x1/6

8×8

?38

35.1

87

78

130

90

RD80x1/6

8×8

?51

47.8

99

82

130

102

RD70x1/6

8×8

?63

59.5

114

87

130

109

RD85x1/6

10×10

?76

72.2

127

89

160

115

RD98x1/6

10×10

?89

85

139

92

160

123.5

RD105x1/6

10×10

?102(S)

97.6

159

103

160

131

RD125x1/4

10×10

?102(L)

97.6

159

103

160

133.5

RD132x1/6

10×10



Sanitary Threaded x Nut Butterfly Valve - IDF/ISO聽Series

Dimension of Sanitary Threaded x Nut Butterfly Valve – IDF/ISO聽Series聽W5018

Size

DN

D

L

L1

H

G

K x K

1″

22.4

74

80

130

86

37.1×1/8Acme

8×8

1 1/2″

35.1

87

82

130

90

50.6×1/8Acme

8×8

2″

47.8

107

86

130

102

64.1×1/8Acme

8×8

2 1/2″

59.5

124

90

130

109

77.6×1/8Acme

10×10

3″

72.2

124

92

160

115

91.1×1/8Acme

10×10

4″(ISO)

97.6

159

106

160

131

118.2×1/8Acme

10×10

4″(IDF)

97.6

159

115

160

131

125.9×1/6Acme

10×10



Sanitary Threaded x Nut Butterfly Valve - RJT聽Series

Dimension of Sanitary Threaded x Nut Butterfly Valve – RJT聽Series聽W5019

Size

DN

D

L

L1

H

G

K x K

1″

22.2

74

75.7

130

86

45.7×1/8TWHIT

8×8

1 1/2 “

34.9

87

75.7

130

90

58.4×1/8TWHIT

8×8

2″

47.6

107

78.7

130

102

72.7×1/6TWHIT

8×8

2 1/2″

60.3

124

80.7

130

109

85.4×1/6TWHIT

10×10

3″

73.0

127

80.7

160

115

98.1×1/6TWHIT

10×10

4″

97.5

159

107.4

160

131

123.8×1/6TWHIT

10×10

6″

148

200

141.5

160

161.5

174.3×1/6TWHIT

12×12



Sanitary Threaded x Nut Butterfly Valve - 3A聽Series

Dimension of Sanitary Threaded x Nut Butterfly Valve – 3A聽Series聽W5020

Size

DN

D

L

L1

H

G

K x K

1″

22.1

74

90.9

130

86

37.1×1/8Acme

8×8

1 1/4″

28.8

78

92.9

130

86

45.9×1/8Acme

8×8

1 1/2″

34.8

87

96.1

130

90

50.6×1/8Acme

8×8

2″

47.5

99

100.1

130

102

64.1×1/8Acme

8×8

2 1/2″

60.2

114

110.5

130

109

77.6×1/8Acme

10×10

3″

72.9

127

112.5

160

115

91.1×1/8Acme

10×10

4″

97.4

159

126.5

160

131

119.2×1/6Acme

10×10



Sanitary Threaded x Nut Butterfly Valve - ds聽Series

Dimension of Sanitary Threaded x Nut Butterfly Valve – DS聽Series聽W50211

Size

DN

D

L

L1

H

G

K x K

1″

22.4

74

72

130

86

RD44X1/6

8×8

1 1/4″

28.8

80

72

130

86

RD52X1/6

8×8

1 1/2″

35.1

87

76

130

90

RD58X1/6

8×8

2″

47.8

107

82

130

102

RD72X1/6

8×8

2 1/2″

59.5

124

88

130

109

RD88X1/6

10×10

3″

72.2

127

92

160

115

RD100X1/6

10×10

4″

97.6

159

112

160

131

RD130X1/8

10×10

* All dimensions are in mm expect specified.

* For more information about sanitary threaded x nut butterfly valves, please contact us when you feel free.



Sanitary Non-Retention Ball Valve


Sanitary Non-Retention Ball Valve

Sanitary Non-Retention ball Valve is a two聽splitted design sanitary ball valve, the combination is connected by heavy clamp. Non-retention ball valve is made in stainless steel 1.4301, 1.4404 or T316L, T304 ete of DIN, SMS standards etc., it is without dead angle, and no retention of flow. Wellgreen sanitary provides a wide range of sanitary valves聽for 聽food processing, beverages, fruit juices, wine, biopharmaceutical聽etc. 聽 聽聽聽

Strength:

  • Stainless steel T316L, T304, 1.4301, 1.4404 or specified.
  • Valve body combined with clamp connection.
  • Valve body is renewable and changed to other connections.
  • Small operated torque.
  • Easily disassemble without special tools.
  • Gasket materials complies with FDA 177.2600.
  • Connected end of tri-clamp,weld,thread available.
  • Standard of DIN, SMS, ISO, IDF, BPE, RJT etc.

Application: 聽聽聽

Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharm etc.




Sanitary Non-Retention Ball Valves Specification

PRODUCT Sanitary Non-Retention Ball Valve
DIMENSION DN10 ~ DN65
MATERIAL T304, T316L, EN 1.4301, EN 1.4404聽etc.
STANDARD DIN,SMS,ISO,IDF,BPE,RJT etc.
SEALING GASKET Silicone, EPDM, PTFE, Buna-N etc.
TEMPERATURE -30掳C / -22掳F up to +120掳C/ +248掳F
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size *Material *Quantity *Standard

Clamped Non-Retention Ball Vavle

Dimension of Clamped Non-Retention Ball Valve -DIN聽W5049

Size

A

B

H

L

3/4″

19

105.0

25.4

55.0

125.0

1″

25

125.0

50.5

55.0

140.0

11/4″

32

132.0

50.5

65.0

150.0

11/2″

38

140.0

50.5

65.0

160.0

2″

51

159.0

64.0

85.0

180.0

21/2″

63

180.0

77.5

100.0

200.0

Clamped Non-Retention Ball Vavle

Dimension of Clamped Non-Retention Ball Valve – SMS/3A/ISO聽W5050

Size

A

B

H

L

3/4″

19

90.0

25.4

65.0

105.0

1″

25

110.0

50.5

70.0

105.0

11/4″

32

120.0

50.5

80.0

130.0

11/2″

38

140.0

50.5

80.0

150.0

2″

51

164.0

64.0

85.0

160.0

21/4″

57

170.0

77.5

110.0

180.0

21/2″

63

180.0

77.5

110.0

180.0

* For more information about sanitary non-retention ball valve, please contact us when you feel free.
