Sanitary Threaded Diaphragm Valves


Sanitary Threaded Diaphragm Valve

Sanitary Threaded Diaphragm Valve is female threaded connected diaphragm valve. Our sanitary threaded diaphragm valves with DIN, SMS, ISO, IDF, RJT series etc. The valve body is forged and materials in stainless steel T304 and T316L. We offers sanitary threaded diaphragm valve from 1/2″ to 2″, it can be manual or air operation. Wellgreen supply different sanitary valves to meet variety needs for hygienic industries such as Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Features:

  • 聽聽 聽 Valve body is forged of stainless steel T316L, 1.4404 or specified.
  • 聽聽 聽 Internal surface is up to Ra 0.4?m, external shot blasting.
  • 聽聽 聽 Variety connection of butt weld, tri-clamp, threaded etc.
  • 聽聽 聽 PTFE/EPDM composite diaphragm to FDA177.2600.
  • 聽聽 聽 Different operation of manual, air, electirc available.



聽聽聽 Application:

聽聽聽 Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.




Sanitary Threaded Diaphragm Valves Specification

PRODUCT Sanitary Threaded Diaphragm Valve
DIMENSION 1/2″ ~ 2″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD DIN, SMS, ISO, IDF, BPE, RJT etc.
SEALING GASKET PTFE, EPDM, Silicone, FPM etc.
TEMPERATURE -20掳C / -4掳F up to +135掳C/ +275掳F
Working Pressure 0-10bar
Operation Manual, Pneumatic
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size*Material

*Quantity

*Standard

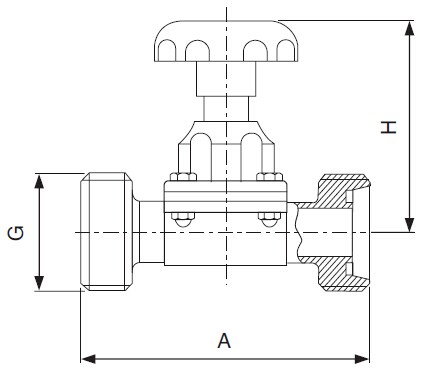

Sanitary Threaded Diaphragm Valve - DIN Series

Dimension of Sanitary Threaded Diaphragm Valve – DIN Series

Size

A

G

H

DN20

153.0

RD44*1/6

91/102

DN25

165.0

RD52*1/6

110/123

DN32

180.0

RD58*1/6

129/138

DN40

190.0

RD65*1/6

139/159

DN50

222.0

RD78*1/6

159/186

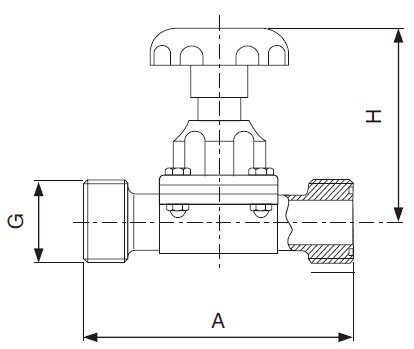

Sanitary Threaded Diaphragm Valve - sms Series

Dimension of Sanitary Threaded Diaphragm Valve – SMS Series

Size

A

B

H

25

161.0

RD40*1/6

110/123

32

176.0

RD48*1/6

129/138

38

190.0

RD60*1/6

139/159

51

220.0

RD70*1/6

159/186

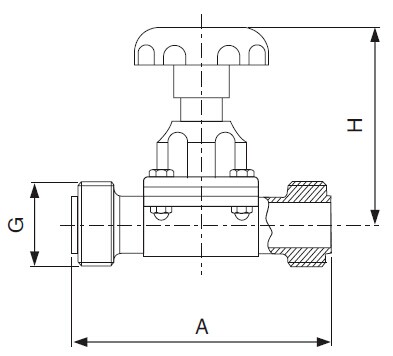

Sanitary Threaded Diaphragm Valve -iso-idf Series

Dimension of Sanitary Threaded Diaphragm Valve – ISO/IDF Series

Size

A

G

H

1″

168.0

37.1x8TACME

110/123

11/2″

193.0

50.6x8TACME

139/159

2″

223.0

64.2x8TACME

159/186

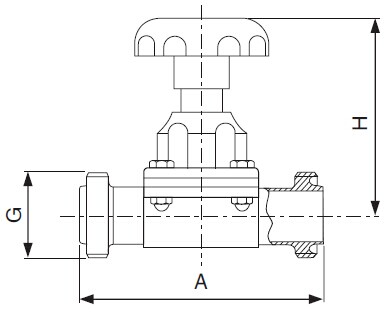

Sanitary Threaded Diaphragm Valve -rtj Series

Dimension of Sanitary Threaded Diaphragm Valve – RJT Series

Size

A

G

H

1″

179.0

45.7×1/8TWHIT

110/123

11/2″

204.0

58.4×1/8TWHIT

139/159

2″

234.0

72.7×1/8TWHIT

159/186

* If you didn’t find your dimension of Sanitary Threaded Diaphragm Valves here, please contact us for details.
