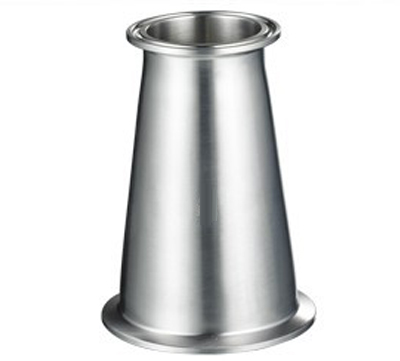

I-Line Reducer Fitting






I-line Reducer Fittings

I-line Reducer Fittings are made in stainless steel 304 and 316L, it was connected by male and female. I-line reducer fitting has the advantages of high pressure withstanding, shock resistance, high temperature resistance, and maintenance easierly etc. Wellgreen sanitary is ability to supplying qualified hygienic I-line Fittings comply to your condition and 3A requirement.


I-Line Reducer Fittings – Sanitary I-Line Fittings – Stainless Steel Tube Fittings
Product I-Line Fittings- Concentric Reducer
Size 1″ thru 8″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard I-Line, 3A
End Connection Tri-clamp, Threaded etc.
Surface Descaled finish, Mirror polished.
Gasket PTFE, EPDM, Buna-N, Silicone etc.
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic, water treatment etc.
How to order *Part Name*Dimension

*Material

*Quantity

*Polish requests for OD/ID



I-line reducer fittings

 Dimension of I-Line Fittings – Concentric Reducer – Both Ends Male- Sanitary Fittings

Size A
1 1/2″-1″ 3 5/16
2″-1 1/2″ 3 1/4
2 1/2″-2″ 3 3/4
3″-2″ 4 11/16
3″-2 1/2″ 4 3/4
4″-3″ 4 29/32



I-line reducer fittings

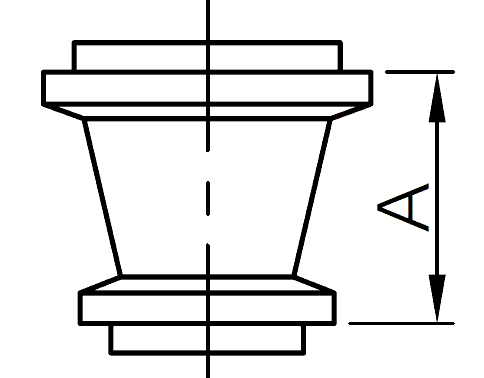

Dimension of I-Line Fittings – Concentric Reducer – Large End Male and Other End Female- Sanitary Fittings

Size A
1 1/2″-1″ 3 1/8
2″-1 1/2″ 3 3/32
2 1/2″-2″ 3 9/32
3″-2″ 5 3/8
3″-2 1/2″ 4 7/16
4″-3″ 5 21/32

* For more information about I-line reducer fittings, please contact us when you feel free.

** All dimensions are in inch.
