Pneumatic Sanitary Threaded Butterfly Valves


Pneumatic Sanitary Threaded Butterfly Valves

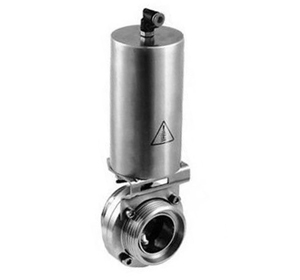

Pneumatic Sanitary Threaded Butterfly Valve is pneumatic actuator operated sanitary butterfly valves which聽with male/female threaded ends. We provides full line pneumatic butterfly valve with threaded ends from 1/2″ to 12″ in stainless steel T304, T316L etc. The air actuator can be assemblied upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, it is widely used in聽process piping systems for isolation and control.

Options of Pneumatic Threaded Butterfly Valve:

  • Valve聽body and trim:

Stainless steel T316L, T304 etc, body and disc is forged.

  • Gasket material:

EPDM, NBR, VMQ or FPM, which all confirm to standard of FDA 177.2600

  • End Connection:

Male/Female threaded to DIN, SMS, 3A etc.

  • Actuator:

Pneumatic stainless steel actuator (vertical type).

  • Control:

Position sensor, C-TOP controller, C-TOP controller(AS-I)

Operation of Air Actuator:

  • Vertical type, stainless steel 304 material actuator or horizontal type.
  • NC/NO/AA operation for choose from.
  • Normally Closed (NC) – Air to open and spring to close.
  • Normally Open (NO) – Air to close and spring to open.
  • Air to Air (AA) – Air to open, air to close.
  • Supply Pressure of Air Actuator:聽70 ~ 115psi (5-8 bar).
  • Surface Finish:聽Ra 32?in (0.8?m) commonly, or higher upon request.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage,Biotech ,Cosmetics etc.


Sanitary Pneumatic Threaded Butterfly Valves Specification

PRODUCT Pneumatic Sanitary Threaded Butterfly Valve
DIMENSION 1/2″ ~ 12″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS etc.
End Connection Male Threaded, Female Threaded.
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -10掳C / 14掳F up to +120掳C/ +248掳F (EPDM)
Pressure 0.2 – 10bar
Operation Pneumatic actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size *Material *Quantity *Standard

Sanitary Pneumatic Threaded Butterfly Valve - DIN聽Series

Dimension of Sanitary Pneumatic Threaded Butterfly Valve – DIN聽Series

SIZE

D

A

H

H1

Rd

DN10

86

68

182

41

RD28*1/8

DN15

86

68

182

41

RD34*1/8

DN20

86

68

182

41

RD44*1/6

DN25

86

68

182

41

RD52*1/6

DN32

86

68

182

45

RD58*1/6

DN40

86

68

182

47

RD65*1/6

DN50

86

76

182

55

RD78*1/6

DN65

86

80

182

64

RD95*1/6

DN80

86

82

182

71

RD110*1/4

DN100

86

88

182

81

RD130*1/4

DN125

133

128

300

116

RD160*1/4

DN150

133

146

300

136

RD190*1/4

Sanitary Pneumatic Threaded Butterfly Valve - 3A Series

Dimension of Sanitary Pneumatic Threaded Butterfly Valve – 3A Series

SIZE

D

A

H

H1

G

1鈥

86

68

182

41

37.1*1/8Acme

11/4鈥

86

68

182

41

45.9*1/8Acme

11/2鈥

86

68

182

44

50.6*1/8Acme

2鈥

86

76

182

53

64.1*1/8Acme

21/2鈥

86

80

182

59

77.6*1/8Acme

3鈥

86

80

182

66

91.1*1/8Acme

4鈥

86

104

182

79

119.2/6Acme

Sanitary Pneumatic Threaded Butterfly Valve - SMS Series

Dimension of Sanitary Pneumatic Threaded Butterfly Valve – SMS Series

SIZE

D

A

H

H1

Rd

?19

86

68

182

41

Rd36*1/8

?25

86

68

182

41

Rd40*1/6

?32

86

68

182

41

Rd48*1/6

?38

86

68

182

45

Rd60*1/6

?51

86

76

182

53

Rd70*1/6

?63

86

80

182

59

Rd85*1/6

?76

86

80

182

66

Rd98*1/6

?89

86

80

182

71

Rd105*1/6

?102(S)

86

88

182

79

Rd125*1/4

?102(L)

86

88

182

81

Rd132*1/6

* All dimensions are in mm expect specified.

* For more information about Pneumatic Sanitary Threaded Butterfly Valves, please contact us when you feel free.
