Sanitary 3A Butterfly Valve is 3A dimension sanitary butterfly valves, we manufacture and supply it from 1/2″ to 8″ in stainless steel T304, T316L etc. Sanitary 3A butterfly valve is our strength sanitary valves , it comply with 3A standard, with high precision and high purity surface, it’s a commonly and widely used butterfly valv for hygienic industries. Wellgreen is your reliable partner for applications of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.




Specification and Dimension of 3A Sanitary Butterfly Valves

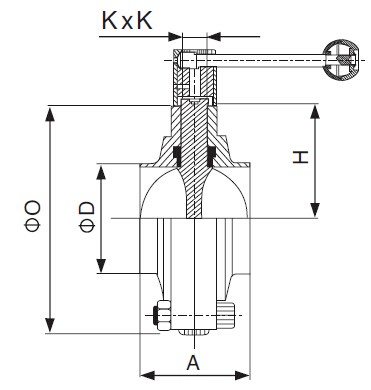

3A Sanitary Welded Butterfly Valve

Dimension of Sanitary Welded Butterfly Valve – 3A聽Series W5014

Size

O

D

K x K

A

H

1/2鈥

78.0

12.7

8.2*8.2

50.0

39.0

3/4鈥

78.0

19.

8.2*8.2

50.0

39.0

1鈥

78.0

25.4

8.2*8.2

50.0

40.0

1 1/2鈥

80.0

38.1

8.2*8.2

50.0

40.0

2鈥

100.0

50.8

8.2*8.2

50.0

50.0

2 1/2鈥

117.0

63.5

10.0*10.0

56.0

58.0

3鈥

129.0

76.2

10.0*10.0

60.0

64.5

4鈥

160.0

101.6

10.0*10.0

66.0

80.0

6鈥

225.0

152.4

12.0*12.0

80.0

112.5

8鈥

285.0

203.2

14.0*14.0

90.0

142.5

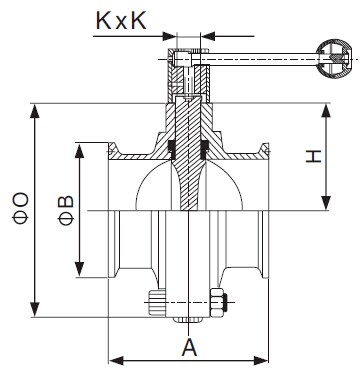

3A Clamped Butterfly Valve

Dimension of Sanitary Clamped Butterfly Valve – 3A聽Series聽W5025

Size

O

D

K x K

A

H

1/2鈥

78.0

25.4

8.2*8.2

68.0

39.0

3/4鈥

78.0

25.4

8.2*8.2

68.0

39.0

1鈥

78.0

50.5

8.2*8.2

68.0

39.0

1 1/2鈥

80.0

50.5

8.2*8.2

72.0

40.0

2鈥

100.0

64.0

8.2*8.2

74.0

50.0

2 1/2鈥

117.0

77.5

10.0*10.0

80.0

58.0

3鈥

129.0

91.0

10.0*10.0

80.0

64.5

4鈥

160.0

119.0

10.0*10.0

90.0

80.0

5鈥

190.0

145.0

12.0*12.0

114.0

95.0

6鈥

225.0

167.0

12.0*12.0

120.0

112.5

8鈥

285.0

217.0

14.0*14.0

126.0

142.5

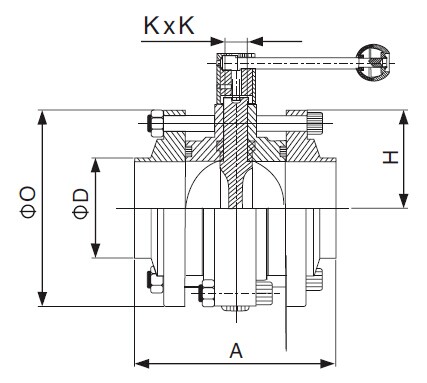

3A Three-piece Butterfly Valve

Dimension of Sanitary Three-piece Butterfly Valve – 3A聽Series聽W5026

Size

O

D

K x K

A

H

1/2鈥

78.0

12.7

8.2*8.2

100.0

39.0

3/4鈥

78.0

19.

8.2*8.2

100.0

39.0

1鈥

78.0

25.4

8.2*8.2

100.0

40.0

1 1/2鈥

80.0

38.1

8.2*8.2

100.0

40.0

2鈥

100.0

50.8

8.2*8.2

100.0

50.0

2 1/2鈥

117.0

63.5

10.0*10.0

100.0

58.0

3鈥

129.0

76.2

10.0*10.0

100.0

64.5

4鈥

160.0

101.6

10.0*10.0

108.0

80.0

6鈥

225.0

152.4

12.0*12.0

120.0

112.5

8鈥

285.0

203.2

14.0*14.0

130.0

142.5

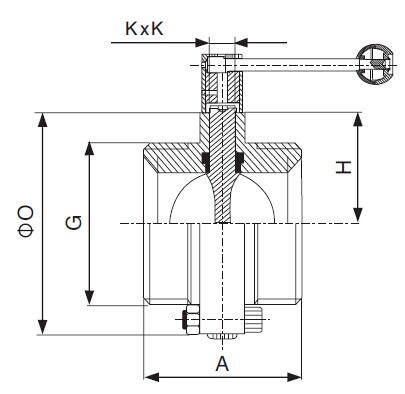

3A Threaded Butterfly Valve

Dimension of Sanitary Threaded Butterfly Valve – 3A聽Series聽W5008

Size

O

G

K x K

A

H

1鈥

78.0

37.1*6TACME

8.2*8.2

68.0

39.0

1 1/2鈥

80.0

50.6*6TACME

8.2*8.2

68.0

40.0

2鈥

100.0

64.2*6TACME

8.2*8.2

76.0

50.0

2 1/2鈥

117.0

77.7*6TACME

8.2*8.2

80.0

58.5

3鈥

129.0

91.2*6TACME

10.0*10.0

80.0

64.5

4鈥

160.0

119.2*6TACME

10.0*10.0

90.0

80.0

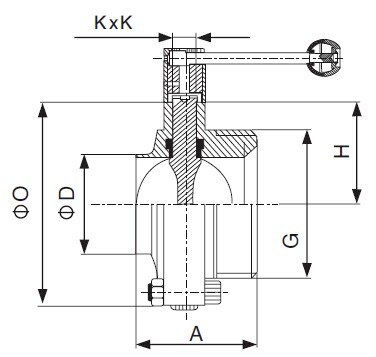

3A Welded x Threaded Butterfly Valve

Dimension of Sanitary Welded x Threaded Butterfly Valve – 3A聽Series

Size

O

D

G

K x K

A

H

1鈥

78.0

25.4

37.1*6TACME

8.2*8.2

59.0

39.0

1 1/2鈥

80.0

38.1

50.6*6TACME

8.2*8.2

59.0

40.0

2鈥

100.0

50.8

64.2*6TACME

8.2*8.2

63.0

50.0

2 1/2鈥

117.0

63.5

77.7*6TACME

10.0*10.0

68.0

58.5

3鈥

129.0

76.2

91.2*6TACME

10.0*10.0

70.0

64.5

4鈥

160.0

101.6

119.2*6TACME

10.0*10.0

78.0

80.0

* All dimensions are in mm expect specified.

* For more information about sanitary butterfly valves, please contact us when you feel free.
