Sanitary Flange Check Valve

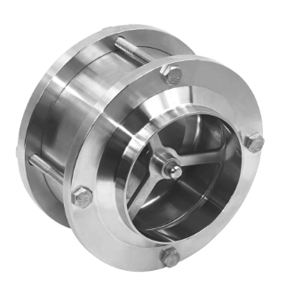

Sanitary Flange Check Valve is a 3 PCS design sanitary check valve, it is from 1/2″ to 4″, the connection is weld flange. The valve body is in three parts, assembled by means of bolted and sealed with a FDA standard gasket. Wellgreen offers flanged check valve in stainless steel T316L or T304 of DIN and INCH standard, with surface 24Ra or better finish, it is your reliable source for high purity industiries such as food, dairy, brewery, winery, biopharm, fine chemcial etc.
Dimension of Sanitary DIN Flanged Check Valve – DIN Series
| SIZE | H | D11 2 | t |
|
DN15 DN20 DN25 |
70 70 70 |
18 19 22 23 28 29 |
1.5 1.5 1.5 |
|
DN32 DN40 DN50 |
75 75 85 |
34 35 40 41 52 53 |
1.5 1.5 1.5 |
|
DN65 DN80 DN100 |
95 105 120 |
70 – 85 – 104 – |
2.0 2.0 2.0 |
Dimension of Sanitary Inch Flanged Check Valve – INCH Series
| SIZE | H | D |
|
3/4” 1” 1 1/4” |
70 70 75 |
19 25.4 31.8 |
|
1 1/2” 2” 2 1/2” |
75 85 95 |
38.1 50.8 63.5 |
|
3” 3 1/2” 4” |
105 105 120 |
76.2 89 101.6 |
Dimension of Sanitary of DIN 3 PCS Flanged Check Valve – DIN Series
| SIZE | H | D | D1 | Dn |
|
DN125 DN150 DN200 |
150 156 200 |
205 235 300 |
129 154 204 |
125 150 200 |
Dimension of Sanitary INCH 3 PCS Flanged Check Valve – INCH Series
| SIZE | H | D | D1 |
|
5” 6” 8” |
150 156 200 |
205 235 300 |
127 152.4 203.2 |
* For more information and specification about sanitary check valves, please contact us here.
