Sanitary RJT Union

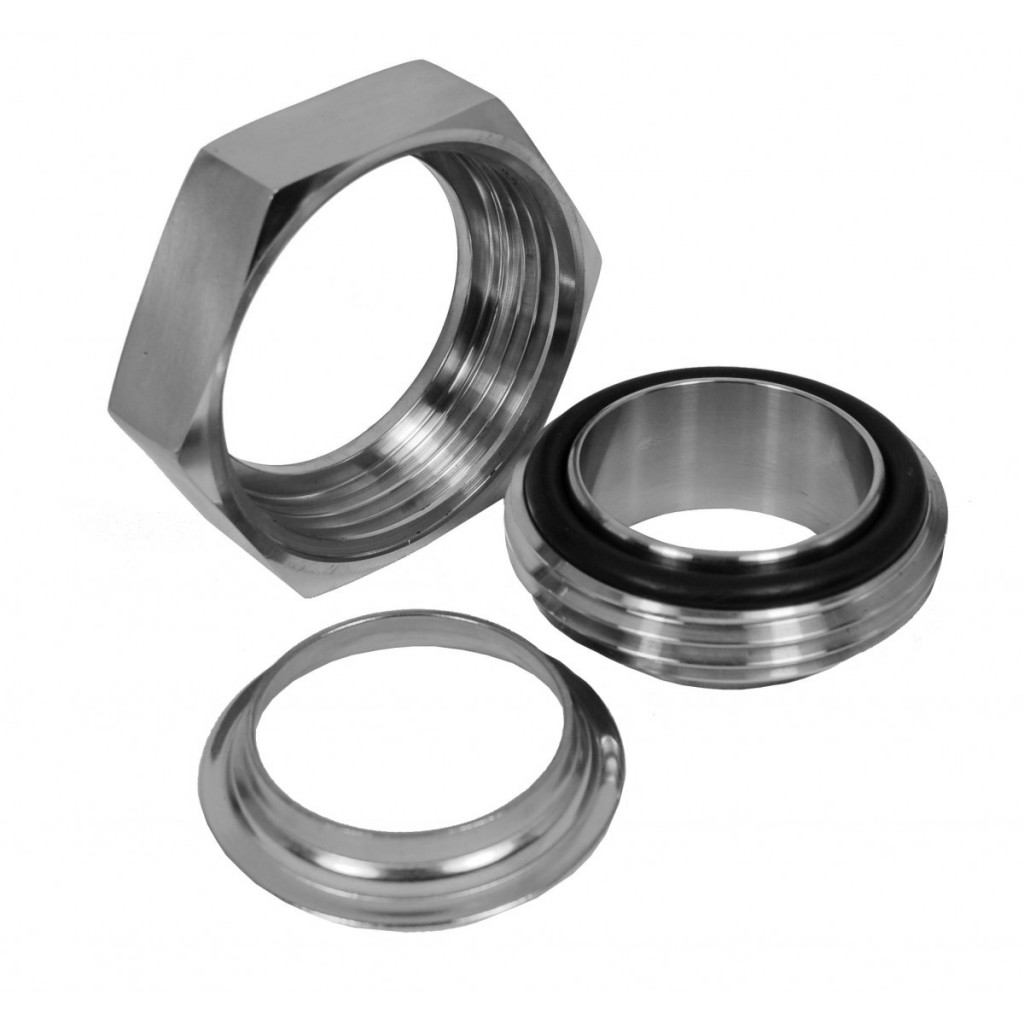

Sanitary RJT Union consist of a union nut, a welding/expanding male, a welding/expanding liner and a gasket. Wellgreen sanitary provide RJT union in stainless steel 1.4301 and 1.4404, and machined by CNC to make sure getting high purity surface and good precision. Our sanitary unions are applied to the cleanliness industries of Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech etc.
| PRODUCT | Sanitary RJT Unions – round nut, hexagonal nut, blank cap, welding male, welding liner, expanding male, expanding liner, gasket etc. |
|---|---|
| DIMENSION | 1″ thru 4″ |
| MATERIAL | T304, T316L, EN 1.4301, EN 1.4404 etc. |
| STANDARD | RJT |
| SEALING GASKET | Silicone, EPDM, PTFE, Buna-N etc. |
| TEMPERATURE | -30°C / -22°F up to +120°C/ +248°F |
| APPLICATION | Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc. |
| How to order | *Part Name*Size *Material *Quantity *Standard *Surface Finish |
Dimension of Sanitary RJT Union – Blank Hexagon Nut – Sanitary Fitting W3037
| SIZE | A | E | H |
| 1″ | 42.6*1/8 | 49.0 | 24.0 |
| 11/2″ | 55.3*1/8 | 63.0 | 24.0 |
| 2″ | 68.3*1/6 | 77.3 | 25.0 |
| 21/2″ | 80.9*1/6 | 90.0 | 26.0 |
| 3″ | 93.6*1/6 | 102.7 | 26.0 |
| 4″ | 119.1*1/6 | 128.0 | 25.0 |
| 6″ | 169.6*1/6 | 182.0 | 29.0 |
Dimension of Sanitary RJT Union – Round Nut – Sanitary Fitting W3035
| SIZE | A | B | C | F |
| 1″ | 58.5 | 33.3 | 42.6*1/8 | 22.2 |
| 11/2″ | 74 | 46 | 55.3*1/8 | 22.2 |
| 2″ | 85.5 | 58.7 | 68.3*1/6 | 22.2 |
| 21/2″ | 98.5 | 71.4 | 80.9*1/6 | 22.2 |
| 3″ | 111.6 | 84.1 | 93.6*1/6 | 22.2 |
| 4″ | 138 | 109.5 | 119.1*1/6 | 22.2 |
| 5″ | 172.5 | 136 | 144.1*1/6 | 24 |
| 6″ | 197 | 162.6 | 169.6*1/6 | 23.5 |
Dimension of Sanitary RJT Union – Hexagon Nut – Sanitary Fitting W3036
| SIZE | A | B | E | F |
| 1″ | 33.3 | 42.6*8T | 22.2 | 50.8 |
| 11/2″ | 46 | 55.3*8T | 22.2 | 65 |
| 2″ | 58.7 | 68.3*8T | 22.2 | 79.3 |
| 21/2″ | 71.4 | 80.9*8T | 22.2 | 92 |
| 3″ | 84.1 | 93.6*8T | 22.2 | 104.7 |
| 4″ | 109.5 | 119.1*8T | 22.2 | 130 |
| 6″ | 162.6 | 169.6*8T | 23.8 | 184 |
Dimension of Sanitary RJT Union – Welding Liner – Sanitary Fitting
| SIZE | A | C | D | H |
| 1″ | 41.3 | 25.65 | 22.2 | 19.5 |
| 11/2″ | 54.0 | 38.35 | 34.9 | 19.5 |
| 2″ | 66.7 | 51.05 | 47.6 | 19.5 |
| 21/2″ | 79.4 | 63.75 | 60.3 | 19.5 |
| 3″ | 92.1 | 76.45 | 73.0 | 19.5 |
| 4″ | 117.5 | 101.85 | 97.6 | 19.5 |
| 6″ | 169.1 | 152.5 | 148 | 19.5 |
Dimension of Sanitary RJT Union – Expanding Liner – Sanitary Fitting W3046
| SIZE | A | B | C | D |
| 1″ | 41.3 | 25.5 | 32.5 | 20 |
| 11/2″ | 54 | 38.2 | 45.2 | 24 |
| 2″ | 66.7 | 50.9 | 57.9 | 28 |
| 21/2″ | 79.4 | 63.6 | 70.6 | 32 |
| 3″ | 92.1 | 76.3 | 83.3 | 32 |
| 4″ | 117.5 | 101.7 | 108.7 | 32 |
Dimension of Sanitary RJT Union – Welding Liner-W – Sanitary Fitting
| SIZE | B | C | F | G |
| 1″ | 25.65 | 22.2 | 41.3 | 12.7 |
| 11/2″ | 38.35 | 34.9 | 54.0 | 12.7 |
| 2″ | 51.05 | 47.6 | 66.7 | 12.7 |
| 21/2″ | 63.75 | 60.3 | 79.4 | 12.7 |
| 3″ | 76.45 | 73.0 | 92.1 | 12.7 |
| 4″ | 101.85 | 97.6 | 117.5 | 12.7 |
Dimension of Sanitary RJT Union – Blank Cap – Sanitary Fitting
| SIZE | A | D | C |
| 1″ | 41.3 | 32.4 | 8.2 |
| 11/2″ | 54 | 45.1 | 8.2 |
| 2″ | 66.7 | 57.8 | 8.2 |
| 21/2″ | 79.4 | 70.5 | 8.2 |
| 3″ | 92.1 | 83.1 | 8.2 |
| 4″ | 117.5 | 108.6 | 8.2 |
| 6″ | 169 | 159.6 | 10.2 |
Dimension of Sanitary RJT Union – Welding Male – Sanitary Fitting
| SIZE | A | B | D | E |
| 1″ | 22.2 | 25.65 | 45.72*8T | 25.4 |
| 11/2″ | 34.9 | 38.35 | 58.42*8T | 38.1 |
| 2″ | 47.6 | 51.05 | 72.72*6T | 50.8 |
| 21/2″ | 60.3 | 63.75 | 85.42*6T | 63.5 |
| 3″ | 73.0 | 76.45 | 98.12*6T | 76.2 |
| 4″ | 97.6 | 101.85 | 123.52*6T | 101.6 |
| 8″ | 198.8 | 203.2 | 224.3*6T | 203.3 |
| 104 | 100 | 104 | 123.52*6T | 101.6 |
Dimension of Sanitary RJT Union – Expanding Male – Sanitary Fitting W3046
| SIZE | A | D | E | F |
| 1″ | 45.7*8T | 25.5 | 32.5 | 20 |
| 11/2″ | 58.4*8T | 38.2 | 45.2 | 24 |
| 2″ | 72.7*6T | 50.9 | 57.9 | 28 |
| 21/2″ | 85.4*6T | 63.6 | 70.6 | 32 |
| 3″ | 98.1*6T | 76.3 | 83.3 | 32 |
| 4″ | 123.8*6T | 101.7 | 108.7 | 32 |
Dimension of Sanitary RJT Union – Flat Face Liner – Sanitary Fitting
| SIZE | A | B | C | E |
| 1″ | 41.3 | 22.2 | 25.4 | 19.0 |
| 11/2″ | 54.0 | 34.9 | 38.1 | 19.0 |
| 2″ | 66.7 | 47.6 | 50.8 | 19.0 |
| 21/2″ | 79.4 | 60.3 | 63.5 | 19.0 |
| 3″ | 92.1 | 73.0 | 76.2 | 19.0 |
| 4″ | 117.5 | 97.6 | 101.6 | 19.0 |
| 6″ | 168.3 | 148.2 | 152.4 | 23.5 |
Dimension of Sanitary RJT Union – Flat Face Male – Sanitary Fitting
| SIZE | A | B | D |
| 1″ | 22.2 | 25.4 | 45.72*8T |
| 11/2″ | 34.9 | 38.1 | 58.42*8T |
| 2″ | 47.6 | 50.8 | 72.72*6T |
| 21/2″ | 60.3 | 63.5 | 85.42*6T |
| 3″ | 73.0 | 76.2 | 98.12*6T |
| 4″ | 97.6 | 101.6 | 123.52*6T |
| 6″ | 148.2 | 152.4 | 174.32*6T |
*All dimension are in mm except specified.
**Contact us for more information about this union.
