Electric Actuated Sanitary Flanged Butterfly Valves


Electric Actuated Sanitary Flanged Butterfly Valve

Electric Actuated Sanitary Flanged Butterfly Valve is electric actuator operated sanitary butterfly valves with flange ends connection. We provides full line electric flanged butterfly valve from 1/2″ to 8″ in stainless steel T304, T316L etc. The electric actuator can be selected upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, with excellent precision and high purity surface. Wellgreen is your reliable partner for processing controlling of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Strengths:

  • Forged valve body – stainless steel T304, T316L.
  • Simple and robust design.
  • Low pressure losing.
  • Renewable design of valve body.
  • Every connection of flanged, butt welded, tri-clamp, threaded etc.
  • Different series of DIN, 3A, SMS, ISO, IDF, RJT, DS on request.
  • Electric actuator brand on request.
  • Sealing materials conform to FDA 177.2600.



Parameter of Electric Actuator:

  • Protection degree: IP-67.
  • Environment temperature: -2掳C ~ 60掳C (other temperature can be custom made).
  • Installment angle: any angle.
  • Material of body: aluminum alloy diecasting.
  • Features optional: torque than the protection, heated dehumidifier, over-heat protection.
  • Hand operation: by detachable hexagon.
  • Spacing: electrically: completely close and open limit switch.
  • Manually: link stopper.
  • Input signal: 4-20mA.DC, 1-5V.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Output signal: 4-20m A.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Voltage: AC.24V 110V 220V 380V DC.24V Frequency: 50HZ,60 HZ.
  • Type of control: on-off indicator light, passive contact point, opening position, intelligent control
  • Switching time(S): 9,10,13,15,20,25,30,50,60,1000.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage, Biotech, Cosmetics etc.


Electric Actuated Sanitary Flanged Butterfly Valves Specification

PRODUCT Electric Actuated Sanitary Flanged Butterfly Valve
DIMENSION 1/2″ ~ 8″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS, ISO, ISO, DS etc.
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -2掳C / 28.4掳F up to +60掳C/ +140掳F
PRESSURE 0.2 – 10bar
CONNECTION Flange Ends, three piece design
OPERATION Electric actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name

*Size

*Material

*Quantity

*Standard

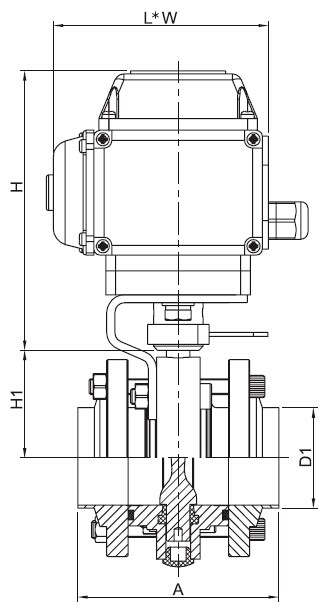

Electric Actuated Flanged(three-piece) Butterfly Valve -DIN聽Series

Dimension of Electric Actuated Flanged(three-piece) Butterfly Valve -DIN聽Series

SIZE

A

H

H1

D1

L*W

1

2

DN10

98

141

41

12

13

162*115

DN15

98

141

41

18

19

162*115

DN20

98

141

41

22

23

162*115

DN25

98

141

41

28

29

162*115

DN32

98

141

41

34

35

162*115

DN40

98

141

47

40

41

162*115

DN50

110

141

53

52

53

162*115

DN65

106

141

64

70

162*115

DN80

106

141

79

85

162*115

DN100

110

141

79

104

162*115

DN125

140

153

116

129

208*122

DN150

160

153

136

154

208*122

DN200

160

153

171

204

208*122

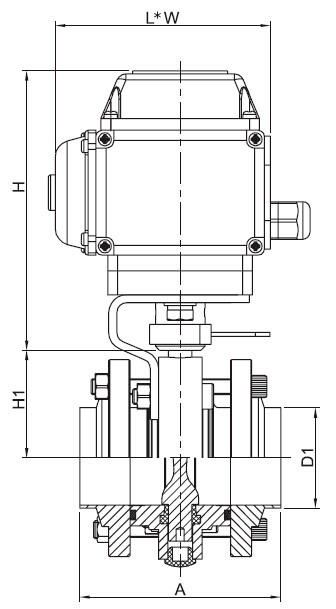

Electric Actuated Flanged(three-piece) Butterfly Valve -3A, SMS, ISO, DS聽Series

Dimension of Electric Actuated Flanged(three-piece) Butterfly Valve -3A, SMS, ISO, DS聽Series

SIZE

A

H

H1

D1

L*W

1/2″

98

141

41

12.7

162*115

3/4″

98

141

41

19

162*115

1″

98

141

41

25.4

162*115

11/4″

98

141

41

31.8

162*115

11/2″

98

141

45

38.1

162*115

45

98

141

47

45

162*115

2″

100

141

53

50.8

162*115

57

100

141

53

57

162*115

21/2″

100

141

59

63.5

162*115

3″

106

141

66

76.2

162*115

3.5″

106

141

71

89

162*115

4″

110

141

79

101.6

162*115

108

110

153

81

108

208*122

114

110

153

81

114.3

208*122

5″

140

153

116

127

208*122

133

140

153

116

133

208*122

6″

160

153

136

152.4

208*122

159

160

153

136

159

208*122

168.3

160

153

136

168.3

208*122

8″

160

153

171

203.2

208*122

219

160

153

171

219

208*122

*All dimension are in mm except specified.

* For more information about electric actuated sanitary flanged butterfly valves, please contact us when you feel free.
