Sanitary ISO/IDF Butterfly Valve is ISO/IDF standard sanitary valves, they are have the same dimension. We offer it from DN15 to DN200 in stainless steel 1.4301, 1.4404, T304, T316L etc. Sanitary ISO/IDF butterfly valve are forged body and made in CNC machine, with excellent precision and high purity surface to meet the request of hygienic industries. It is idea choice for the applications of food, brewery, beverage, dairy, pharmaceutical etc.

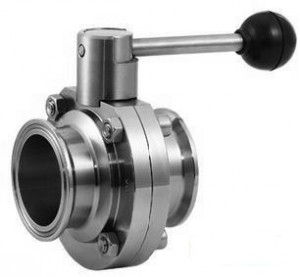

ISO/IDF Sanitary Butterfly Valves-wellgreen
Features:
- 聽Full line from 1/2″ to 8″, with standard ISO and IDF butterfly valves.
- 聽Manual and air/electric actuator operation are available for any types.
- 聽The body is forged or investment casting.
- 聽Low Pressure Losses.
- 聽360 degree聽installation.
- 聽Seats and seals comply with FDA177.2600.
Specification and Dimension of ISO/IDF Sanitary Butterfly Valves

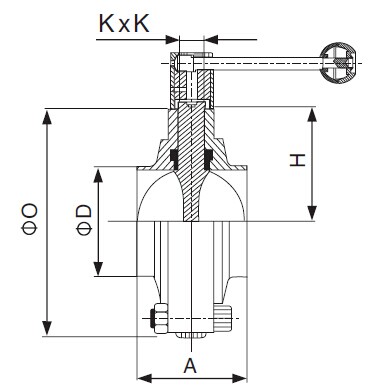

Dimension of Sanitary Welded Butterfly Valve – ISO/IDF聽Series聽W5013
|
Size |
O |
D |
K x K |
A |
H |
|
?19 |
78.0 |
19.0 |
8.2*8.2 |
50.0 |
39.0 |
|
?25 |
78.0 |
25.4 |
8.2*8.2 |
50.0 |
39.0 |
|
?32 |
80.0 |
31.8 |
8.2*8.2 |
50.0 |
40.0 |
|
?38 |
80.0 |
38.1 |
8.2*8.2 |
50.0 |
40.0 |
|
?45 |
95.0 |
45.0 |
8.2*8.2 |
50.0 |
47.5 |
|
?51 |
100.0 |
50.8 |
8.2*8.2 |
50.0 |
50.0 |
|
?57 |
110.0 |
57.0 |
8.2*8.2 |
50.0 |
55.0 |
|
?63 |
117.0 |
63.5 |
10.0*10.0 |
56.0 |
58.5 |
|
?76 |
129.0 |
76.2 |
10.0*10.0 |
60.0 |
64.5 |
|
?89 |
140.0 |
89.0 |
10.0*10.0 |
62.0 |
70.0 |
|
?102 |
160.0 |
101.6 |
10.0*10.0 |
66.0 |
80.0 |
|
?108 |
160.0 |
108.0 |
10.0*10.0 |
66.0 |
80.0 |
|
?133 |
190.0 |
133.0 |
12.0*12.0 |
74.0 |
95.0 |
|
?159 |
225.0 |
159.0 |
12.0*12.0 |
80.0 |
112.5 |
|
?219 |
285.0 |
219.0 |
14.0*14.0 |
86.0 |
142.5 |

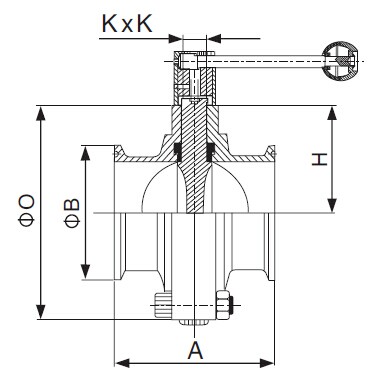

Dimension of Sanitary Clamped Butterfly Valve – ISO/IDF聽Series聽W5025
|
Size |
O |
B |
K x K |
A |
H |
|
?19 |
78.0 |
25.4 |
8.2*8.2 |
68.0 |
39.0 |
|
?25 |
78.0 |
50.5 |
8.2*8.2 |
68.0 |
39.0 |
|
?32 |
80.0 |
50.5 |
8.2*8.2 |
72.0 |
40.0 |
|
?38 |
80.0 |
50.5 |
8.2*8.2 |
72.0 |
40.0 |
|
?45 |
95.0 |
64.0 |
8.2*8.2 |
72.0 |
47.5 |
|
?51 |
100.0 |
64.0 |
8.2*8.2 |
74.0 |
50.0 |
|
?57 |
110.0 |
77.5 |
8.2*8.2 |
74.0 |
55.0 |
|
?63 |
117.0 |
77.5 |
10.0*10.0 |
80.0 |
58.5 |
|
?76 |
129.0 |
91.0 |
10.0*10.0 |
80.0 |
64.5 |
|
?89 |
140.0 |
106.0 |
10.0*10.0 |
86.0 |
70.0 |
|
?102 |
160.0 |
119.0 |
10.0*10.0 |
90.0 |
80.0 |
|
?108 |
160.0 |
119.0 |
10.0*10.0 |
90.0 |
80.0 |
|
?133 |
190.0 |
145.0 |
12.0*12.0 |
114.0 |
95.0 |
|
?159 |
225.0 |
183.0 |
12.0*12.0 |
120.0 |
112.5 |
|
?219 |
285.0 |
233.5 |
14.0*14.0 |
126.0 |
142.5 |

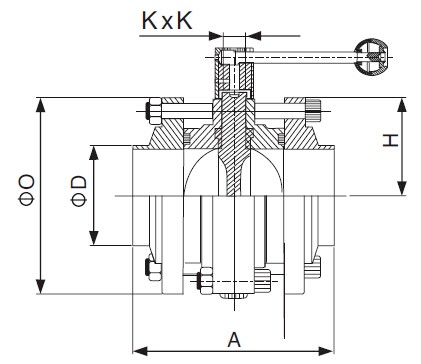

Dimension of Sanitary Three-piece Butterfly Valve – ISO/IDF聽Series聽W5026
|
Size |
O |
D |
K x K |
A |
H |
|
?19 |
78.0 |
19.0 |
8.2*8.2 |
100.0 |
39.0 |
|
?25 |
78.0 |
25.4 |
8.2*8.2 |
100.0 |
39.0 |
|
?32 |
80.0 |
31.8 |
8.2*8.2 |
100.0 |
40.0 |
|
?38 |
80.0 |
38.1 |
8.2*8.2 |
100.0 |
40.0 |
|
?45 |
95.0 |
45.0 |
8.2*8.2 |
100.0 |
47.5 |
|
?51 |
100.0 |
50.8 |
8.2*8.2 |
100.0 |
50.0 |
|
?57 |
110.0 |
57.0 |
8.2*8.2 |
104.0 |
55.0 |
|
?63 |
117.0 |
63.5 |
10.0*10.0 |
100.0 |
58.5 |
|
?76 |
129.0 |
76.2 |
10.0*10.0 |
100.0 |
64.5 |
|
?89 |
140.0 |
89.0 |
10.0*10.0 |
100.0 |
70.0 |
|
?102 |
160.0 |
101.6 |
10.0*10.0 |
108.0 |
80.0 |
|
?108 |
160.0 |
108.0 |
10.0*10.0 |
108.0 |
80.0 |
|
?133 |
190.0 |
133.0 |
12.0*12.0 |
114.0 |
95.0 |
|
?159 |
225.0 |
159.0 |
12.0*12.0 |
120.0 |
112.5 |
|
?219 |
285.0 |
219.0 |
14.0*14.0 |
130.0 |
142.5 |

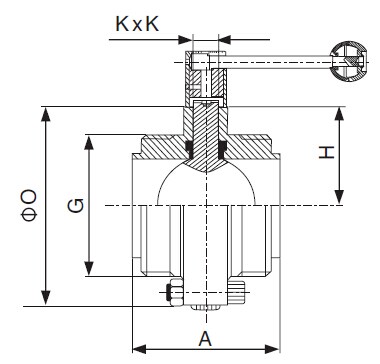

Dimension of Sanitary Threaded Butterfly Valve – ISO/IDF聽Series聽W5006
|
Size |
O |
G |
K x K |
A |
H |
|
1鈥 |
78.0 |
37.1*8TACME |
8.0*8.0 |
66.0 |
39.0 |
|
1 1/2鈥 |
80.0 |
50.6*8TACME |
8.0*8.0 |
70.0 |
43.0 |
|
2鈥 |
100.0 |
64.2*8TACME |
10.0*10.0 |
76.0 |
51.0 |
|
2 1/2鈥 |
117.0 |
77.7*8TACME |
10.0*10.0 |
80.0 |
57.5 |
|
3鈥 |
129.0 |
91.2*8TACME |
10.0*10.0 |
84.0 |
64.0 |
|
4鈥 |
160.0 |
118.4*8TACME |
11.0*11.0 |
104.0 |
77.0 |
|
4鈥 |
160.0 |
125.9*6TACME |
11.0*11.0 |
104.0 |
77.0 |

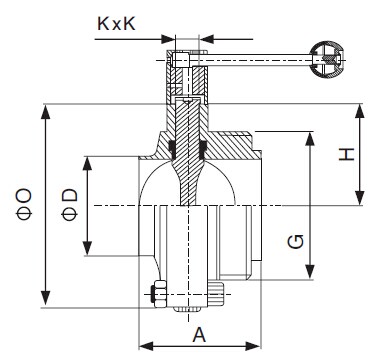

Dimension of Sanitary Welded x Threaded Butterfly Valve – ISO/IDF聽Series
|
Size |
O |
D |
G |
K x K |
A |
H |
|
1鈥 |
78.0 |
25.4 |
37.1*8TACME |
8.2*8.2 |
57.0 |
39.0 |
|
1 1/2鈥 |
80.0 |
38.1 |
50.6*8TACME |
8.2*8.2 |
57.0 |
44.0 |
|
2鈥 |
100.0 |
50.8 |
64.2*8TACME |
8.2*8.2 |
63.0 |
50.0 |
|
2 1/2鈥 |
117.0 |
63.5 |
77.7*8TACME |
10.0*10.0 |
68.0 |
58.5 |
|
3鈥 |
129.0 |
76.2 |
91.2*8TACME |
10.0*10.0 |
70.0 |
64.5 |
|
4鈥 |
160.0 |
101.6 |
118.4*8TACME |
10.0*10.0 |
78.0 |
80.0 |
|
4鈥 |
160.0 |
101.6 |
125.9*6TACME |
10.0*10.0 |
78.0 |
80.0 |
* All dimensions are in mm expect specified.
* For more information about sanitary butterfly valves, please contact us when you feel free.
