Pneumatic Sanitary Flanged Butterfly Valves


Pneumatic Sanitary Flanged Butterfly Valves

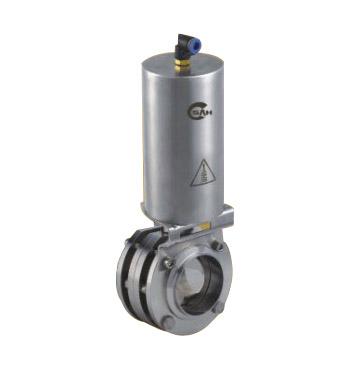

Pneumatic Sanitary Flanged Butterfly Valve is a pneumatic actuator operated sanitary butterfly valves with flanged end. We provides full line pneumatic butterfly valve with flanged ends from 1/2″ to 12″ in stainless steel T304, T316L etc. The air actuator can be assemblied upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, it is widely used in process piping systems for isolation and control.



Options of Pneumatic Flanged Butterfly Valve:

  • Valve body and trim:

Stainless steel T316L, T304 etc, body and disc is forged.

  • Gasket material:

EPDM, NBR, VMQ or FPM, which all confirm to standard of FDA 177.2600

  • End Connection:

Flanged to DIN, SMS, RJT, ISO, IDF, 3A etc.

  • Actuator:

Pneumatic stainless steel actuator (vertical type).

  • Control:

Position sensor, C-TOP controller, C-TOP controller(AS-I)

Operation of Air Actuator:

  • Vertical type, stainless steel 304 material actuator or horizontal type.
  • NC/NO/AA operation for choose from.
  • Normally Closed (NC) – Air to open and spring to close.
  • Normally Open (NO) – Air to close and spring to open.
  • Air to Air (AA) – Air to open, air to close.
  • Supply Pressure of Air Actuator: 70 ~ 115psi (5-8 bar).
  • Surface Finish: Ra 32?in (0.8?m) commonly, or higher upon request.

Applicaiton:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage,Biotech ,Cosmetics etc.


Sanitary Pneumatic Flanged Butterfly Valves Specification

PRODUCT Pneumatic Sanitary Flanged Butterfly Valve
DIMENSION 1/2″ ~ 12″
MATERIAL T304, T316L, 1.4301, 1.4404 etc.
STANDARD 3A, DIN, SMS, ISO, ISO, DS etc.
End Connection Flanged.
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -10°C / 14°F up to +120°C/ +248°F (EPDM)
Pressure 0.2 – 10bar
Operation Pneumatic actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size

*Material

*Quantity

*Standard

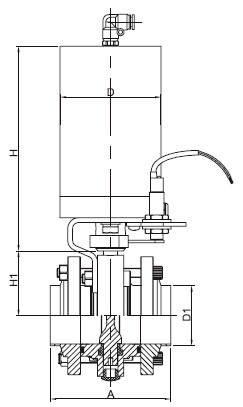

Sanitary Pneumatic Flangd Butterfly Valve-Three-Piece - DIN Series

Dimension of Sanitary Pneumatic Flangd Butterfly Valve-Three-Piece – DIN Series

Size

D

A

H

H1

D1

1

2

DN10

DN15

DN20

86

86

86

98

98

98

305

305

305

41

41

41

12

18

22

13

19

23

DN25

DN32

DN40

86

86

86

98

98

98

305

305

305

41

41

47

28

34

40

29

35

41

DN50

DN65

DN80

86

86

86

100

106

106

305

305

305

53

64

69

52

70

85

53

DN100

DN125

DN150

86.3

133

133

110

140

160

305

425

425

79

116

136

104

129

154

DN200

133

160

425

171

204

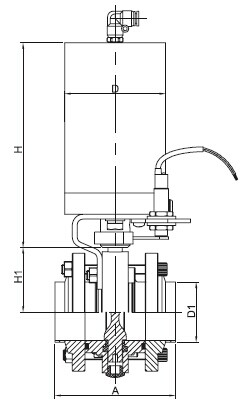

Sanitary Pneumatic Flangd Butterfly Valve-Three-Piece - 3A, SMS, ISO, DS Series

Dimension of Sanitary Pneumatic Flangd Butterfly Valve-Three-Piece – 3A, SMS, ISO, DS Series

Size

D

A

H

H1

D1

1/2”

3/4”

1”

86

86

86

98

98

98

305

305

305

41

41

41

12.7

19

25.4

1 1/4”

1 1/2”

45

86

86

86

98

98

98

305

305

305

41

45

47

31.8

38.1

45

2”

57

2 1/2”

86

86

86

100

100

106

305

305

305

53

53

59

50.8

57

63.5

3”

3.5”

4”

86

86

86

106

110

110

305

305

305

66

71

79

76.2

89

101.6

108

114

5”

86

86

133

110

140

160

305

305

425

81

81

116

108

114.3

127

133

6”

159

133

133

133

160

160

160

425

425

425

116

136

136

133

152.4

159

168.3

8”

219

133

133

133

160

160

160

425

425

425

136

171

171

168.3

203.2

219

* All dimensions are in mm expect specified.

* For more information about Pneumatic Sanitary Flanged Butterfly Valves, please contact us when you feel free.
