Electric Actuated Sanitary Butt-weld Butterfly Valves


Electric Actuated Sanitary Butt-weld Butterfly Valve

Electric Actuated Sanitary Butt-weld Butterfly Valve is electric actuator operated sanitary butterfly valves with Butt-welded ends. We provides full line of electric Butt-weld butterfly valve from 1/2″ to 8″ in stainless steel T304, T316L etc. The electric actuator can be selected upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, with excellent precision and high purity surface. Wellgreen is your reliable partner for processing controlling of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Strengths:

  • Forged valve body – stainless steel T304, T316L.
  • Simple and robust design.
  • Low pressure losing.
  • Renewable design of valve body.
  • Every connection of flanged, butt-welded, tri-clamp, threaded etc.
  • Different series of DIN, 3A, SMS, ISO, IDF, RJT, DS on request.
  • Electric actuator brand on request.
  • Sealing materials conform to FDA 177.2600.



Parameter of Electric Actuator:

  • Protection degree: IP-67.
  • Environment temperature: -2掳C ~ 60掳C (other temperature can be custom made).
  • Installment angle: any angle.
  • Material of body: aluminum alloy diecasting.
  • Features optional: torque than the protection, heated dehumidifier, over-heat protection.
  • Hand operation: by detachable hexagon.
  • Spacing: electrically: completely close and open limit switch.
  • Manually: link stopper.
  • Input signal: 4-20mA.DC, 1-5V.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Output signal: 4-20m A.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Voltage: AC.24V 110V 220V 380V DC.24V Frequency: 50HZ,60 HZ.
  • Type of control: on-off indicator light, passive contact point, opening position, intelligent control
  • Switching time(S): 9,10,13,15,20,25,30,50,60,1000.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage, Biotech, Cosmetics etc.


Electric Actuated Sanitary Butt-weld Butterfly Valves Specification

PRODUCT Electric Actuated Sanitary Butt-welded Butterfly Valve
DIMENSION 1/2″ ~ 8″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS, ISO, ISO, DS etc.
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -2掳C / 28.4掳F up to +60掳C/ +140掳F
PRESSURE 0.2 – 10bar
CONNECTION Butt-welding Ends
OPERATION Electric actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name

*Size

*Material

*Quantity

*Standard





santiary Electric Actuated Butt-weld Butterfly Valve -DIN聽Series

Dimension of Electric Actuated Butt-weld Butterfly Valve -DIN聽Series

SIZE

A

H

H1

D1

L*W

1

2

DN10

50

141

41

12

13

162*115

DN15

50

141

41

18

19

162*115

DN20

50

141

41

22

23

162*115

DN25

50

141

41

28

29

162*115

DN32

50

141

45

34

35

162*115

DN40

50

141

47

40

41

162*115

DN50

50

141

55

52

53

162*115

DN65

56

141

64

70

162*115

DN80

56

141

71

85

162*115

DN100

64

141

81

104

162*115

DN125

74

153

116

129

_

208*122

DN150

80

153

136

154

208*122

DN200

88

153

171

204

208*122



Sanitary Electric Actuated Butt-welded Butterfly Valve -3A, SMS, ISO, DS聽Series

Dimension of Electric Actuated Butt-weld Butterfly Valve -3A, SMS, ISO, DS聽Series

SIZE

A

H

H1

D1

L*W

1/2″

50

141

41

12.7

162*115

3/4″

50

141

41

19

162*115

1″

50

141

41

25.4

162*115

11/4″

50

141

41

31.8

162*115

11/2″

50

141

45

38.1

162*115

45

50

141

47

45

162*115

48

50

141

49

48

162*115

2″

50

141

53

50.8

162*115

57

50

141

55

57

162*115

21/2″

52

141

59

63.5

162*115

3″

56

141

66

76.2

162*115

3.5″

60

141

71

89

162*115

4″(S)

64

141

79

101.6

162*115

4″(L)

64

141

81

101.6

162*115

108

64

141

81

108

162*115

114

64

141

81

114.3

162*115

5″

80

153

116

127

208*122

133

80

153

116

133

208*122

6″

88

153

136

152.4

208*122

159

88

153

136

159

208*122

168.3

88

153

136

168.3

208*122

8″

88

153

171

203.2

208*122

219

88

153

171

219

208*122

*All dimension are in mm except specified.

* For more information about electric actuated sanitary butt-weld butterfly valves, please contact us when you feel free.



Electric Actuated Sanitary Tri-Clamp Butterfly Valves


Electric Actuated Sanitary Tri-Clamp Butterfly Valve

Electric Actuated Sanitary Tri-Clamp Butterfly Valve is electric actuator operated sanitary butterfly valves with tri-clamped ends. We provides full line of electric tri-clamp butterfly valve from 1/2″ to 8″ in stainless steel T304, T316L etc. The electric actuator can be selected upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, with excellent precision and high purity surface. Wellgreen is your reliable partner for processing controlling of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Strengths:

  • Forged valve body – stainless steel T304, T316L.
  • Simple and robust design.
  • Low pressure losing.
  • Renewable design of valve body.
  • Every connection of flanged, butt welded, tri-clamp, threaded etc.
  • Different series of DIN, 3A, SMS, ISO, IDF, RJT, DS on request.
  • Electric actuator brand on request.
  • Sealing materials conform to FDA 177.2600.



Parameter of Electric Actuator:

  • Protection degree: IP-67.
  • Environment temperature: -2掳C ~ 60掳C (other temperature can be custom made).
  • Installment angle: any angle.
  • Material of body: aluminum alloy diecasting.
  • Features optional: torque than the protection, heated dehumidifier, over-heat protection.
  • Hand operation: by detachable hexagon.
  • Spacing: electrically: completely close and open limit switch.
  • Manually: link stopper.
  • Input signal: 4-20mA.DC, 1-5V.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Output signal: 4-20m A.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Voltage: AC.24V 110V 220V 380V DC.24V Frequency: 50HZ,60 HZ.
  • Type of control: on-off indicator light, passive contact point, opening position, intelligent control
  • Switching time(S): 9,10,13,15,20,25,30,50,60,1000.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage, Biotech, Cosmetics etc.


Electric Actuated Sanitary Tri-Clamp Butterfly Valves Specification

PRODUCT Electric Actuated Sanitary Tri-Clamped Butterfly Valve
DIMENSION 1/2″ ~ 8″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS, ISO, ISO, DS etc.
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -2掳C / 28.4掳F up to +60掳C/ +140掳F
PRESSURE 0.2 – 10bar
CONNECTION Tri-clover Ends
OPERATION Electric actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size

*Material

*Quantity

*Standard



Electric Actuated Tri-Clamped Butterfly Valve -DIN聽Series

Dimension of Electric Actuated Tri-Clamp Butterfly Valve -DIN聽Series

SIZE

A

H

H1

D1

L*W

DN10

68

141

41

34

162*115

DN15

68

141

41

34

162*115

DN20

68

141

41

34

162*115

DN25

68

141

41

50.5

162*115

DN32

68

141

41

50.5

162*115

DN40

68

141

41

50.5

162*115

DN50

76

141

55

64

162*115

DN65

80

141

64

91

162*115

DN80

86

141

71

106

162*115

DN100

90

141

81

119

208*122

DN125

118

153

116

144.5

208*122

DN125

118

153

116

155

208*122

DN150

140

153

136

167

208*122

DN150

140

153

136

183

208*122

DN200

158

153

171

217.4

208*122

DN200

158

153

171

233.5

208*122



Electric Actuated Tri-Clamped Butterfly Valve -3A, SMS, ISO, DS聽Series

Dimension of Electric Actuated Tri-Clamp Butterfly Valve -3A, SMS, ISO, DS聽Series

SIZE

A

H

H1

D1

L*W

1/2″

68

141

41

25.4

162*115

3/4″

68

141

41

25.4

162*115

1″

68

141

41

50.5

162*115

11/4″

68

141

41

50.5

162*115

11/2″

68

141

45

50.5

162*115

45

76

141

47

64

162*115

48

76

141

49

64

162*115

2″

76

141

53

64

162*115

57

76

141

55

77.5

162*115

21/2″

80

141

59

77.5

162*115

3″

80

141

66

91

162*115

3.5″

84

141

71

106

162*115

4″

90

141

79

119

162*115

108

90

153

81

119

162*115

114

90

153

81

130

162*115

5″

118

153

116

144.5

208*122

133

118

153

116

155

208*122

6″

140

153

136

167

208*122

159

140

153

136

183

208*122

168.3

140

153

136

183

208*122

8″

150

153

171

217.4

208*122

219

150

153

171

233.5

208*122

*All dimension are in mm except specified.

* For more information about electric actuated sanitary tri-clamp butterfly valves, please contact us when you feel free.

Electric Actuated Sanitary Threaded Butterfly Valves


Electric Actuated Sanitary Threaded Butterfly Valve

Electric Actuated Sanitary Threaded Butterfly Valve is electric actuator operated sanitary butterfly valves with male/female threaded ends. We provides full line electric threaded butterfly valve from 1/2″ to 8″ in stainless steel T304, T316L etc. The electric actuator can be selected upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, with excellent precision and high purity surface. Wellgreen is your reliable partner for processing controlling of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Strengths:

  • Forged valve body – stainless steel T304, T316L.
  • Simple and robust design.
  • Low pressure losing.
  • Renewable design of valve body.
  • Every connection of flanged, butt welded, tri-clamp, threaded etc.
  • Different series of DIN, 3A, SMS, ISO, IDF, RJT, DS on request.
  • Electric actuator brand on request.
  • Sealing materials conform to FDA 177.2600.



Parameter of Electric Actuator:

  • Protection degree: IP-67.
  • Environment temperature: -2掳C ~ 60掳C (other temperature can be custom made).
  • Installment angle: any angle.
  • Material of body: aluminum alloy diecasting.
  • Features optional: torque than the protection, heated dehumidifier, over-heat protection.
  • Hand operation: by detachable hexagon.
  • Spacing: electrically: completely close and open limit switch.
  • Manually: link stopper.
  • Input signal: 4-20mA.DC, 1-5V.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Output signal: 4-20m A.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Voltage: AC.24V 110V 220V 380V DC.24V Frequency: 50HZ,60 HZ.
  • Type of control: on-off indicator light, passive contact point, opening position, intelligent control
  • Switching time(S): 9,10,13,15,20,25,30,50,60,1000.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage, Biotech, Cosmetics etc.


Electric Actuated Sanitary Threaded Butterfly Valves Specification

PRODUCT Electric Actuated Sanitary Threaded Butterfly Valve
DIMENSION 1/2″ ~ 8″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS, ISO, ISO, DS etc.
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -2掳C / 28.4掳F up to +60掳C/ +140掳F
PRESSURE 0.2 – 10bar
CONNECTION Male/Female Threaded Ends
OPERATION Electric actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size

*Material

*Quantity

*Standard



Electric Actuated Threaded Butterfly Valve -DIN聽Series

Dimension of Electric Actuated Threaded Butterfly Valve -DIN聽Series

SIZE

A

H

H1

Rd

L*W

DN10

68

141

41

RD28*1/8

162*115

DN15

68

141

41

RD34*1/8

162*115

DN20

68

141

41

RD44*1/6

162*115

DN25

68

141

41

RD52*1/6

162*115

DN32

68

141

45

RD58*1/6

162*115

DN40

68

141

47

RD65*1/6

162*115

DN50

76

141

55

RD78*1/6

162*115

DN65

80

141

64

RD95*1/6

162*115

DN80

82

141

71

RD110*1/4

162*115

DN100

88

141

81

RD130*1/4

162*115

DN125

128

153

116

RD160*1/4

208*122

DN150

146

153

136

RD190*1/4

208*122



Electric Actuated Threaded Butterfly Valve -SMS聽Series

Dimension of Electric Actuated Threaded Butterfly Valve -SMS聽Series

SIZE

A

H

H1

Rd

L*W

?19

68

141

41

RD36*1/8

162*115

?25

68

141

41

RD40*1/6

162*115

?32

68

141

41

RD48*1/6

162*115

?38

68

141

45

RD60*1/6

162*115

?51

76

141

53

RD70*1/6

162*115

?63

80

141

59

RD85*1/6

162*115

?76

82

141

66

RD98*1/6

162*115

?89

82

141

71

RD105*1/6

162*115

?102(S)

88

141

79

RD125*1/4

162*115

?102(L)

88

141

81

RD132*1/6

162*115



Electric operated Threaded Butterfly Valve -3A聽Series

Dimension of Electric Actuated Threaded Butterfly Valve -3A聽Series

SIZE

A

H

H1

G

L*W

1″

68

141

41

37.1*1/8Acme

162*115

11/4″

68

141

41

45.9*1/8Acme

162*115

11/2″

68

141

44

50.6*1/8Acme

162*115

2″

76

141

53

64.1*1/8Acme

162*115

21/2″

80

141

59

77.6*1/8Acme

162*115

3″

80

141

66

91.1*1/8Acme

162*115

4″

104

141

79

119.2*1/6Acme

162*115

*All dimension are in mm except specified.

* For more information about electric actuated sanitary threaded butterfly valves, please contact us when you feel free.

Electric Actuated Sanitary Flanged Butterfly Valves


Electric Actuated Sanitary Flanged Butterfly Valve

Electric Actuated Sanitary Flanged Butterfly Valve is electric actuator operated sanitary butterfly valves with flange ends connection. We provides full line electric flanged butterfly valve from 1/2″ to 8″ in stainless steel T304, T316L etc. The electric actuator can be selected upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, with excellent precision and high purity surface. Wellgreen is your reliable partner for processing controlling of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Strengths:

  • Forged valve body – stainless steel T304, T316L.
  • Simple and robust design.
  • Low pressure losing.
  • Renewable design of valve body.
  • Every connection of flanged, butt welded, tri-clamp, threaded etc.
  • Different series of DIN, 3A, SMS, ISO, IDF, RJT, DS on request.
  • Electric actuator brand on request.
  • Sealing materials conform to FDA 177.2600.



Parameter of Electric Actuator:

  • Protection degree: IP-67.
  • Environment temperature: -2掳C ~ 60掳C (other temperature can be custom made).
  • Installment angle: any angle.
  • Material of body: aluminum alloy diecasting.
  • Features optional: torque than the protection, heated dehumidifier, over-heat protection.
  • Hand operation: by detachable hexagon.
  • Spacing: electrically: completely close and open limit switch.
  • Manually: link stopper.
  • Input signal: 4-20mA.DC, 1-5V.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Output signal: 4-20m A.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Voltage: AC.24V 110V 220V 380V DC.24V Frequency: 50HZ,60 HZ.
  • Type of control: on-off indicator light, passive contact point, opening position, intelligent control
  • Switching time(S): 9,10,13,15,20,25,30,50,60,1000.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage, Biotech, Cosmetics etc.


Electric Actuated Sanitary Flanged Butterfly Valves Specification

PRODUCT Electric Actuated Sanitary Flanged Butterfly Valve
DIMENSION 1/2″ ~ 8″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS, ISO, ISO, DS etc.
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -2掳C / 28.4掳F up to +60掳C/ +140掳F
PRESSURE 0.2 – 10bar
CONNECTION Flange Ends, three piece design
OPERATION Electric actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name

*Size

*Material

*Quantity

*Standard





Electric Actuated Flanged(three-piece) Butterfly Valve -DIN聽Series

Dimension of Electric Actuated Flanged(three-piece) Butterfly Valve -DIN聽Series

SIZE

A

H

H1

D1

L*W

1

2

DN10

98

141

41

12

13

162*115

DN15

98

141

41

18

19

162*115

DN20

98

141

41

22

23

162*115

DN25

98

141

41

28

29

162*115

DN32

98

141

41

34

35

162*115

DN40

98

141

47

40

41

162*115

DN50

110

141

53

52

53

162*115

DN65

106

141

64

70

162*115

DN80

106

141

79

85

162*115

DN100

110

141

79

104

162*115

DN125

140

153

116

129

208*122

DN150

160

153

136

154

208*122

DN200

160

153

171

204

208*122



Electric Actuated Flanged(three-piece) Butterfly Valve -3A, SMS, ISO, DS聽Series

Dimension of Electric Actuated Flanged(three-piece) Butterfly Valve -3A, SMS, ISO, DS聽Series

SIZE

A

H

H1

D1

L*W

1/2″

98

141

41

12.7

162*115

3/4″

98

141

41

19

162*115

1″

98

141

41

25.4

162*115

11/4″

98

141

41

31.8

162*115

11/2″

98

141

45

38.1

162*115

45

98

141

47

45

162*115

2″

100

141

53

50.8

162*115

57

100

141

53

57

162*115

21/2″

100

141

59

63.5

162*115

3″

106

141

66

76.2

162*115

3.5″

106

141

71

89

162*115

4″

110

141

79

101.6

162*115

108

110

153

81

108

208*122

114

110

153

81

114.3

208*122

5″

140

153

116

127

208*122

133

140

153

116

133

208*122

6″

160

153

136

152.4

208*122

159

160

153

136

159

208*122

168.3

160

153

136

168.3

208*122

8″

160

153

171

203.2

208*122

219

160

153

171

219

208*122

*All dimension are in mm except specified.

* For more information about electric actuated sanitary flanged butterfly valves, please contact us when you feel free.

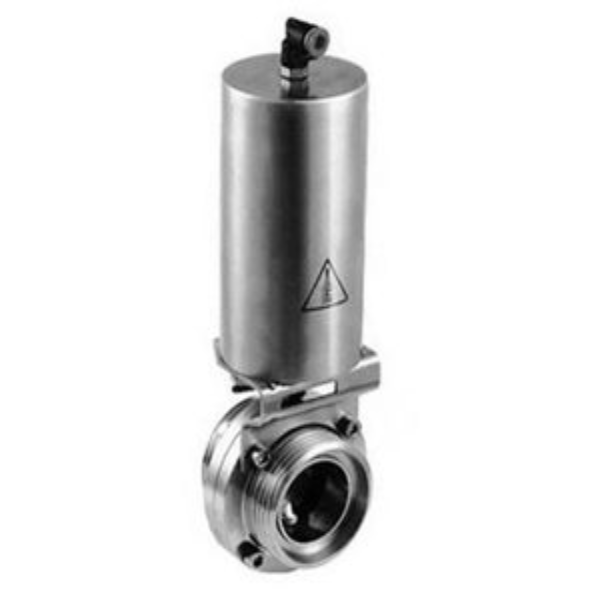

Pneumatic Sanitary Butt Weld Butterfly Valves


Pneumatic Sanitary Butt Weld Butterfly Valves

Pneumatic Sanitary Butt Weld Butterfly Valve is butt weld connected sanitary butterfly valves which operated by pneumatic actuator. We provides full line pneumatic butterfly valve with butt weld ends from 1/2″ to 12″ in stainless steel T304, T316L etc. The air actuator can be assemblied upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, it is widely used in聽process piping systems for isolation and control.



Options of Pneumatic Butt Weld Butterfly Valve:

  • Valve聽body and trim:

Stainless steel T316L, T304 etc, body and disc is forged.

  • Gasket material:

EPDM, NBR, VMQ or FPM, which all confirm to standard of FDA 177.2600

  • End Connection:

Butt-welding to DIN, SMS, 3A etc.

  • Actuator:

Pneumatic stainless steel actuator (vertical type).

  • Control:

Position sensor, C-TOP controller, C-TOP controller(AS-I)

Operation of Air Actuator:

  • Vertical type, stainless steel 304 material actuator or horizontal type.
  • NC/NO/AA operation for choose from.
  • Normally Closed (NC) – Air to open and spring to close.
  • Normally Open (NO) – Air to close and spring to open.
  • Air to Air (AA) – Air to open, air to close.
  • Supply Pressure of Air Actuator:聽70 ~ 115psi (5-8 bar).
  • Surface Finish:聽Ra 32?in (0.8?m) commonly, or higher upon request.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage,Biotech ,Cosmetics etc.


Pneumatic Actuated Sanitary Butt Welded Butterfly Valves Specification

PRODUCT Pneumatic Sanitary Butt-weld Butterfly Valve
DIMENSION 1/2″ ~ 12″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS etc.
End Connection Butt-welding Ends
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -10掳C / 14掳F up to +120掳C/ +248掳F (EPDM)
Pressure 0.2 – 10bar
Operation Pneumatic actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name

*Size

*Material

*Quantity

*Standard





Sanitary Pneumatic Butt Weld Butterfly Valve - DIN聽Series

Dimension of Pneumatic Sanitary Butt Weld Butterfly Valve – DIN聽Series

SIZE

D

A

H

H1

D1

1

2

DN10

86

50

182

41

12

13

DN15

86

50

182

41

18

19

DN20

86

50

182

41

22

23

DN25

86

50

182

41

28

29

DN32

86

50

182

45

34

35

DN40

86

50

182

47

40

41

DN50

86

50

182

55

52

53

DN65

86

56

182

64

70

DN80

86

56

182

71

85

DN100

86

64

182

81

104

DN125

133

74

300

116

129

DN150

133

80

300

136

154

DN200

133

88

300

171

204



Sanitary Pneumatic Butt Weld Butterfly Valve - 3A Series

Dimension of Pneumatic Sanitary Butt Weld Butterfly Valve – 3A, SMS, ISO, DS Series

SIZE

D

A

H

H1

D1

1/2″

86

50

182

41

12.7

3/4″

86

50

182

41

19

1″

86

50

182

41

25.4

11/4″

86

50

182

41

31.8

11/2″

86

50

182

45

38.1

45

86

50

182

47

45

48

86

50

182

49

48

2″

86

50

182

53

50.8

57

86

50

182

55

57

21/2″

86

52

182

59

63.5

3″

86

56

182

66

76.2

3.5″

86

60

182

71

89

4″(S)

86

64

182

79

101.6

4″(L)

86

64

182

81

101.6

108

86

64

182

81

108

114

86

64

182

81

114.3

5″

133

80

300

116

127

133

133

80

300

116

133

6″

133

88

300

136

152.4

159

133

88

300

136

159

168.3

133

88

300

136

168.8

8″

133

88

300

171

203.2

219

133

88

300

171

219

* All dimensions are in mm expect specified.

* For more information about Pneumatic Sanitary Butt Weld Butterfly Valves, please contact us now.

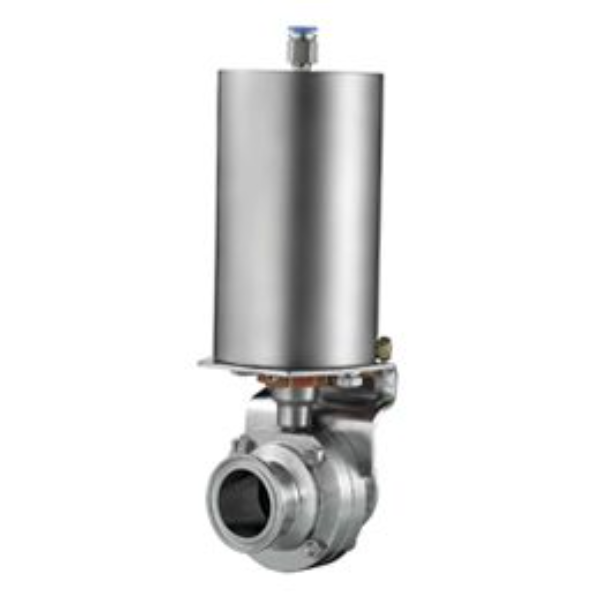

Pneumatic Sanitary Tri-Clamp Ends Butterfly Valves


Pneumatic Sanitary Tri-Clamp Ends Butterfly Valves

Pneumatic Sanitary Tri-Clamp Ends Butterfly Valve is a pneumatic actuator operated sanitary butterfly valves which with tri-clamp ends connected. We provides full line pneumatic butterfly valve with tri-clamp ends from 1/2″ to 12″ in stainless steel T304, T316L etc. The air actuator can be assemblied upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, it is widely used in聽process piping systems for isolation and control.



Options of Pneumatic Tri-Clamp Ends Butterfly Valve:

  • Valve聽body and trim:

Stainless steel T316L, T304 etc, body and disc is forged.

  • Gasket material:

EPDM, NBR, VMQ or FPM, which all confirm to standard of FDA 177.2600

  • End Connection:

Tri-Clamp Ends to DIN, SMS, 3A etc.

  • Actuator:

Pneumatic stainless steel actuator (vertical type).

  • Control:

Position sensor, C-TOP controller, C-TOP controller(AS-I)

Operation of Air Actuator:

  • Vertical type, stainless steel 304 material actuator or horizontal type.
  • NC/NO/AA operation for choose from.
  • Normally Closed (NC) – Air to open and spring to close.
  • Normally Open (NO) – Air to close and spring to open.
  • Air to Air (AA) – Air to open, air to close.
  • Supply Pressure of Air Actuator:聽70 ~ 115psi (5-8 bar).
  • Surface Finish:聽Ra 32?in (0.8?m) commonly, or higher upon request.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage,Biotech ,Cosmetics etc.


Pneumatic Actuated Sanitary Tri-Clamp Ends Butterfly Valves Specification

PRODUCT Pneumatic Sanitary Tri-Clamp Ends Butterfly Valve
DIMENSION 1/2″ ~ 12″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS etc.
End Connection Tri-clamp/tri-clover Ends
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -10掳C / 14掳F up to +120掳C/ +248掳F (EPDM)
Pressure 0.2 – 10bar
Operation Pneumatic actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name

*Size

*Material

*Quantity

*Standard





Sanitary Pneumatic Tri-Clamp Ends Butterfly Valve - DIN聽Series

Dimension of Pneumatic Sanitary Tri-Clamp Ends Butterfly Valve – DIN聽Series

SIZE

D

A

H

H1

D1

DN10

86

68

182

41

34

DN15

86

68

182

41

34

DN20

86

68

182

41

34

DN25

86

68

182

41

50.5

DN32

86

68

182

45

50.5

DN40

86

68

182

47

50.5

DN50

86

74

182

55

64

DN65

86

80

182

64

91

DN80

86

84

182

71

106

DN100

86

90

182

81

119

DN125

133

118

300

116

144.5

DN150

133

140

300

136

167

DN200

133

158

300

171

217.4



Sanitary Pneumatic Tri-Clamp Ends Butterfly Valve - 3A Series

Dimension of Pneumatic Sanitary Tri-Clamp Ends Butterfly Valve – 3A, SMS, ISO, DS Series

SIZE

D

A

H

H1

D1

1/2″

86

68

182

41

25.4

3/4″

86

68

182

41

25.4

1″

86

68

182

41

50.5

11/4″

86

68

182

41

50.5

11/2″

86

68

182

45

50.5

45

86

76

182

47

64

48

86

76

182

49

64

2″

86

76

182

53

64

57

86

76

182

55

77.5

21/2″

86

80

182

59

77.5

3″

86

80

182

66

91

3.5″

86

84

182

71

106

4″

86

90

182

79

119

108

86

90

182

81

119

114

86

90

182

81

130

5″

133

118

300

116

144.5

133

133

118

300

116

155

6″

133

140

300

136

167

159

133

140

300

136

183

168.3

133

140

300

136

183

8″

133

150

300

171

217.4

219

133

150

300

171

233.5

* All dimensions are in mm expect specified.

* For more information about Pneumatic Sanitary Tri-Clamp Ends Butterfly Valves, please contact us when you feel free.



Pneumatic Sanitary Threaded Butterfly Valves


Pneumatic Sanitary Threaded Butterfly Valves

Pneumatic Sanitary Threaded Butterfly Valve is pneumatic actuator operated sanitary butterfly valves which聽with male/female threaded ends. We provides full line pneumatic butterfly valve with threaded ends from 1/2″ to 12″ in stainless steel T304, T316L etc. The air actuator can be assemblied upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, it is widely used in聽process piping systems for isolation and control.

Options of Pneumatic Threaded Butterfly Valve:

  • Valve聽body and trim:

Stainless steel T316L, T304 etc, body and disc is forged.

  • Gasket material:

EPDM, NBR, VMQ or FPM, which all confirm to standard of FDA 177.2600

  • End Connection:

Male/Female threaded to DIN, SMS, 3A etc.

  • Actuator:

Pneumatic stainless steel actuator (vertical type).

  • Control:

Position sensor, C-TOP controller, C-TOP controller(AS-I)

Operation of Air Actuator:

  • Vertical type, stainless steel 304 material actuator or horizontal type.
  • NC/NO/AA operation for choose from.
  • Normally Closed (NC) – Air to open and spring to close.
  • Normally Open (NO) – Air to close and spring to open.
  • Air to Air (AA) – Air to open, air to close.
  • Supply Pressure of Air Actuator:聽70 ~ 115psi (5-8 bar).
  • Surface Finish:聽Ra 32?in (0.8?m) commonly, or higher upon request.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage,Biotech ,Cosmetics etc.


Sanitary Pneumatic Threaded Butterfly Valves Specification

PRODUCT Pneumatic Sanitary Threaded Butterfly Valve
DIMENSION 1/2″ ~ 12″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS etc.
End Connection Male Threaded, Female Threaded.
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -10掳C / 14掳F up to +120掳C/ +248掳F (EPDM)
Pressure 0.2 – 10bar
Operation Pneumatic actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size *Material *Quantity *Standard

Sanitary Pneumatic Threaded Butterfly Valve - DIN聽Series

Dimension of Sanitary Pneumatic Threaded Butterfly Valve – DIN聽Series

SIZE

D

A

H

H1

Rd

DN10

86

68

182

41

RD28*1/8

DN15

86

68

182

41

RD34*1/8

DN20

86

68

182

41

RD44*1/6

DN25

86

68

182

41

RD52*1/6

DN32

86

68

182

45

RD58*1/6

DN40

86

68

182

47

RD65*1/6

DN50

86

76

182

55

RD78*1/6

DN65

86

80

182

64

RD95*1/6

DN80

86

82

182

71

RD110*1/4

DN100

86

88

182

81

RD130*1/4

DN125

133

128

300

116

RD160*1/4

DN150

133

146

300

136

RD190*1/4

Sanitary Pneumatic Threaded Butterfly Valve - 3A Series

Dimension of Sanitary Pneumatic Threaded Butterfly Valve – 3A Series

SIZE

D

A

H

H1

G

1鈥

86

68

182

41

37.1*1/8Acme

11/4鈥

86

68

182

41

45.9*1/8Acme

11/2鈥

86

68

182

44

50.6*1/8Acme

2鈥

86

76

182

53

64.1*1/8Acme

21/2鈥

86

80

182

59

77.6*1/8Acme

3鈥

86

80

182

66

91.1*1/8Acme

4鈥

86

104

182

79

119.2/6Acme

Sanitary Pneumatic Threaded Butterfly Valve - SMS Series

Dimension of Sanitary Pneumatic Threaded Butterfly Valve – SMS Series

SIZE

D

A

H

H1

Rd

?19

86

68

182

41

Rd36*1/8

?25

86

68

182

41

Rd40*1/6

?32

86

68

182

41

Rd48*1/6

?38

86

68

182

45

Rd60*1/6

?51

86

76

182

53

Rd70*1/6

?63

86

80

182

59

Rd85*1/6

?76

86

80

182

66

Rd98*1/6

?89

86

80

182

71

Rd105*1/6

?102(S)

86

88

182

79

Rd125*1/4

?102(L)

86

88

182

81

Rd132*1/6

* All dimensions are in mm expect specified.

* For more information about Pneumatic Sanitary Threaded Butterfly Valves, please contact us when you feel free.



Pneumatic Sanitary Flanged Butterfly Valves


Pneumatic Sanitary Flanged Butterfly Valves

Pneumatic Sanitary Flanged Butterfly Valve is a pneumatic actuator operated sanitary butterfly valves with flanged end. We provides full line pneumatic butterfly valve with flanged ends from 1/2″ to 12″ in stainless steel T304, T316L etc. The air actuator can be assemblied upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, it is widely used in聽process piping systems for isolation and control.



Options of Pneumatic Flanged Butterfly Valve:

  • Valve聽body and trim:

Stainless steel T316L, T304 etc, body and disc is forged.

  • Gasket material:

EPDM, NBR, VMQ or FPM, which all confirm to standard of FDA 177.2600

  • End Connection:

Flanged to DIN, SMS, RJT, ISO, IDF, 3A etc.

  • Actuator:

Pneumatic stainless steel actuator (vertical type).

  • Control:

Position sensor, C-TOP controller, C-TOP controller(AS-I)

Operation of Air Actuator:

  • Vertical type, stainless steel 304 material actuator or horizontal type.
  • NC/NO/AA operation for choose from.
  • Normally Closed (NC) – Air to open and spring to close.
  • Normally Open (NO) – Air to close and spring to open.
  • Air to Air (AA) – Air to open, air to close.
  • Supply Pressure of Air Actuator:聽70 ~ 115psi (5-8 bar).
  • Surface Finish:聽Ra 32?in (0.8?m) commonly, or higher upon request.

Applicaiton:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage,Biotech ,Cosmetics etc.


Sanitary Pneumatic Flanged Butterfly Valves Specification

PRODUCT Pneumatic Sanitary Flanged Butterfly Valve
DIMENSION 1/2″ ~ 12″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS, ISO, ISO, DS etc.
End Connection Flanged.
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -10掳C / 14掳F up to +120掳C/ +248掳F (EPDM)
Pressure 0.2 – 10bar
Operation Pneumatic actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size

*Material

*Quantity

*Standard



Sanitary Pneumatic Flangd Butterfly Valve-Three-Piece - DIN聽Series

Dimension of Sanitary Pneumatic Flangd Butterfly Valve-Three-Piece – DIN聽Series

Size

D

A

H

H1

D1

1

2

DN10

DN15

DN20

86

86

86

98

98

98

305

305

305

41

41

41

12

18

22

13

19

23

DN25

DN32

DN40

86

86

86

98

98

98

305

305

305

41

41

47

28

34

40

29

35

41

DN50

DN65

DN80

86

86

86

100

106

106

305

305

305

53

64

69

52

70

85

53

DN100

DN125

DN150

86.3

133

133

110

140

160

305

425

425

79

116

136

104

129

154

DN200

133

160

425

171

204



Sanitary Pneumatic Flangd Butterfly Valve-Three-Piece - 3A, SMS, ISO, DS聽Series

Dimension of Sanitary Pneumatic Flangd Butterfly Valve-Three-Piece – 3A, SMS, ISO, DS聽Series

Size

D

A

H

H1

D1

1/2鈥

3/4鈥

1鈥

86

86

86

98

98

98

305

305

305

41

41

41

12.7

19

25.4

1 1/4鈥

1 1/2鈥

45

86

86

86

98

98

98

305

305

305

41

45

47

31.8

38.1

45

2鈥

57

2 1/2鈥

86

86

86

100

100

106

305

305

305

53

53

59

50.8

57

63.5

3鈥

3.5鈥

4鈥

86

86

86

106

110

110

305

305

305

66

71

79

76.2

89

101.6

108

114

5鈥

86

86

133

110

140

160

305

305

425

81

81

116

108

114.3

127

133

6鈥

159

133

133

133

160

160

160

425

425

425

116

136

136

133

152.4

159

168.3

8鈥

219

133

133

133

160

160

160

425

425

425

136

171

171

168.3

203.2

219

* All dimensions are in mm expect specified.

* For more information about Pneumatic Sanitary Flanged Butterfly Valves, please contact us when you feel free.



Sanitary Butterfly type Ball Valve


Sanitary Butterfly Type Ball Valve

Sanitary Butterfly type ball Valve is a new design sanitary ball valve. Its shape likes butterfly valve type, but the closing-opening part is a ball which is rotary to control the valve opening and closing. Sanitary butterfly ball valve is made in stainless steel 1.4301, 1.4404 or T316L, T304 ete. We are ability to provides butterfly type ball valve with tri-clamp, welded, threaded connection etc, and operation can be manual, air operated, electric operated etc. Wellgreen sanitary offers fully line of sanitary valves聽for 聽food processing, beverages, fruit juices, wine, biopharmaceutical聽etc.

聽聽聽 Valve types:

  • 聽聽 聽 Manual Butterfly type Ball Valve
  • 聽聽 聽 Pneumatic Butterfly type Ball Valve
  • 聽聽聽聽 Electric Butterfly type Ball Valve

聽聽聽 Strength:

  • Stainless steel T316L, T304, 1.4301, 1.4404 or specified.
  • Small fluid resistance and drainable.
  • Simple and compact structure, light weight, strong and reliable design.
  • Low-torque, 90掳 rotation, facilitate of remote controlling.
  • Variety connection of tri-clamp, welded, threaded etc.
  • Surface finishing: External surface sand blasting, Internal surface Ra 0.8?m or on request.
  • Operation of manual, air, electric actuator etc available.
  • Sealing materials complies with FDA 177.2600.
  • Standard of 3A,DIN,SMS,RJT etc.

聽聽聽 Application: 聽聽聽 Applied to processing control and piping system, especially for brewery and winery fermentation tank etc.




Sanitary Butterfly type Ball Valves Specification

PRODUCT Sanitary Butterfly type Ball Valve
DIMENSION 1/2″ ~ 4″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A,DIN,SMS,ISO,IDF,BPE,RJT,DS etc.
SEALING GASKET PTFE, EPDM, FPM, SILICONE etc.
TEMPERATURE -30掳C / -22掳F up to +150掳C/ +302掳F
Pressure 0-10bar
Operation Manual, Pneumatic, Electric
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage, Biotech, Cosmetics etc.

How to order *Part Name*Size*Material *Quantity *Standard

Sanitary Welded butterfly-type ball valve -DIN Series

Dimension of Sanitary Welded butterfly-type ball valve -DIN Series聽W5047

Size

D1

D2

L

L1

H

t

KxK

DN15

18

19

72

126

86

1.5

8*8

DN20

22

23

72

126

86

1.5

8*8

DN25

28

29

72

126

90

1.5

8*8

DN32

34

35

80

126

92

1.5

8*8

DN40

40

41

84

133

104

1.5

10*10

DN50

52

53

98

144

113

1.5

10*10

DN65

70

120

160

131

2.0

11*11

DN80

85

140

220

144

2.0

11*11

DN100

104

164

284

161

2.0

14*14



Dimension of Sanitary Welded Butterfly-type Ball Valve -3A,SMS,ISO,IDF,DS Series聽W5048

Size

D

L

L1

H

t

KxK

3/4鈥

19

72

126

86

1.5

8*8

1鈥

25.4

72

126

90

1.5

8*8

1 1/4鈥

31.8

80

126

92

1.5

8*8

1 1/2鈥

38

84

133

104

1.5

10*10

2

50.8

98

144

113

1.5

10*10

2 1/2鈥

63.5

116

160

128

2.0

11*11

3鈥

76.2

132

220

138

2.0

11*11

3 1/2鈥

89

140

220

144

2.0

11*11

4鈥

101.6

164

284

161

2.0

14*14

Sanitary Clamped Butterfly-type Ball Valve -DIN Series

Dimension of Sanitary Clamped Butterfly-type Ball Valve -DIN Series聽W5045

Size

D

L

L1

H

t

KxK

DN15

34

72

126

86

1.5

8*8

DN20

34

72

126

86

1.5

8*8

DN25

50.5

72

126

90

1.5

8*8

DN32

50.5

80

126

92

1.5

8*8

DN40

50.5

84

133

104

1.5

10*10

DN50

64

98

144

113

1.5

10*10

DN65

91

120

160

131

2.0

11*11

DN80

106

140

220

144

2.0

11*11

DN100

119

164

284

161

2.0

14*14



Dimension of Sanitary Clamped Butterfly-type Ball Valve-3A,SMS,ISO,IDF,DS聽Series聽W5046

Size

D

L

L1

H

KxK

3/4鈥

25.4

72

126

86

8*8

1鈥

50.5

72

126

90

8*8

1 1/4鈥

50.5

80

126

92

8*8

1 1/2鈥

50.5

84

133

104

10*10

2

64

98

144

113

10*10

2 1/2鈥

77.5

116

160

128

11*11

3鈥

91

132

220

138

11*11

3 1/2鈥

106

140

220

144

11*11

4鈥

119

164

284

161

14*14

Sanitary Threaded Butterfly-type Ball Valve聽-DIN Series

Dimension of Sanitary Threaded Butterfly-type Ball Valve聽-DIN Series聽W5051

Size

G

L

L1

H

KxK

DN15

Rd33.5*1/8

72

126

86

8*8

DN20

Rd43.5*1/6

72

126

86

8*8

DN25

Rd51.5*1/6

72

126

90

8*8

DN32

Rd57.5*1/6

80

126

92

8*8

DN40

Rd64.5*1/6

84

133

104

10*10

DN50

Rd77.5*1/6

98

144

113

10*10

DN65

Rd94.5*1/6

120

160

131

11*11

DN80

Rd109.3*1/4

140

220

144

11*11

DN100

Rd129.3*1/4

164

284

161

14*14

Sanitary Threaded Butterfly-type Ball Valve聽-3A Series

Dimension of Sanitary Threaded Butterfly-type Ball Valve聽-3A Series聽W5053

Size

D

L

L1

H

KxK

1鈥

37.1*1/8Acme

72

126

90

8*8

1 1/4鈥

45.9*1/8Acme

80

126

92

8*8

1 1/2鈥

50.6*1/8Acme

84

133

104

10*10

2

64.1*1/8Acme

98

144

113

10*10

2 1/2鈥

77.6*1/8Acme

116

160

128

11*11

3鈥

91.1*1/8Acme

132

220

138

11*11

4鈥

119.2*1/6Acme

164

284

161

14*14

Sanitary Threaded Butterfly-type Ball Valve聽-SMS Series

Dimension of Sanitary Threaded Butterfly-type Ball Valve聽-SMS Series聽W5052

Size

D

L

L1

H

KxK

3/4鈥

Rd33.5*1/8

72

126

86

8*8

1鈥

Rd39.5*1/6

72

126

90

8*8

1 1/4鈥

Rd47.5*1/6

80

126

92

8*8

1 1/2鈥

Rd59.5*1/6

84

133

104

10*10

2

Rd69.5*1/6

98

144

113

10*10

2 1/2鈥

Rd84.5*1/6

116

160

128

11*11

3鈥

Rd97.5*1/6

132

220

138

11*11

3 1/2鈥

Rd104.3*1/6

140

220

144

11*11

4鈥(S)

Rd124.3*1/4

164

284

161

14*14

4鈥(L)

Rd131.3*1/6

164

284

161

14*14

* For more information about sanitary butterfly type ball valve, please contact us when you feel free.

Sanitary Threaded Diaphragm Valves


Sanitary Threaded Diaphragm Valve

Sanitary Threaded Diaphragm Valve is female threaded connected diaphragm valve. Our sanitary threaded diaphragm valves with DIN, SMS, ISO, IDF, RJT series etc. The valve body is forged and materials in stainless steel T304 and T316L. We offers sanitary threaded diaphragm valve from 1/2″ to 2″, it can be manual or air operation. Wellgreen supply different sanitary valves to meet variety needs for hygienic industries such as Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Features:

  • 聽聽 聽 Valve body is forged of stainless steel T316L, 1.4404 or specified.
  • 聽聽 聽 Internal surface is up to Ra 0.4?m, external shot blasting.
  • 聽聽 聽 Variety connection of butt weld, tri-clamp, threaded etc.
  • 聽聽 聽 PTFE/EPDM composite diaphragm to FDA177.2600.
  • 聽聽 聽 Different operation of manual, air, electirc available.



聽聽聽 Application:

聽聽聽 Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.




Sanitary Threaded Diaphragm Valves Specification

PRODUCT Sanitary Threaded Diaphragm Valve
DIMENSION 1/2″ ~ 2″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD DIN, SMS, ISO, IDF, BPE, RJT etc.
SEALING GASKET PTFE, EPDM, Silicone, FPM etc.
TEMPERATURE -20掳C / -4掳F up to +135掳C/ +275掳F
Working Pressure 0-10bar
Operation Manual, Pneumatic
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size*Material

*Quantity

*Standard





Sanitary Threaded Diaphragm Valve - DIN Series

Dimension of Sanitary Threaded Diaphragm Valve – DIN Series

Size

A

G

H

DN20

153.0

RD44*1/6

91/102

DN25

165.0

RD52*1/6

110/123

DN32

180.0

RD58*1/6

129/138

DN40

190.0

RD65*1/6

139/159

DN50

222.0

RD78*1/6

159/186



Sanitary Threaded Diaphragm Valve - sms Series

Dimension of Sanitary Threaded Diaphragm Valve – SMS Series

Size

A

B

H

25

161.0

RD40*1/6

110/123

32

176.0

RD48*1/6

129/138

38

190.0

RD60*1/6

139/159

51

220.0

RD70*1/6

159/186



Sanitary Threaded Diaphragm Valve -iso-idf Series

Dimension of Sanitary Threaded Diaphragm Valve – ISO/IDF Series

Size

A

G

H

1″

168.0

37.1x8TACME

110/123

11/2″

193.0

50.6x8TACME

139/159

2″

223.0

64.2x8TACME

159/186



Sanitary Threaded Diaphragm Valve -rtj Series

Dimension of Sanitary Threaded Diaphragm Valve – RJT Series

Size

A

G

H

1″

179.0

45.7×1/8TWHIT

110/123

11/2″

204.0

58.4×1/8TWHIT

139/159

2″

234.0

72.7×1/8TWHIT

159/186

* If you didn’t find your dimension of Sanitary Threaded Diaphragm Valves here, please contact us for details.
