Electric Actuated Sanitary Butt-weld Butterfly Valve

Electric Actuated Sanitary Butt-weld Butterfly Valve is electric actuator operated sanitary butterfly valves with Butt-welded ends. We provides full line of electric Butt-weld butterfly valve from 1/2″ to 8″ in stainless steel T304, T316L etc. The electric actuator can be selected upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, with excellent precision and high purity surface. Wellgreen is your reliable partner for processing controlling of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Strengths:

• Forged valve body – stainless steel T304, T316L.
• Simple and robust design.
• Low pressure losing.
• Renewable design of valve body.
• Every connection of flanged, butt-welded, tri-clamp, threaded etc.
• Different series of DIN, 3A, SMS, ISO, IDF, RJT, DS on request.
• Electric actuator brand on request.
• Sealing materials conform to FDA 177.2600.



Parameter of Electric Actuator:

• Protection degree: IP-67.
• Environment temperature: -2°C ~ 60°C (other temperature can be custom made).
• Installment angle: any angle.
• Material of body: aluminum alloy diecasting.
• Features optional: torque than the protection, heated dehumidifier, over-heat protection.
• Hand operation: by detachable hexagon.
• Spacing: electrically: completely close and open limit switch.
• Manually: link stopper.
• Input signal: 4-20mA.DC, 1-5V.DC, 0-10V.DC (other signals can be chose before leaving factory).
• Output signal: 4-20m A.DC, 0-10V.DC (other signals can be chose before leaving factory).
• Voltage: AC.24V 110V 220V 380V DC.24V Frequency: 50HZ,60 HZ.
• Type of control: on-off indicator light, passive contact point, opening position, intelligent control
• Switching time(S): 9,10,13,15,20,25,30,50,60,1000.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage, Biotech, Cosmetics etc.

---

Electric Actuated Sanitary Butt-weld Butterfly Valves Specification

PRODUCT	Electric Actuated Sanitary Butt-welded Butterfly Valve
DIMENSION	1/2″ ~ 8″
MATERIAL	T304, T316L, 1.4301, 1.4404 etc.
STANDARD	3A, DIN, SMS, ISO, ISO, DS etc.
SEALING GASKET	EPDM, NBR, FPM, Silicone etc.
TEMPERATURE	-2°C / 28.4°F up to +60°C/ +140°F
PRESSURE	0.2 – 10bar
CONNECTION	Butt-welding Ends
OPERATION	Electric actuator
APPLICATION	Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.
How to order	*Part Name *Size *Material *Quantity *Standard

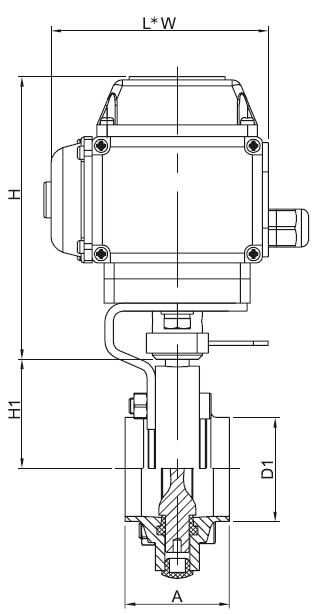

Dimension of Electric Actuated Butt-weld Butterfly Valve -DIN Series

SIZE	A	H	H1	D1		L*W
				1	2
DN10	50	141	41	12	13	162*115
DN15	50	141	41	18	19	162*115
DN20	50	141	41	22	23	162*115
DN25	50	141	41	28	29	162*115
DN32	50	141	45	34	35	162*115
DN40	50	141	47	40	41	162*115
DN50	50	141	55	52	53	162*115
DN65	56	141	64	70	–	162*115
DN80	56	141	71	85	–	162*115
DN100	64	141	81	104	–	162*115
DN125	74	153	116	129	_	208*122
DN150	80	153	136	154	–	208*122
DN200	88	153	171	204	–	208*122

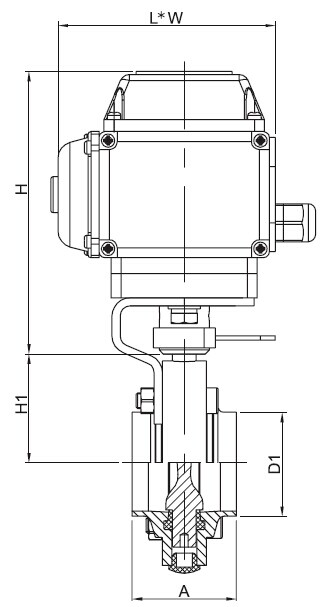

Dimension of Electric Actuated Butt-weld Butterfly Valve -3A, SMS, ISO, DS Series

SIZE	A	H	H1	D1	L*W
1/2″	50	141	41	12.7	162*115
3/4″	50	141	41	19	162*115
1″	50	141	41	25.4	162*115
11/4″	50	141	41	31.8	162*115
11/2″	50	141	45	38.1	162*115
45	50	141	47	45	162*115
48	50	141	49	48	162*115
2″	50	141	53	50.8	162*115
57	50	141	55	57	162*115
21/2″	52	141	59	63.5	162*115
3″	56	141	66	76.2	162*115
3.5″	60	141	71	89	162*115
4″(S)	64	141	79	101.6	162*115
4″(L)	64	141	81	101.6	162*115
108	64	141	81	108	162*115
114	64	141	81	114.3	162*115
5″	80	153	116	127	208*122
133	80	153	116	133	208*122
6″	88	153	136	152.4	208*122
159	88	153	136	159	208*122
168.3	88	153	136	168.3	208*122
8″	88	153	171	203.2	208*122
219	88	153	171	219	208*122

*All dimension are in mm except specified.

* For more information about electric actuated sanitary butt-weld butterfly valves, please contact us when you feel free.
