Electric Actuated Sanitary Tri-Clamp Butterfly Valve is electric actuator operated sanitary butterfly valves with tri-clamped ends. We provides full line of electric tri-clamp butterfly valve from 1/2″ to 8″ in stainless steel T304, T316L etc. The electric actuator can be selected upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, with excellent precision and high purity surface. Wellgreen is your reliable partner for processing controlling of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.



Strengths:

  • Forged valve body – stainless steel T304, T316L.
  • Simple and robust design.
  • Low pressure losing.
  • Renewable design of valve body.
  • Every connection of flanged, butt welded, tri-clamp, threaded etc.
  • Different series of DIN, 3A, SMS, ISO, IDF, RJT, DS on request.
  • Electric actuator brand on request.
  • Sealing materials conform to FDA 177.2600.



Parameter of Electric Actuator:

  • Protection degree: IP-67.
  • Environment temperature: -2掳C ~ 60掳C (other temperature can be custom made).
  • Installment angle: any angle.
  • Material of body: aluminum alloy diecasting.
  • Features optional: torque than the protection, heated dehumidifier, over-heat protection.
  • Hand operation: by detachable hexagon.
  • Spacing: electrically: completely close and open limit switch.
  • Manually: link stopper.
  • Input signal: 4-20mA.DC, 1-5V.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Output signal: 4-20m A.DC, 0-10V.DC (other signals can be chose before leaving factory).
  • Voltage: AC.24V 110V 220V 380V DC.24V Frequency: 50HZ,60 HZ.
  • Type of control: on-off indicator light, passive contact point, opening position, intelligent control
  • Switching time(S): 9,10,13,15,20,25,30,50,60,1000.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage, Biotech, Cosmetics etc.


Electric Actuated Sanitary Tri-Clamp Butterfly Valves Specification

PRODUCT Electric Actuated Sanitary Tri-Clamped Butterfly Valve
DIMENSION 1/2″ ~ 8″
MATERIAL T304, T316L, 1.4301, 1.4404聽etc.
STANDARD 3A, DIN, SMS, ISO, ISO, DS etc.
SEALING GASKET EPDM, NBR, FPM, Silicone etc.
TEMPERATURE -2掳C / 28.4掳F up to +60掳C/ +140掳F
PRESSURE 0.2 – 10bar
CONNECTION Tri-clover Ends
OPERATION Electric actuator
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order *Part Name*Size

*Material

*Quantity

*Standard

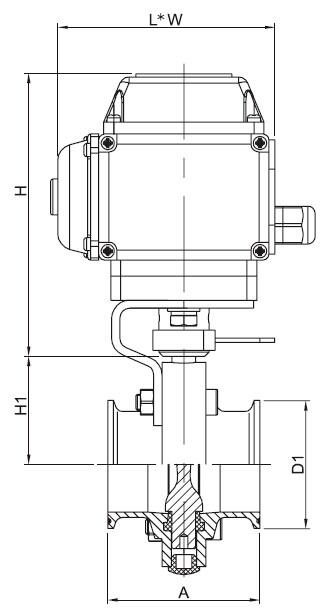

Electric Actuated Tri-Clamped Butterfly Valve -DIN聽Series

Dimension of Electric Actuated Tri-Clamp Butterfly Valve -DIN聽Series

SIZE

A

H

H1

D1

L*W

DN10

68

141

41

34

162*115

DN15

68

141

41

34

162*115

DN20

68

141

41

34

162*115

DN25

68

141

41

50.5

162*115

DN32

68

141

41

50.5

162*115

DN40

68

141

41

50.5

162*115

DN50

76

141

55

64

162*115

DN65

80

141

64

91

162*115

DN80

86

141

71

106

162*115

DN100

90

141

81

119

208*122

DN125

118

153

116

144.5

208*122

DN125

118

153

116

155

208*122

DN150

140

153

136

167

208*122

DN150

140

153

136

183

208*122

DN200

158

153

171

217.4

208*122

DN200

158

153

171

233.5

208*122

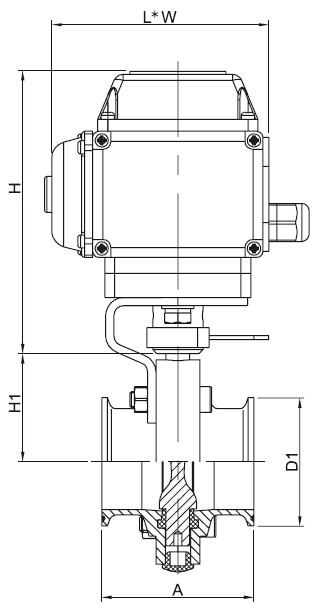

Electric Actuated Tri-Clamped Butterfly Valve -3A, SMS, ISO, DS聽Series

Dimension of Electric Actuated Tri-Clamp Butterfly Valve -3A, SMS, ISO, DS聽Series

SIZE

A

H

H1

D1

L*W

1/2″

68

141

41

25.4

162*115

3/4″

68

141

41

25.4

162*115

1″

68

141

41

50.5

162*115

11/4″

68

141

41

50.5

162*115

11/2″

68

141

45

50.5

162*115

45

76

141

47

64

162*115

48

76

141

49

64

162*115

2″

76

141

53

64

162*115

57

76

141

55

77.5

162*115

21/2″

80

141

59

77.5

162*115

3″

80

141

66

91

162*115

3.5″

84

141

71

106

162*115

4″

90

141

79

119

162*115

108

90

153

81

119

162*115

114

90

153

81

130

162*115

5″

118

153

116

144.5

208*122

133

118

153

116

155

208*122

6″

140

153

136

167

208*122

159

140

153

136

183

208*122

168.3

140

153

136

183

208*122

8″

150

153

171

217.4

208*122

219

150

153

171

233.5

208*122

*All dimension are in mm except specified.

* For more information about electric actuated sanitary tri-clamp butterfly valves, please contact us when you feel free.
