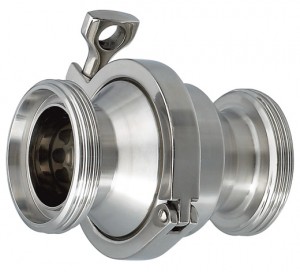

Sanitary Thread Check Valve is male threaded connection sanitary check valve. Our sanitary thread check valve is suitable with viscous liquids, the size is up to 6″ and the working pressure is a little higher than butt weld or tri clamp check valve. Made in stainless steel AISI 316L or 304, with good surface finish (25 Ra or higher polished body and internals), it is ideal for food, pharmaceutical, dairy and other sanitary industries.




Specification of Sanitary Thread Check Valve

sanitary thread check valve

Dimension of  Male/Female Threaded Check Valve – DIN Series

SIZE H D11    2 D t G(RD)
DN15

DN20

DN25

108

112

116

18   19

22   23

28   29

72

72

72

1.5

1.5

1.5

33.5*1/8

43.5*1/6

51.5*1/6

DN32

DN40

DN50

116

116

121

34   35

40   41

52   53

87

87

100

1.5

1.5

1.5

57.5*1/6

64.5*1/6

77.5*1/6

DN65

DN80

DN100

153

159

179

70   –

85   –

104  –

115

128

164

2.0

2.0

2.0

94.5*1/6

109.3*1/4

129.3*1/4



sanitary thread check valve

Dimension of  Male/Female Threaded check valve – SMS Series

SIZE H D D1 t G(RD)
3/4”

1”

1 1/4”

106

110

112

72

72

87

19

25.4

31.8

1.5

1.5

1.5

33.5*1/8

39.5*1/6

59.5*1/6

1 1/2”

2”

2 1/2”

112

119

141

87

100

115

38.1

50.8

63.5

1.5

1.5

2.0

69.5*1/6

84.5*1/6

97.3*1/6

3”

3 1/2”

4”

155

161

173

128

128

164

76.2

89

101.6

2.0

2.0

2.0

104.3*1/6

124.3*1/4

131.3*1/4



sanitary thread check valve

Dimension of Male/Female Threaded check valve – 3A Series

SIZE H D1 t G
1”

1 1/4”

1 1/2”

108

113

113

25.4

31.8

38.1

1.65

1.65

1.65

37.13*1/8 Acme

45.9*1/8 Acme

50.65*1/8 Acme

2”

2 1/2”

3”

126

141

152

50.8

63.5

76.2

1.65

1.65

1.65

64.1*1/8 Acme

77.6*1/8 Acme

91.1*1/8 Acme

4” 167 101.6 2.1 119.25*1/6/ Acme

*For one weld one thread(male) check valve, please contact us for details.
