Sanitary Butterfly type ball Valve is a new design sanitary ball valve. Its shape likes butterfly valve type, but the closing-opening part is a ball which is rotary to control the valve opening and closing. Sanitary butterfly ball valve is made in stainless steel 1.4301, 1.4404 or T316L, T304 ete. We are ability to provides butterfly type ball valve with tri-clamp, welded, threaded connection etc, and operation can be manual, air operated, electric operated etc. Wellgreen sanitary offers fully line of sanitary valves for  food processing, beverages, fruit juices, wine, biopharmaceutical etc.   Valve types:

  •      Manual Butterfly type Ball Valve
  •      Pneumatic Butterfly type Ball Valve
  •      Electric Butterfly type Ball Valve

    Strength:

  • Stainless steel T316L, T304, 1.4301, 1.4404 or specified.
  • Small fluid resistance and drainable.
  • Simple and compact structure, light weight, strong and reliable design.
  • Low-torque, 90° rotation, facilitate of remote controlling.
  • Variety connection of tri-clamp, welded, threaded etc.
  • Surface finishing: External surface sand blasting, Internal surface Ra 0.8?m or on request.
  • Operation of manual, air, electric actuator etc available.
  • Sealing materials complies with FDA 177.2600.
  • Standard of 3A,DIN,SMS,RJT etc.

    Application:     Applied to processing control and piping system, especially for brewery and winery fermentation tank etc.




Sanitary Butterfly type Ball Valves Specification

PRODUCT Sanitary Butterfly type Ball Valve
DIMENSION 1/2″ ~ 4″
MATERIAL T304, T316L, 1.4301, 1.4404 etc.
STANDARD 3A,DIN,SMS,ISO,IDF,BPE,RJT,DS etc.
SEALING GASKET PTFE, EPDM, FPM, SILICONE etc.
TEMPERATURE -30°C / -22°F up to +150°C/ +302°F
Pressure 0-10bar
Operation Manual, Pneumatic, Electric
APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage, Biotech, Cosmetics etc.

How to order *Part Name*Size*Material *Quantity *Standard

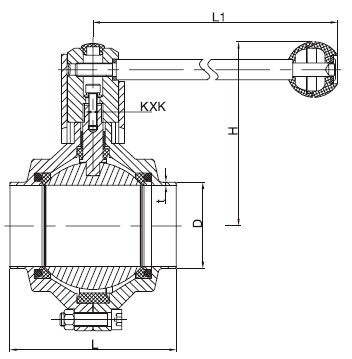

Sanitary Welded butterfly-type ball valve -DIN Series

Dimension of Sanitary Welded butterfly-type ball valve -DIN Series

Size

D1

D2

L

L1

H

t

KxK

DN15

18

19

72

126

86

1.5

8*8

DN20

22

23

72

126

86

1.5

8*8

DN25

28

29

72

126

90

1.5

8*8

DN32

34

35

80

126

92

1.5

8*8

DN40

40

41

84

133

104

1.5

10*10

DN50

52

53

98

144

113

1.5

10*10

DN65

70

120

160

131

2.0

11*11

DN80

85

140

220

144

2.0

11*11

DN100

104

164

284

161

2.0

14*14



Dimension of Sanitary Welded Butterfly-type Ball Valve -3A,SMS,ISO,IDF,DS Series

Size

D

L

L1

H

t

KxK

3/4”

19

72

126

86

1.5

8*8

1”

25.4

72

126

90

1.5

8*8

1 1/4”

31.8

80

126

92

1.5

8*8

1 1/2”

38

84

133

104

1.5

10*10

2

50.8

98

144

113

1.5

10*10

2 1/2”

63.5

116

160

128

2.0

11*11

3”

76.2

132

220

138

2.0

11*11

3 1/2”

89

140

220

144

2.0

11*11

4”

101.6

164

284

161

2.0

14*14

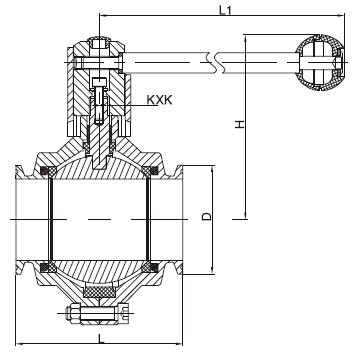

Sanitary Clamped Butterfly-type Ball Valve -DIN Series

Dimension of Sanitary Clamped Butterfly-type Ball Valve -DIN Series

Size

D

L

L1

H

t

KxK

DN15

34

72

126

86

1.5

8*8

DN20

34

72

126

86

1.5

8*8

DN25

50.5

72

126

90

1.5

8*8

DN32

50.5

80

126

92

1.5

8*8

DN40

50.5

84

133

104

1.5

10*10

DN50

64

98

144

113

1.5

10*10

DN65

91

120

160

131

2.0

11*11

DN80

106

140

220

144

2.0

11*11

DN100

119

164

284

161

2.0

14*14



Dimension of Sanitary Clamped Butterfly-type Ball Valve-3A,SMS,ISO,IDF,DS Series

Size

D

L

L1

H

KxK

3/4”

25.4

72

126

86

8*8

1”

50.5

72

126

90

8*8

1 1/4”

50.5

80

126

92

8*8

1 1/2”

50.5

84

133

104

10*10

2

64

98

144

113

10*10

2 1/2”

77.5

116

160

128

11*11

3”

91

132

220

138

11*11

3 1/2”

106

140

220

144

11*11

4”

119

164

284

161

14*14

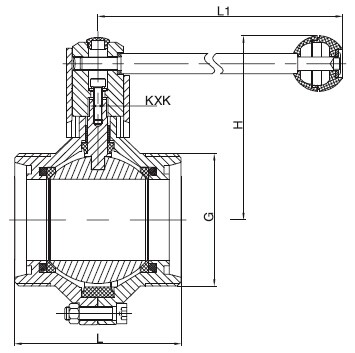

Sanitary Threaded Butterfly-type Ball Valve -DIN Series

Dimension of Sanitary Threaded Butterfly-type Ball Valve -DIN Series

Size

G

L

L1

H

KxK

DN15

Rd33.5*1/8

72

126

86

8*8

DN20

Rd43.5*1/6

72

126

86

8*8

DN25

Rd51.5*1/6

72

126

90

8*8

DN32

Rd57.5*1/6

80

126

92

8*8

DN40

Rd64.5*1/6

84

133

104

10*10

DN50

Rd77.5*1/6

98

144

113

10*10

DN65

Rd94.5*1/6

120

160

131

11*11

DN80

Rd109.3*1/4

140

220

144

11*11

DN100

Rd129.3*1/4

164

284

161

14*14

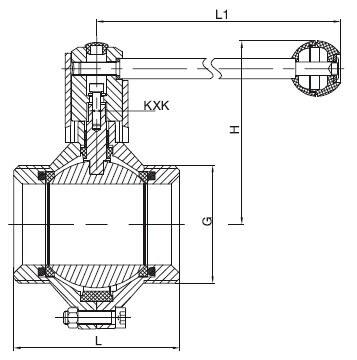

Sanitary Threaded Butterfly-type Ball Valve -3A Series

Dimension of Sanitary Threaded Butterfly-type Ball Valve -3A Series

Size

D

L

L1

H

KxK

1”

37.1*1/8Acme

72

126

90

8*8

1 1/4”

45.9*1/8Acme

80

126

92

8*8

1 1/2”

50.6*1/8Acme

84

133

104

10*10

2

64.1*1/8Acme

98

144

113

10*10

2 1/2”

77.6*1/8Acme

116

160

128

11*11

3”

91.1*1/8Acme

132

220

138

11*11

4”

119.2*1/6Acme

164

284

161

14*14

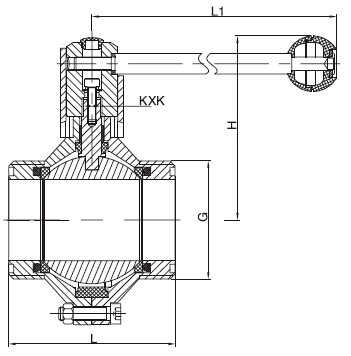

Sanitary Threaded Butterfly-type Ball Valve -SMS Series

Dimension of Sanitary Threaded Butterfly-type Ball Valve -SMS Series

Size

D

L

L1

H

KxK

3/4”

Rd33.5*1/8

72

126

86

8*8

1”

Rd39.5*1/6

72

126

90

8*8

1 1/4”

Rd47.5*1/6

80

126

92

8*8

1 1/2”

Rd59.5*1/6

84

133

104

10*10

2

Rd69.5*1/6

98

144

113

10*10

2 1/2”

Rd84.5*1/6

116

160

128

11*11

3”

Rd97.5*1/6

132

220

138

11*11

3 1/2”

Rd104.3*1/6

140

220

144

11*11

4”(S)

Rd124.3*1/4

164

284

161

14*14

4”(L)

Rd131.3*1/6

164

284

161

14*14
